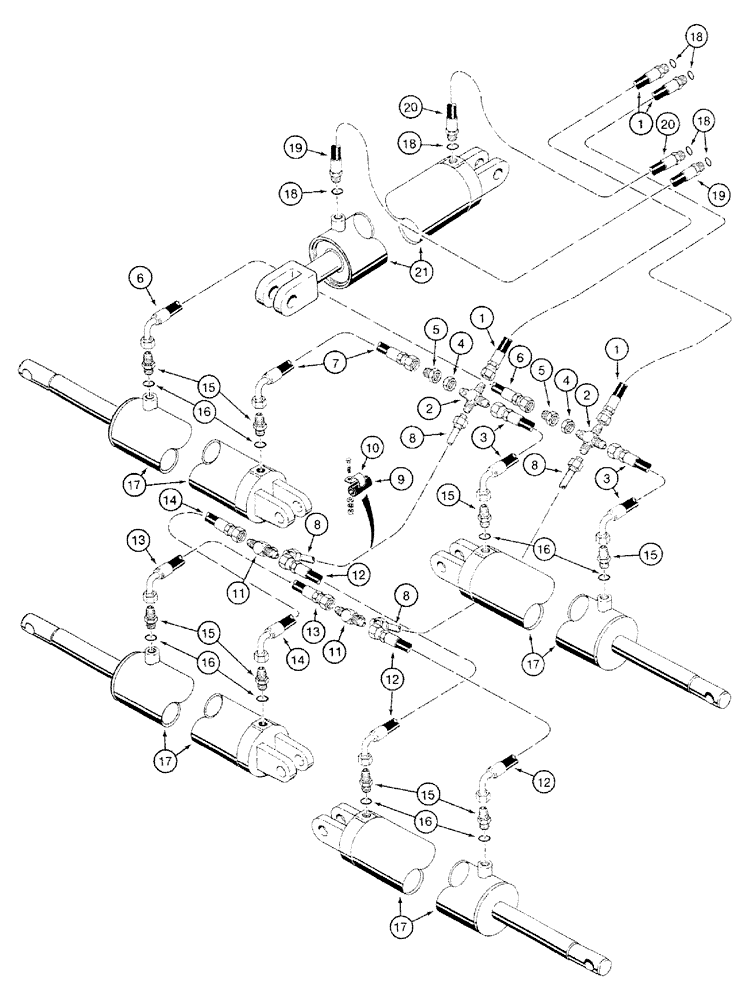

Запчасти Case IH 485 (8-01) - HYDRAULIC SYSTEM, MODELS WITH GLAND TYPE CYLINDERS, WITHOUT DIVERSION VALVE (08) - HYDRAULICS

1

953468R91

HOSE

- 122 inch, supply to wing cylinder cross

2шт.

2

532321R1

CROSS

- hydraulic, to wing cylinders

2шт.

3

60233C1

HOSE

- 54 inch, to right-hand front wing cylinder

2шт.

4

218-345

TUBE NUT,37 Degree, 7/8"-14, Type B

NUT - hex, special, 5/8 inch

2шт.

5

218-793

REDUCER,37 Degree, 5/8" x 1/4" Tube

- 5/8 x 3/8 inch

2шт.

6

100850C1

HOSE,0.25" ID x 74.00", SAE CLASS7 D-16

- to rod end of left-hand front wing cylinder

1шт.

7

60232C1

HOSE

- 34 inch, to closed end of left-hand front wing cylinder

1шт.

8

62017C1

TUBE

- hydraulic, to rear wing cylinders

2шт.

9

NSS

NOT SOLD SEPARAT

HOSE - 3/8 inch ID x 1-1/2 inch split, tube, Serial Range: protection-clamp

6шт.

10

529080R1

CLAMP

- tube

6шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

- flat, 17/32 x 1 x 1/16 inch

6шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

11

218-593

TEE,9/16"-18, 37 Degree

- 3/8 inch tube

2шт.

12

147878C1

HOSE

- 64 inch, to right-hand rear wing cylinder

2шт.

13

62418C1

HOSE ASSY.

HOSE - 84 inch, to rod end of left-hand rear wing cylinder

1шт.

14

61909C1

HOSE,0.25" ID x 44.00", Class 7

- To closed end of LH rear wing cylinder 0.25" ID x 44.00", Class 7

1шт.

435437A1

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, , Nylon 3/16" x 7 1/4"

4шт.

15

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - short, 9/16-18 flared x 9/16-18 inch O-ring boss, Incl. Ref 16

8шт.

17

REF

INSTRUCTION

CYLINDER ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, wing

4шт.

For cylinder and components, see Figures 8-06 through 8-08

1шт.

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADAPTER - 3/4-16 O-ring boss x 7/8-14 inch female

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, If used

1шт.

18

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

6шт.

19

139655C2

HYDRAULIC HOSE

HOSE - 155 inch, to rod end of lift cylinder (Replaces 653348R91)

1шт.

Also Order 218-5281 Elbow and 218-5354 Connector

1шт.

20

121360C1

HOSE,0.50" ID x 135.00", SAE 100R1

- to closed end of lift cylinder 0.50" ID x 135.00", SAE 100R1

1шт.

21

REF

INSTRUCTION

CYLINDER ASSEMBLY - transport lift

1шт.

For cylinder and components, see Figures 8-09 through 8-13

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
