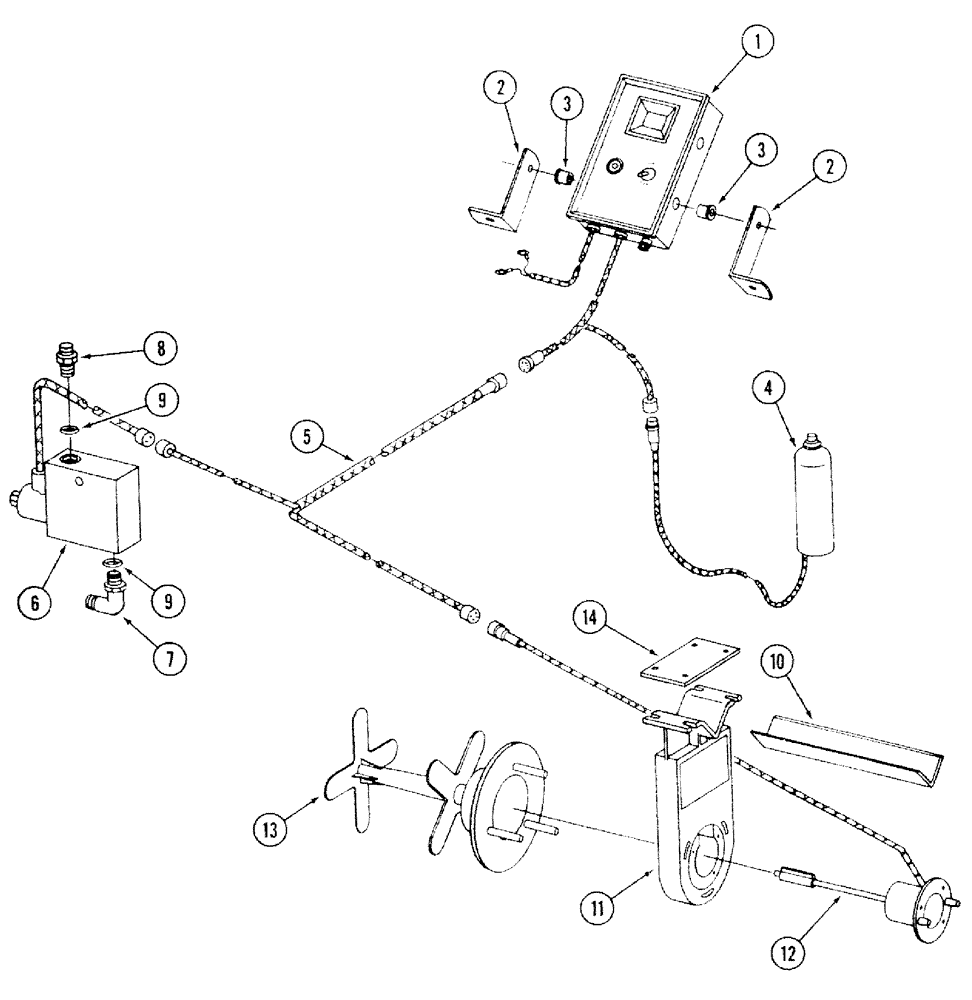

Запчасти Case IH 485 (4-01) - MEMORY DEPTH CONTROL (04) - ELECTRICAL SYSTEMS

1

139686C1

PANEL

MONITOR - console

1шт.

2

139922C1

BRACKET

- mounting

2шт.

326-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

4шт.

3

139923C1

NUT

- expansion

4шт.

4

139693C1

HANDLE

- switch

1шт.

5

131394C1

HARNESS

- implement

1шт.

6

139523C1

VALVE

- solenoid, component parts not serviced separately

1шт.

7

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flared x O-ring boss

1шт.

8

218-435

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC

CONNECTOR - straight, 5/8 inch

1шт.

9

86637738

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

- 5/8 inch OD tube

3шт.

10

139713C1

ANGLE

BRACKET - support

1шт.

11

139711C1

BRACKET

- sensor mounting

1шт.

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

4шт.

147526C1

NUT

- flange lock special, 1/4 inch NC

4шт.

12

139688C1

POTENTIOMETER

Sensor, Depth Control

1шт.

13

139690C1

INSERT

- sensor

1шт.

14

139867C1

LARGE PLATE

PLATE - mounting

1шт.

280-2448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

SCREW - hex flange tapping, No. 8-18 x 1/2 inch

6шт.

440-1068

SCREW,Cross Pan Hd, #6-32 x 1/2"

- pan head slotted, No.6 x 1/2 inch

3шт.

138526

LOCK WASHER

- internal lock, No. 6

3шт.

NSS

NOT SOLD SEPARAT

TAPE - harness, 36 inch long, cut from M20460 bulk tape, see below

1шт.

M20460

TAPE

- bulk roll, 3/4 inch wide x 66 ft long

1шт.
