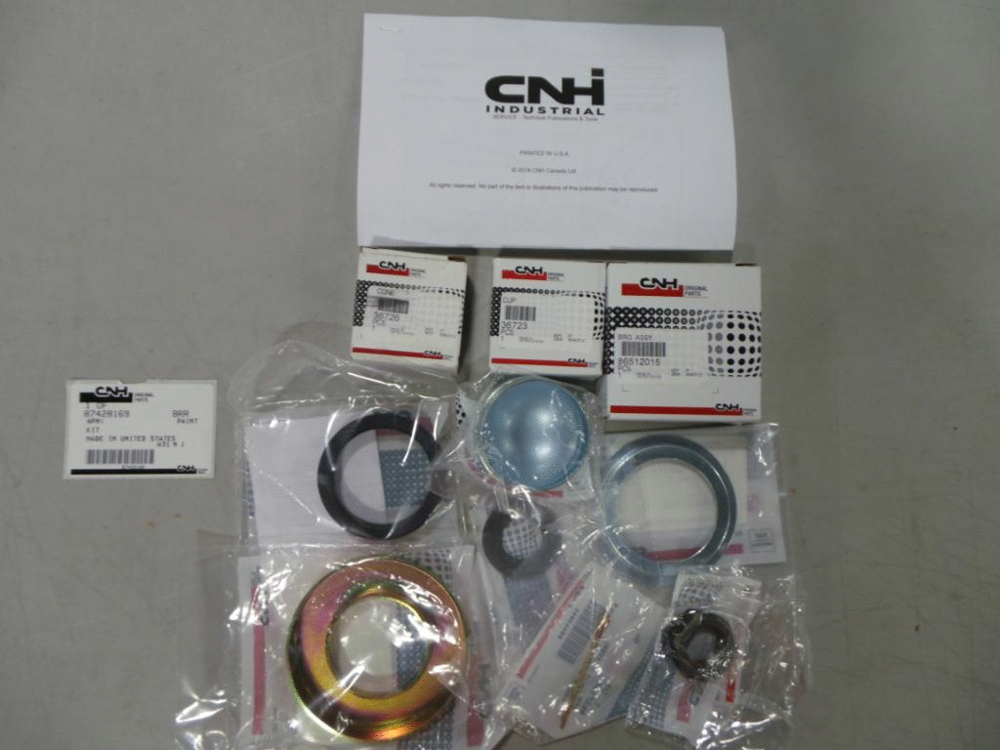

Запчасти Case IH 485 (9-20) - PACKAGE WHEEL HUB BEARING, 6 BOLT HEAVY (09) - CHASSIS/ATTACHMENTS

1

87428169

KIT

Includes 2 - 12

1шт.

2

87428184

INSTRUCTION

1шт.

3

249128

HUB CAP

1шт.

4

36723

BEARING CUP,59.16mm OD x 11.81mm W

1шт.

5

36726

BEARING CONE,31.75mm ID x 16.76mm W

1шт.

6

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

1шт.

7

87428178

SLEEVE

1шт.

8

87428177

SLEEVE

1шт.

9

87428180

SPECIAL MAT. SEAL

1шт.

10

86512015

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

1шт.

11

70120D

SLOTTED NUT,7/8"-14

1шт.

12

86523955

COTTER PIN,1/8" x 2"

1шт.
