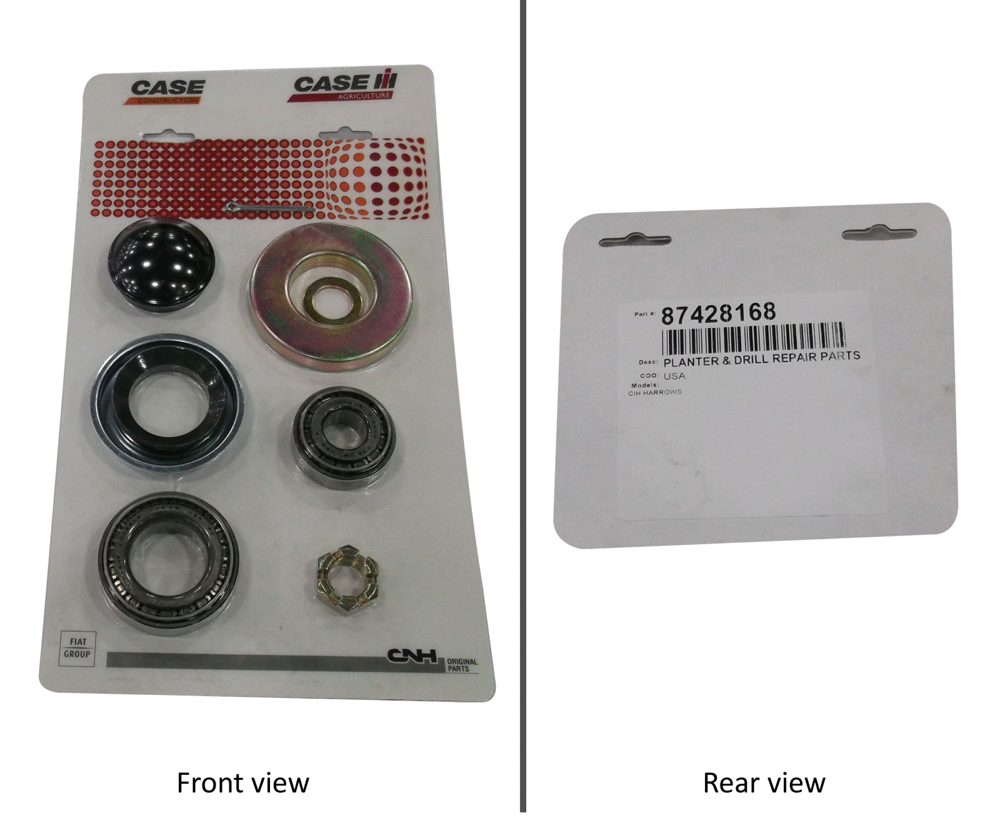

Запчасти Case IH 485 (9-19) - PACKAGE WHEEL HUB BEARING 6 BOLT LIGHT (09) - CHASSIS/ATTACHMENTS

1

87428168

KIT

Includes 2 - 12

1шт.

2

87428183

INSTRUCTION

1шт.

3

87428174

SLEEVE

1шт.

4

87428173

SLEEVE

1шт.

5

86516467

BEARING CUP,65.08mm OD x 13.97mm W

1шт.

6

84325902

SEAL

1шт.

7

80708

COTTER PIN,1/8" x 1 1/2"

1шт.

8

69442D

NUT

1шт.

9

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1шт.

10

276554

BEARING ASSY,21.43mm ID x 50.01mm OD x 17.53mm W

1шт.

11

663908R1

CAP

1шт.

12

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

1шт.
