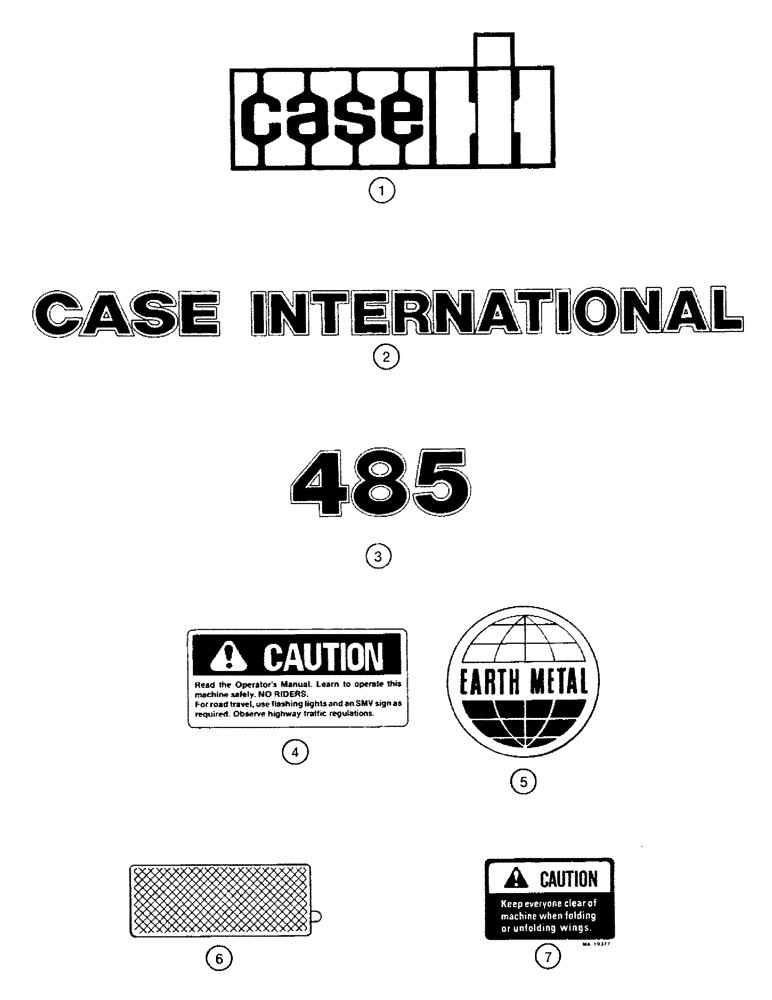

Запчасти Case IH 485 (9-18) - DECALS, CASE IH (09) - CHASSIS/ATTACHMENTS

1

95730C1

DECAL

- CaseIH trademark, 32 x 104 mm, if used

2шт.

1

95731C1

DECAL

- CaseIH trademark, 64 x 156 mm, if used

2шт.

1

91401C1

DECAL

- CaseIH trademark, 85 x 210 mm, if used

2шт.

1

95732C1

DECAL,Case IH Logo

- CaseIH trademark, 106 x 260 mm, if used

2шт.

1

192849A2

DECAL

- CaseIH trademark, 85 x 309 mm, if used

2шт.

2

1973420C1

DECAL

- CASE-INTERNATIONAL, 19/32 x 9-3/4 inch, for red background, if used

1шт.

2

1973422C1

DECAL

- Case International, for red background, 25 x 412 mm, if used

1шт.

2

1973422C1

DECAL

- CASE-INTERNATIONAL, 1 x 16-1/4 inch, for red background, if used

1шт.

2

1973423C1

DECAL

- CASE-INTERNATIONAL, 1-3/16 x 19-1/2 inch, for red background, if used

1шт.

2

1973426C1

DECAL

- Case International, for red background, 70 x 625 mm, if used, was 95818C1

1шт.

2

1973427C1

DECAL

- CASE-INTERNATIONAL, 1-31/32 x 32-15/32 inch, for red background, if used

1шт.

2

1973428C1

DECAL

- CASE-INTERNATIONAL, 2-23/64 x 39 inch, for red background, if used

1шт.

2

1973428C1

DECAL

- CASE-INTERNATIONAL, 2-23/64 x 39 inch, for red background, if used

1шт.

2

1978600C1

DECAL

- CASE-INTERNATIONAL, 1 x 16-13/32 inch, for black background, if used

1шт.

2

1978600C1

DECAL

- CASE-INTERNATIONAL, 1-3/8 x 23-11/16 inch, for black background, if used

1шт.

2

1978601C1

DECAL

- CASE-INTERNATIONAL, 1-3/8 x 23-11/16 inch, for black background, if used

1шт.

3

95861C1

DECAL

- model number, 485, 73 mm high, if used

1шт.

3

222009A1

DECAL

- model number, 485, 70 mm high, see item 3A for optional service kit

1шт.

3a

96012C1

DECAL

- model, two sets of numbers 0 through 9, 70 mm high, if used, not shown

1шт.

4

220321A1

WARNING DECAL

DECAL - Warning, read the operator's manual (Replaces 1254170C1)

1шт.

4a

220322A1

CAUTION DECAL

DECAL - caution, general information (French), Replaces 80593C1, not shown

1шт.

5

147782C1

DECAL

- Earth Metal

1шт.

6

1284365C2

REFLECTOR

- amber

1шт.

6

1284374C1

REFLECTOR,Reflector Red

- red

2шт.

7

59051C3

WARNING DECAL

DECAL - warning, keep clear

2шт.

7a

80597C3

CAUTION DECAL

DECAL - warning, keep clear (French), not shown

2шт.
