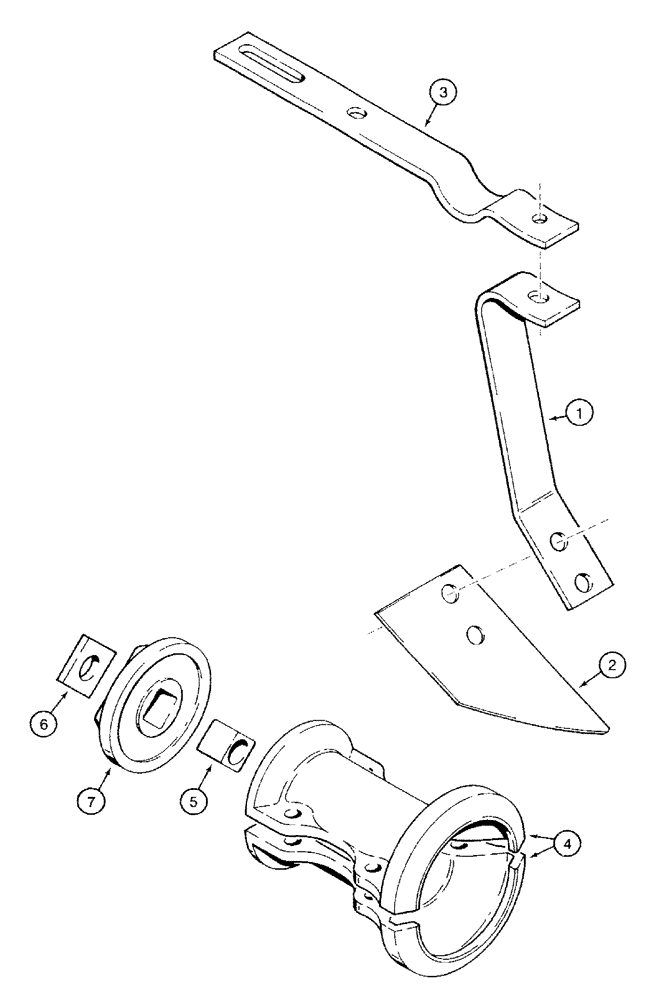

Запчасти Case IH 485 (9-12) - FURROW FILLER AND SCRAPER ATTACHMENT (09) - CHASSIS/ATTACHMENTS

1

121195C91

SCRAPER

ASSEMBLY - disc, left hand, not shown, Inc. REF 2 and Rivet

1шт.

1

121196C91

HALF BLADE

SCRAPER ASSEMBLY - disc, right hand, Inc. REF 2 and Rivet

1шт.

2

121118C2

BLADE

- scraper

1шт.

121233C1

RIVET,20mm OD x 29mm L

RIVET - blade retaining

2шт.

121258C1

BOLT,Spcl, Hex, 1/2" - 13 x 1.3", Type 5

BOLT - special, scraper retaining

2шт.

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

3

121224C1

SUPPORT

BRACKET - scraper

1шт.

111-539

CARRIAGE BOLT,Short NK, 1/2"-13 x 2", G5

BOLT - hex, 1/2 NC x 2 inch

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

4

100693C1

SPOOL

- furrow filler, one half, 7-1/2 inch long, if used

4шт.

4

129797C1

HUB

SPOOL - furrow filler, one half, 9-1/4 inch long, if used

4шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

5

100694C1

PLATE,SMALL SQUARE

BLOCK - driver

2шт.

6

100695C1

SPACER

- driver block

2шт.

7

596769R1

SQ HOLE WASHER

WASHER - furrow filler

2шт.

413-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 5

- hex, 7/8 NC x 3 inch

2шт.

492-11088

LOCK WASHER,7/8"

7/8"

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.
