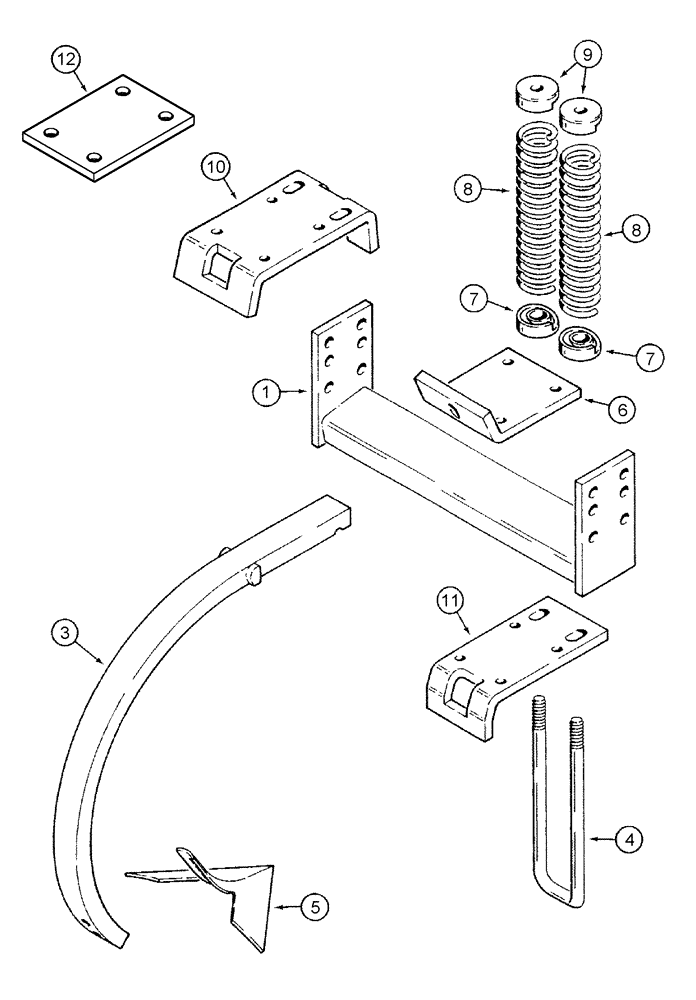

Запчасти Case IH 485 (9-10) - CENTER SHANK ATTACHMENT, 8 INCH SWEEP, HEAVY DUTY (09) - CHASSIS/ATTACHMENTS

1

112425C1

SUPPORT

- shank

1шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

4шт.

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

2

608341R1

SHANK

- center, no longer available, not shown, used with item 10 485985R1 clamping bracket, order 1284066C1 shank, 1284067C1 bracket, 1284009C1 U-bolt, 1256969C1 bar, (2) 582542R1 spacer, and 91156C1 tie bar for service

1шт.

3

1284066C1

SHANK

- center

1шт.

419-3832

PLOW BOLT,#3, 1/2" - 13 x 2", Gr 5

BOLT - plow, 1/2 NC x 2 inch, 2 used per shank

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, 2 used per shank 1/2"-13, G5

1шт.

4

485987R1

BOLT,3/4" - 10 x 13 1/2"

U-BOLT - bracket retaining, 1 used per bracket

1шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

5

1547105C1

SWEEP

8"

1шт.

6

485986R1

SUPPORT

BRACKET - transport, 1 used per shank

1шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

2шт.

86729275

LOCK WASHER,5/8 0.634 CST ZND

WASHER, LOCK, 5/8"

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

7

608349R2

RETAINER

SEAT - spring, lower

2шт.

8

608347R1

SPRING

- center shank

2шт.

9

608348R1

RETAINER

SEAT - spring, upper

2шт.

10

485985R1

SUPPORT

BRACKET - clamp, if used

1шт.

11

1284067C1

SUPPORT

BRACKET - clamp, if used

1шт.

12

1284069C1

PLATE

- shank clamping

1шт.
