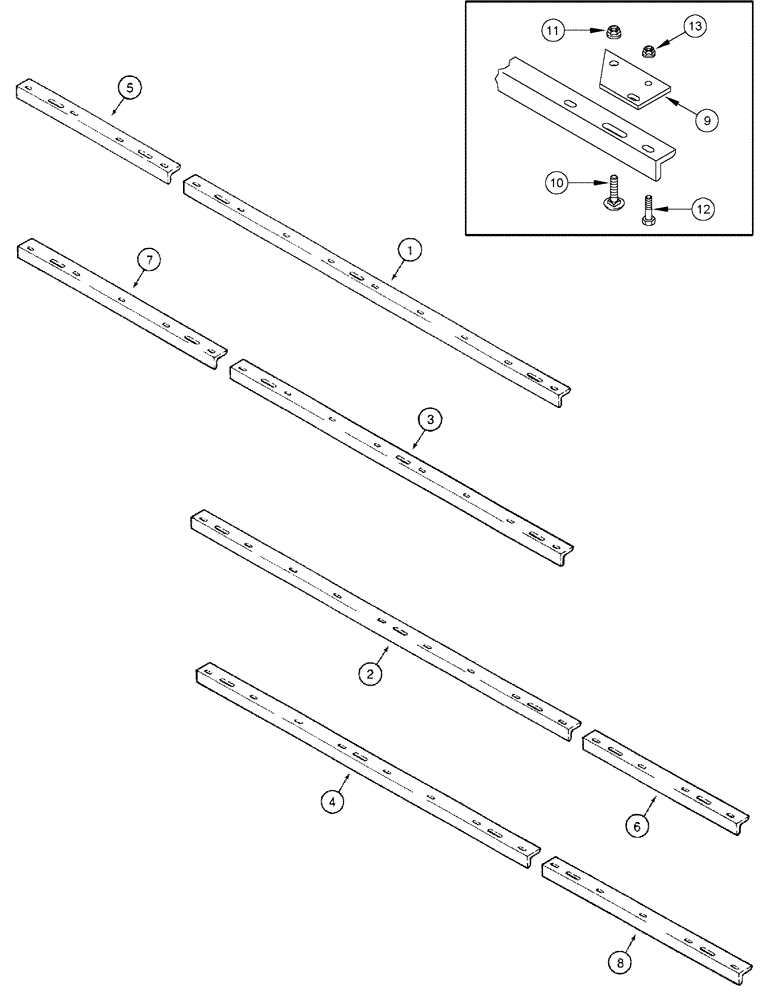

Запчасти Case IH 485 (9-08) - SCRAPER SUPPORT (09) - CHASSIS/ATTACHMENTS

1

121305C1

ANGLE

SUPPORT - main scraper, left front

1шт.

2

121306C1

ANGLE

SUPPORT - main scraper, right front

1шт.

3

121310C1

ANGLE

SUPPORT - main scraper, left rear

1шт.

4

121309C1

ANGLE

SUPPORT - main scraper, right rear

1шт.

5

121311C1

ANGLE

SUPPORT - wing scraper, left front (Disk Harrow coded A)

1шт.

5

121315C1

ANGLE

SUPPORT - wing scraper, left front (Disk Harrow coded B)

1шт.

5

121317C1

ANGLE

SUPPORT - wing scraper, left front (Disk Harrow coded C)

1шт.

6

121312C1

ANGLE

SUPPORT - wing scraper, right front (Disk Harrow coded A)

1шт.

6

121316C1

ANGLE

SUPPORT - wing scraper, right front (Disk Harrow coded B)

1шт.

6

121318C1

ANGLE

SUPPORT - wing scraper, right front (Disk Harrow coded C)

1шт.

7

121308C1

ANGLE

SUPPORT - wing scraper, left rear (Disk Harrow coded A)

1шт.

7

121314C1

ANGLE

SUPPORT - wing scraper, left rear (Disk Harrow coded B)

1шт.

7

121312C1

ANGLE

SUPPORT - wing scraper, left rear (Disk Harrow coded C)

1шт.

8

121307C1

ANGLE

SUPPORT - wing scraper, right rear (Disk Harrow coded A)

1шт.

8

121313C1

ANGLE

SUPPORT - wing scraper, right rear (Disk Harrow coded B)

1шт.

8

121311C1

ANGLE

SUPPORT - wing scraper, right rear (Disk Harrow coded C)

1шт.

9

1986108C1

BAR

- furrow filler scraper extension

2шт.

10

411-1036

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 2

BOLT - carriage, 5/8 NC x 2-1/4 inch

2шт.

11

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

2шт.

12

121258C1

BOLT,Spcl, Hex, 1/2" - 13 x 1.3", Type 5

BOLT - special, scraper retaining

2шт.

13

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.
