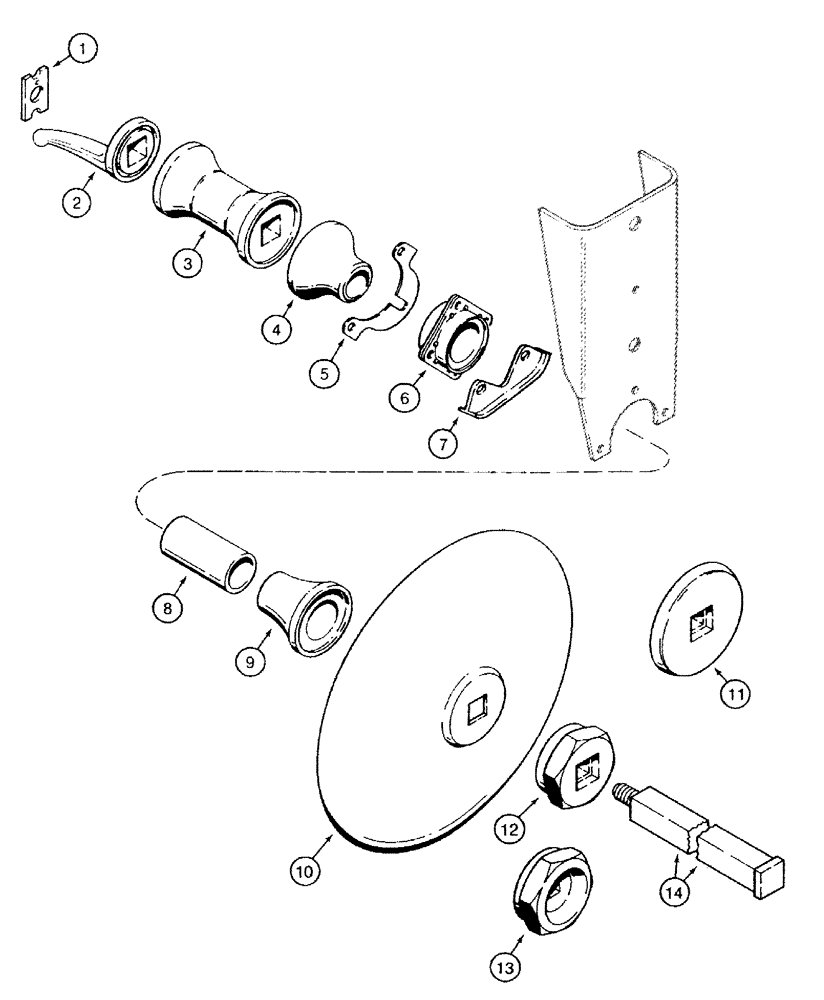

Запчасти Case IH 485 (9-07) - DISK AND GANG (09) - CHASSIS/ATTACHMENTS

1

489292R1

SUPPORT ASSY.

LOCK - arbor bolt nut

8шт.

2

57001C1

BLOCK DRIVER

WASHER - gang driver, arbor bolt

8шт.

3

481417R1

SPOOL

- spacing, 9 inch (Disk Harrow coded A)

28шт.

3

481417R1

SPOOL

- spacing, 9 inch (Disk Harrow coded B)

36шт.

3

481417R1

SPOOL

- spacing, 9 inch (Disk Harrow coded C)

24шт.

4

101190C1

SPOOL

- bearing, 77.5 mm long

20шт.

5

58922C1

SHIM

- bearing, 3/16 inch thick

1шт.

5

139623C1

SHIM

- bearing,3/32 inch thick

1шт.

6

ST491A

BALL BEARING,45mm ID

BEARING - ball, with grease fitting

20шт.

6

ST491A-IMPGV

BEARING

Value, 1-3/4 In. Round Bore Bearing Assy

20шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

60шт.

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 5/64 inch, If used

60шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

60шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

60шт.

7

129753C1

BEARING COVER

- bearing wear

2шт.

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

8

112410C1

TUBE

BUSHING - arbor bolt support, 220 mm long

20шт.

9

101191C1

SPOOL

- bearing, 103 mm long

20шт.

10

482973R1

DISC

- solid, 20 inch diameter x 4.5 mm thick

1шт.

10

482974R1

DISC

- notched, 20 inch diameter x 4.5 mm thick, not shown

1шт.

10

472218R1

DISC

- solid, 22 inch diameter x 4.5 mm thick

1шт.

10

P24425

DISC

- notched, 22 inch diameter x 4.5 mm thick, not shown

1шт.

10

482975R1

PLOW DISC

DISC - solid, 22 inch diameter x 5 mm thick

1шт.

10

482976R1

DISK HARROW

DISC - notched, 22 inch diameter x 5 mm thick, not shown

1шт.

10

543437R1

DISC

24CL3

1шт.

10

543438R1

DISC

24CL3, not shown

1шт.

11

468584R2

SQ HOLE WASHER

- bumper, front gangs

2шт.

12

596769R1

SQ HOLE WASHER

WASHER - arbor bolt head, was P4165A

4шт.

13

100696C1

WASHER

- furrow filler

2шт.

14

468582R2

BOLT (SPREADER),1 1/8"-7 x 76.7"

BOLT - arbor, main, 1-1/8 NC x 76-7/16 inch

4шт.

14

468607R1

BOLT,1 1/8"-7 x 39.8"

- arbor, wing, 1-1/8 NC x 39-13/16 inch, for Disk Harrow coded A

4шт.

14

471015R1

BOLT,1 1/8"-7 x 57.8"

- arbor, wing, 1-1/8 NC x 57-13/16 inch, for Disk Harrow coded B

4шт.

14

471016R1

BOLT,1 1/8"-7 x 30.6"

- arbor, wing, 1-1/8 NC x 30-5/8 inch, for Disk Harrow coded C

4шт.

192-33

LOCK WASHER,1 1/8"

1 1/8"

8шт.

425-1018

NUT,1 1/8"-7, G5

- hex, 1-1/8 inch NC

8шт.
