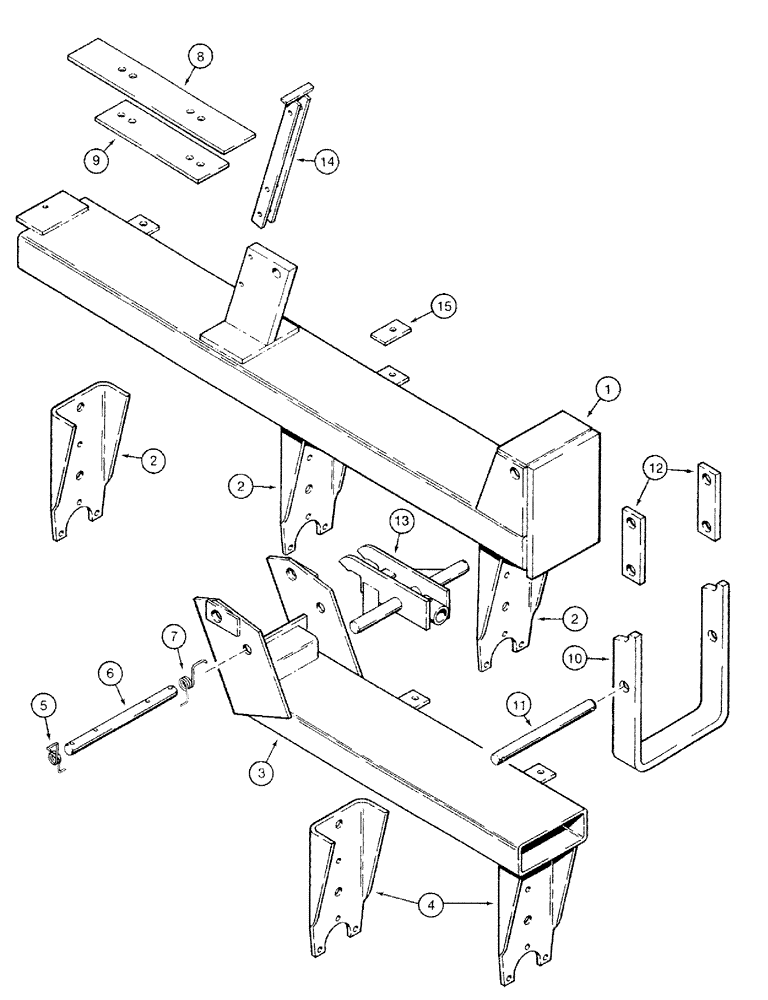

Запчасти Case IH 485 (9-06) - GANG FRAME AND SUPPORT (09) - CHASSIS/ATTACHMENTS

1

100704C1

BAR

FRAME - main gang, left front

1шт.

1

100705C1

BAR

FRAME - main gang, right front

1шт.

1

100707C1

BAR

FRAME - main gang, left rear

1шт.

1

100708C1

BAR

FRAME - main gang, right rear

1шт.

2

112770C1

SUPPORT ASSY.

SUPPORT - bearing, 3 in each main gang above

3шт.

3

100885C1

BAR

FRAME - wing gang, left front, for disc harrow coded A, Inc. REF 4

1шт.

3

100886C1

BAR

FRAME - wing gang, right front, for disc harrow coded A, Inc. REF 4

1шт.

3

100887C1

BAR

FRAME - wing gang, left rear, for disc harrow coded A, Inc. REF 4

1шт.

3

100888C1

BAR

FRAME - wing gang, right rear, for disc harrow coded A, Inc. REF 4

1шт.

3

100710C1

BAR

FRAME - wing gang, left front, for disc harrow coded B, Inc. REF 4

1шт.

3

100711C1

BAR

FRAME - wing gang, right front, for disc harrow coded B, Inc. REF 4

1шт.

3

100713C1

BAR

FRAME - wing gang, left rear, for disc harrow coded B, Inc. REF 4

1шт.

3

100714C1

BAR

FRAME - wing gang, right rear, for disc harrow coded B, Inc. REF 4

1шт.

3

112576C1

BAR

FRAME - wing gang, left front, for disc harrow coded C, Inc. REF 4

1шт.

3

112577C1

BAR

FRAME - wing gang, right front, for disc harrow coded C, Inc. REF 4

1шт.

3

112574C1

BAR

FRAME - wing gang, left rear, for disc harrow coded C, Inc. REF 4

1шт.

3

112575C1

BAR

FRAME - wing gang, right rear, for disc harrow coded C, Inc. REF 4

1шт.

4

112770C1

SUPPORT ASSY.

SUPPORT - bearing, 2 in each wing gang above

2шт.

5

60600C1

VALVE SPRING

SPRING - hinge latch, left-hand

4шт.

6

60209C1

PIN,31.8mm OD x 393.7mm L

- wing pivot

4шт.

432-2032

COTTER PIN,5/16" x 2"

Pin, Split (Cotter), 5/16" x 2"

16шт.

495-81203

WASHER,1 9/32" x 2" x .120"

- flat, 1-9/32 x 2 x 3/32 inch

8шт.

7

60601C1

VALVE SPRING

SPRING - hinge latch, right-hand

4шт.

8

62449C1

PLATE

- upper

2шт.

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

- hex, 3/4 NC x 6-1/2 inch

4шт.

231-42112

NUT,3/4"-10, GB

NUT - hex, lock, 3/4 inch NC

4шт.

9

62448C1

PLATE

- lower

2шт.

10

121273C1

BRACKET

- lockout

4шт.

11

60205C1

PIN

- lockout bracket

4шт.

432-2032

COTTER PIN,5/16" x 2"

Pin, Split (Cotter), 5/16" x 2"

8шт.

12

60207C2

BAR

- lockout

8шт.

13

100828C1

EXTENSION

- wing cylinder

4шт.

432-2032

COTTER PIN,5/16" x 2"

Pin, Split (Cotter), 5/16" x 2"

8шт.

439-51038

HEADED PIN,5/8" x 2 3/8"

PIN - clevis, 5/8 x 2-3/8 inch

4шт.

432-1216

COTTER PIN,3/16" x 1"

4шт.

14

100872C1

SUPPORT ASSY.

BRACKET - wing support

4шт.

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

15

121213C1

BAR

- scraper angle support

20шт.

598819R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

BOLT - special, 5/8 NC x 2-1/4 inch

20шт.

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

- special, flange lock, 5/8 inch NC

20шт.
