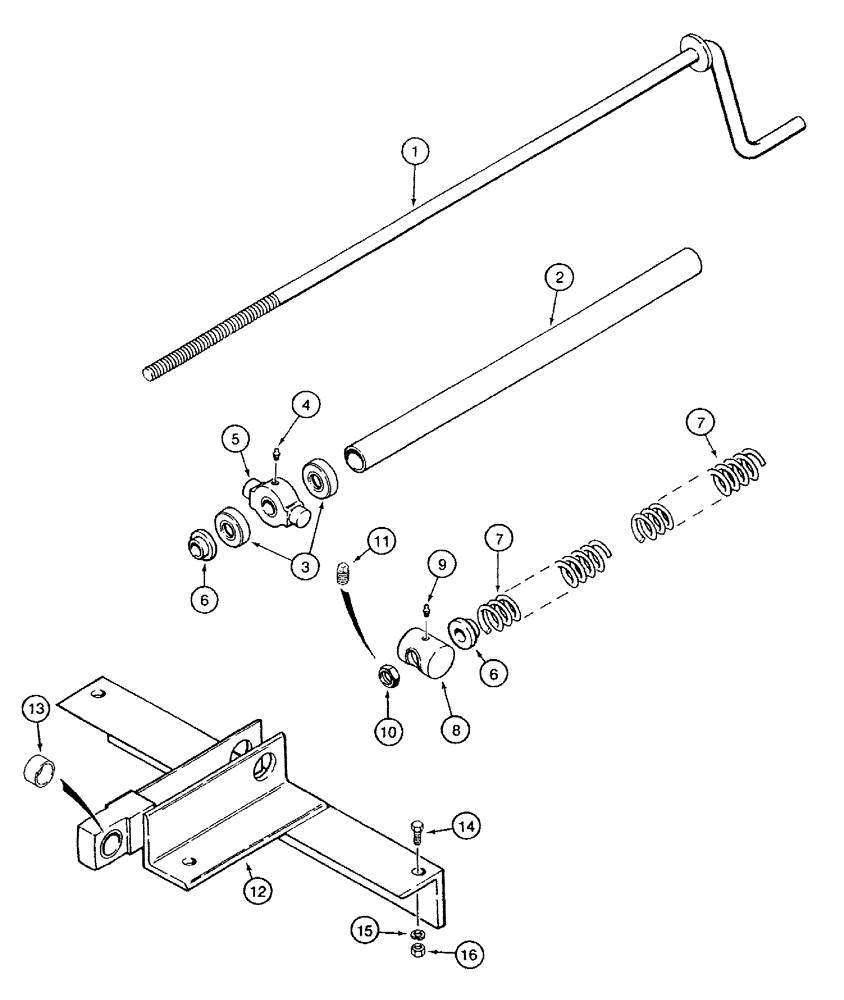

Запчасти Case IH 485 (9-03) - HITCH CRANK (09) - CHASSIS/ATTACHMENTS

1

60513C1

CRANK

- hitch

1шт.

485-1318

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

SCREW - set, square head, 5/16 NC x 1/2 inch

1шт.

2

56975C1

PIPE

INSERT - spring, pipe

1шт.

3

21076D

BEARING ASSY,31.9mm ID x 55.56mm OD x 16.13mm W

BEARING - crank

2шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

5

60134C2

TRUNNION

- hitch crank, at hitch frame

1шт.

6

60516C1

BUSHING,33.02mm ID x 42.93mm OD x 25.4mm L

SEAT - spring

2шт.

7

56973C1

SPRING

- hitch crank

2шт.

8

60147C3

LINK

SWIVEL - hitch crank

1шт.

9

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

10

60149C2

LOCK NUT

- hex, special, hitch crank

1шт.

11

485-1318

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

SCREW - set, square head, 5/16 NC x 1/2 inch

1шт.

12

100807C3

ANCHOR

ASSEMBLY - cylinder, Inc. REF 13

1шт.

13

112886C1

BUSHING

- tension

1шт.

14

426-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

- hex, 3/4 NC x 1-3/4 inch, Gr. 8

4шт.

15

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

16

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.
