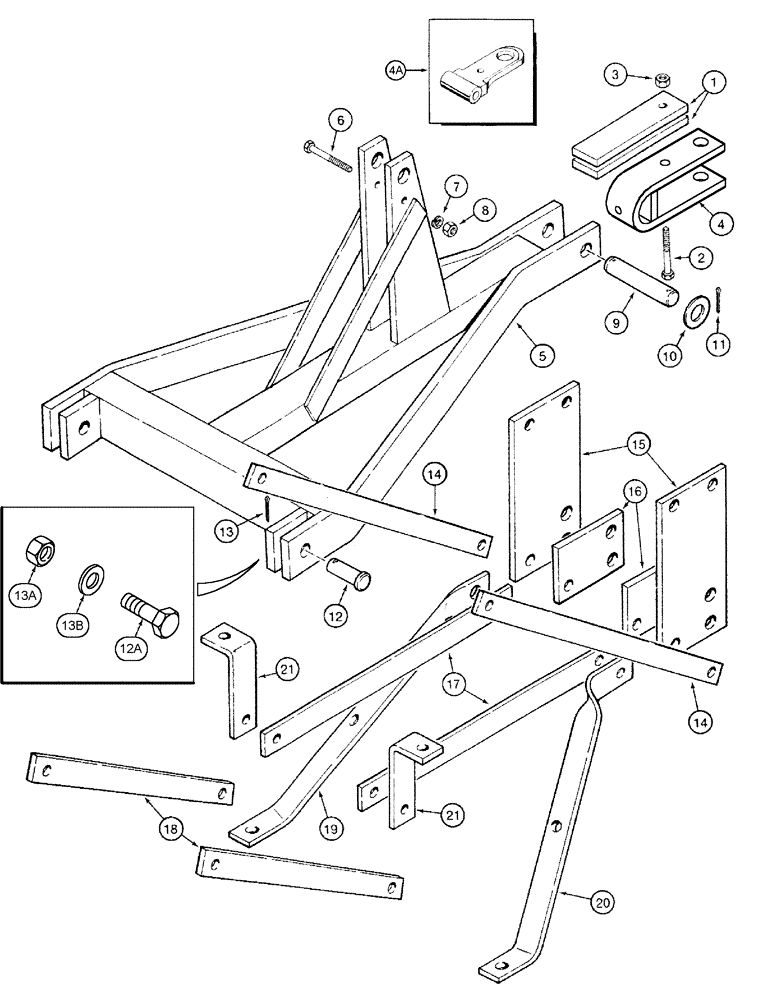

Запчасти Case IH 485 (9-02) - HITCH (09) - CHASSIS/ATTACHMENTS

1

540475R1

SPRING

PLATE - clevis

2шт.

2

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

3

608595R1

NUT

- hex, lock, 5/8 inch NC

1шт.

4

284489A1

CLEVIS

- hitch (If Used)

1шт.

4a

56892C5

TOW BAR

TONGUE - hitch (If Used)

1шт.

5

100816C3

TRAILER HITCH

FRAME - hitch

1шт.

6

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch

1шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

8

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex, 1/2 inch NC

1шт.

9

56970C1

PIN

- clevis to hitch frame

1шт.

10

495-81206

WASHER,32.54mm ID x 63.5mm OD x 3.4mm Thk

- 1-9/32 x 2-1/2 x 3/32 inch

2шт.

11

432-2032

COTTER PIN,5/16" x 2"

Pin, Split (Cotter), 5/16" x 2"

2шт.

12

427-20350

CLEVIS PIN,31.75mm OD x 88.9mm L

PIN - clevis, 1-1/4 x 3-1/2 inch (If Used)

2шт.

12a

252079A1

BOLT

- 1-1/2 NC x 5 (If Used)

2шт.

13

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

13a

28748R1

LOCK NUT,1 1/4"-7, G5

NUT - lock, 1-1/2 inch (If Used)

2шт.

13b

496-81017

WASHER,1 3/8" x 2 1/2" x .156", HDN

- flat, 1-3/8 x 2-1/2 x 1/8 (If Used)

4шт.

14

129735C1

BRACE

- hitch plate

2шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

15

100812C1

PLATE

- hitch

2шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

4шт.

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

16

129736C1

PLATE

- reinforcement

2шт.

17

112505C2

BAR

- hitch

2шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

2шт.

86729275

LOCK WASHER,5/8 0.634 CST ZND

WASHER, LOCK, 5/8"

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

18

112506C1

BAR

- hitch

2шт.

19

62456C2

SUPPORT

BRACE - diagonal, hitch, left-hand

1шт.

20

62457C2

SUPPORT

BRACE - diagonal, hitch, right-hand

1шт.

413-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

- hex, 3/4 NC x 3-3/4 inch

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

21

112504C1

SUPPORT

BRACKET - support

2шт.
