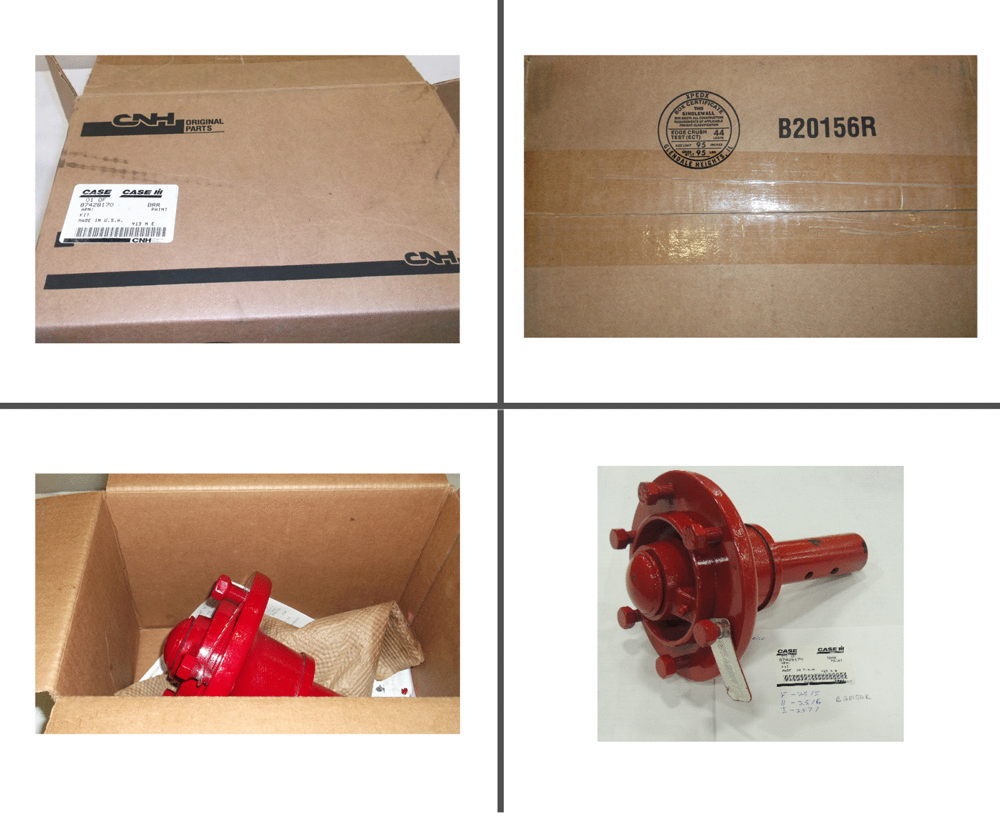

Запчасти Case IH 485 (09-05[01]) - KIT WHEEL HUB AND SPINDLE ASSY (09) - CHASSIS/ATTACHMENTS

1

87428170

KIT

Incl 2 - 14

1шт.

2

663908R1

CAP

1шт.

3

276554

BEARING ASSY,21.43mm ID x 50.01mm OD x 17.53mm W

1шт.

4

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

1шт.

5

87428174

SLEEVE

1шт.

6

87428173

SLEEVE

1шт.

7

84325902

SEAL

1шт.

8

87354344

BEARING ASSY,34.925 mm ID x 65.088 mm OD x 18.034 mm

1шт.

9

69442D

NUT

1шт.

10

80708

COTTER PIN,1/8" x 1 1/2"

1шт.

11

465493R2

HUB

1шт.

12

87414

LUBE NIPPLE,1/4" - 28

1шт.

13

478375R1

SPINDLE

1шт.

14

198056

WHEEL BOLT,1/2" - 20 x 1.031"

6шт.
