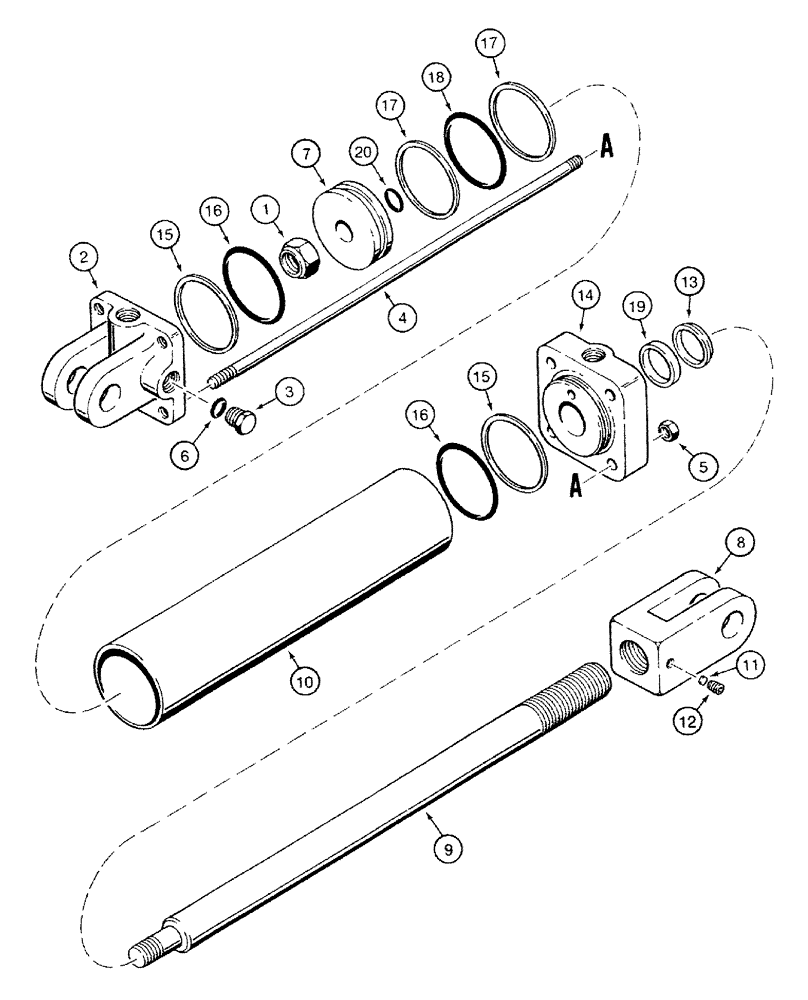

Запчасти Case IH 485 (8-12) - TRANSPORT LIFT CYLINDER, 84994C91, TIE ROD TYPE (08) - HYDRAULICS

84994C91

CYLINDER

ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, transport lift, Inc. REF 1 - 20, no longer available, order 1272149C1 cylinder for service, parts list figure 8-26

1шт.

No longer available, for service order 1272149C92 cylinder (parts list Figure 8-13)

1шт.

1272149C92R

REMAN-HYD CYLINDER

485 CASE IH DISK HARROW, ASSEMBLY, transport lift, Reman for New PN 84994C91

1шт.

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

1

232-46116

LOCK NUT,1"-14, GC

NUT, LOCK, 1"-14, GC

1шт.

2

92533C1

END

HEAD - cylinder, closed end

1шт.

3

214389

PLUG,3/4" - 16 ORB

1шт.

4

92541C1

TIE-ROD

ROD - cylinder retaining

4шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

6

NSS

NOT SOLD SEPARAT

O-RING - 1/2 inch OD

1шт.

7

92539C1

PISTON

- cylinder

1шт.

8

76704C1

FORK

CLEVIS - rod

1шт.

9

92540C1

ROD

- piston

1шт.

10

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

11

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

12

84-3386

SET SCREW,Hex Soc, 3/8"-24 x 3/8"

SCREW - set, hex socket, 3/8 NF x 3/8 inch

1шт.

13

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

14

92475C1

END

GLAND - cylinder, rod end

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - backup, gland and head O-rings

2шт.

16

NSS

NOT SOLD SEPARAT

O-RING - 3-1/16 x 3-3/8 inch, tube to gland and head

2шт.

17

NSS

NOT SOLD SEPARAT

RING - piston seal

2шт.

18

NSS

NOT SOLD SEPARAT

O-RING - 3-1/16 x 3-1/2 inch, piston

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - piston rod to piston, 1 x 1-1/16 inch

1шт.

79155C1

SEAL KIT

- seal and O-ring, Inc. REF 6, 13 and 15 - 20

1шт.
