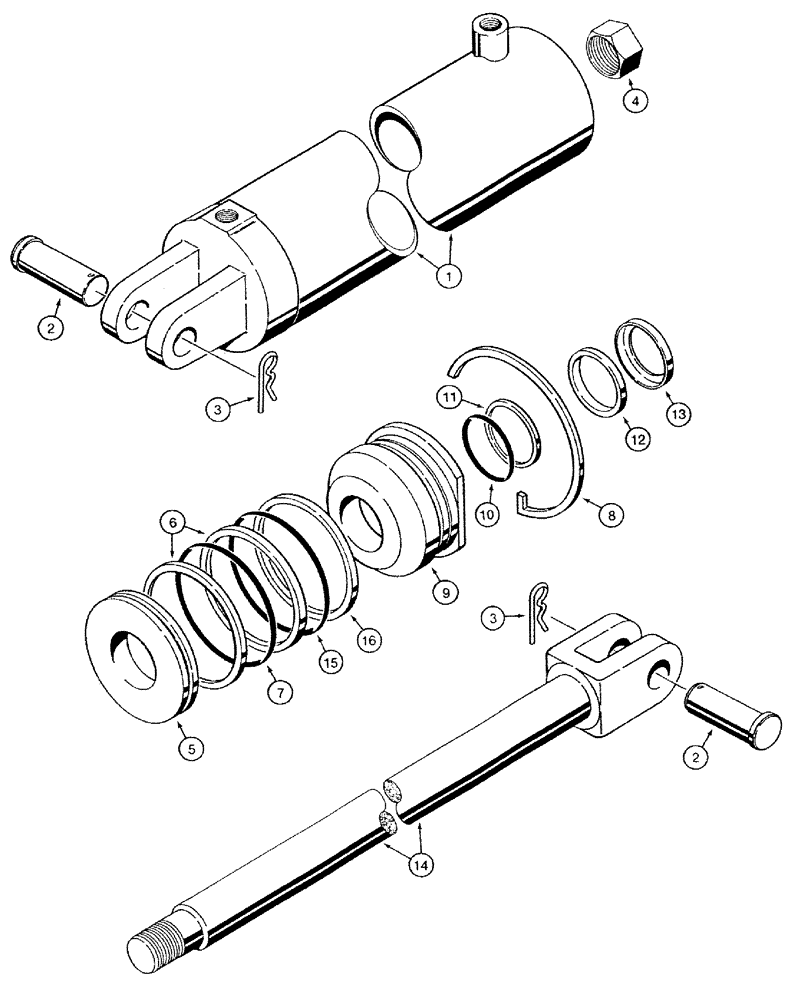

Запчасти Case IH 485 (8-09) - TRANSPORT LIFT CYLINDER, 61107C92, THREADED GLAND TYPE (08) - HYDRAULICS

61107C92

CYLINDER

ASSEMBLY - 3-1/2 inch ID X 16 inch stroke, Inc. REF 1 - 16

1шт.

No longer available, for service order 1272149C92 cylinder (parts list Figure 8-13), 28537R1 clevis pin, 132-313 cotter pin, (2) 1252129C1 adapters and (2) 237-6008 O-rings

1шт.

1272149C92R

REMAN-HYD CYLINDER

485 CASE IH DISK HARROW, ASSEMBLY , Reman for New PN 61107C92

1шт.

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

60909C1

PIN

- cylinder pivot

2шт.

3

1970957C1

SPRING

PIN - hair, cylinder pin retaining

2шт.

4

231-46114

LOCK NUT,7/8"-14, GB

NUT - hex, self-locking, 7/8 inch NC

1шт.

5

547724R1

PISTON

- cylinder

1шт.

6

375936R1

BACK-UP RING

RING - backup

2шт.

7

238-6338

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

Piston seal -338, 90 Duro, 3.100" ID x .210" Thk

1шт.

8

140600C1

RETAINING WIRE

RING - locking, gland

1шт.

9

60299C2

HEAD

GLAND - cylinder

1шт.

10

238-6325

O-RING,0.21" Thk x 1.475" ID, -325, Cl 6, 90 Duro

- 1-1/2 x 1-7/8 x 3/16 inch, rod

1шт.

11

403622R1

BACK-UP RING

RING - backup

1шт.

12

383770R1

WASHER

WIPER - piston rod

1шт.

13

383771R1

SEALING WASHER

RETAINER - wiper

1шт.

14

547742R1

ROD

- piston

1шт.

15

238-6236

O-RING,0.139" Thk x 3.234" ID, -236, Cl 6, 90 Duro

- 3-1/4 x 3-1/2 x 1/8 inch, gland

1шт.

16

404015R1

BACK-UP RING

- backup

1шт.

548392R92

SEAL KIT

KIT - cylinder repair, Inc. REF 4, 6 - 8, 10 - 13, 15 and 16

1шт.
