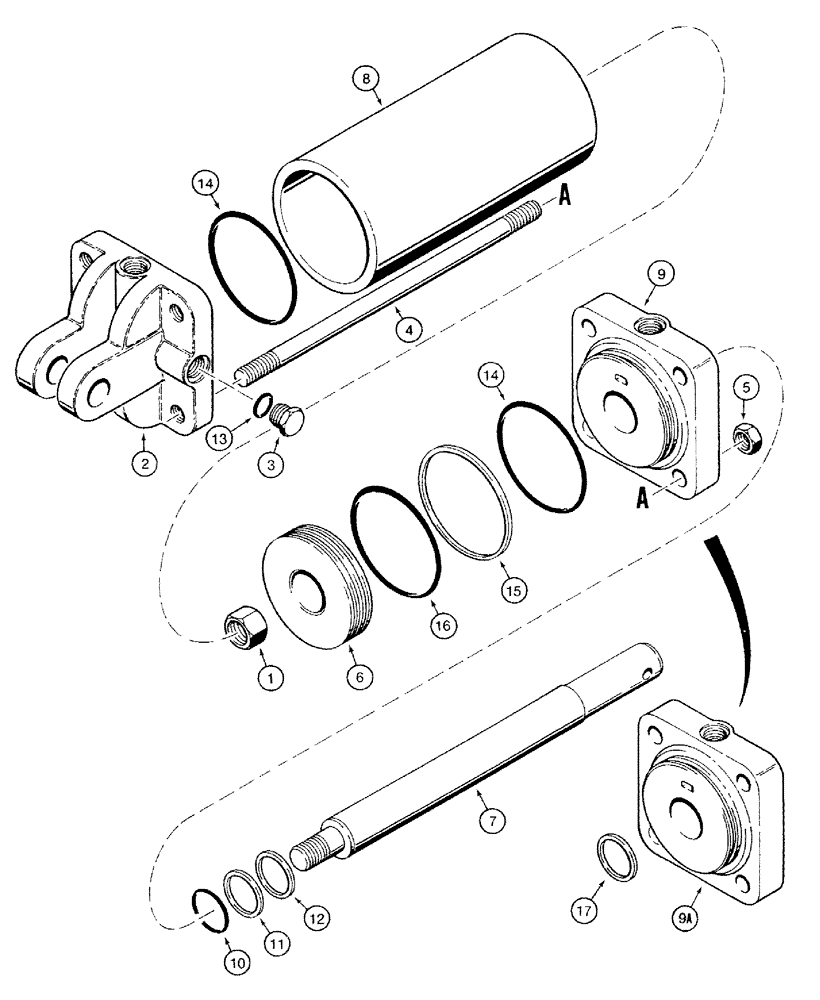

Запчасти Case IH 485 (8-07) - WING FOLDING CYLINDER, 1255245C92, TIE ROD TYPE (08) - HYDRAULICS

1255245C92

CYLINDER ASSY.

3-1/2 inch ID x 16 inch stroke, wing folding, Inc. REF 1 - 17

4шт.

No longer available, order 1282325C91 cylinder Figure 8-08

1шт.

1

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

2

145234C1

HEAD

- cylinder, closed end

1шт.

3

214389

PLUG,3/4" - 16 ORB

1шт.

4

145251C1

THREADED ROD,5/8" - 11 x 539mm

ROD - cylinder retaining

4шт.

5

425-1010

NUT,5/8"-11, G5

4шт.

6

85179C1

PISTON

- cylinder

1шт.

7

1255246C1

ROD

- piston

1шт.

8

145235C1

CYLINDER

TUBE - cylinder

1шт.

9

145236C1

HEAD

GLAND - cylinder, rod end, used with items 10 O-ring and 11 backup ring, no longer available, order 1260881C1 gland and 79978C2 kit for service

1шт.

9a

1260881C1

HEAD

GLAND - cylinder, front, used with item 17 urethane piston rod seal

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2 x 1-7/8 inch, piston rod seal, used with 145236C1 gland only, if used, order 145680C1 kit

1шт.

11

NSS

NOT SOLD SEPARAT

RING - backup, piston rod seal, used with 145236C1 gland only, if used, order 145680C1 kit

1шт.

12

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 1/2 inch ID, plug

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 x 3-1/2 inch, tube to gland and head

2шт.

15

NSS

NOT SOLD SEPARAT

RING - piston seal

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - 3 x 3-3/16 inch, piston

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - piston rod, used with 1260881C1 gland only, if used, order 79978C2 kit

1шт.

79978C2

SEAL KIT

KIT - seal and O-ring, Inc. REF 12 - 17, used on cylinders with urethane rod seal item 17, if used

1шт.

145680C1

KIT

- seal and O-ring, Inc. REF 10 - 16, used on cylinders with O-ring rod seal item 10, if used

1шт.
