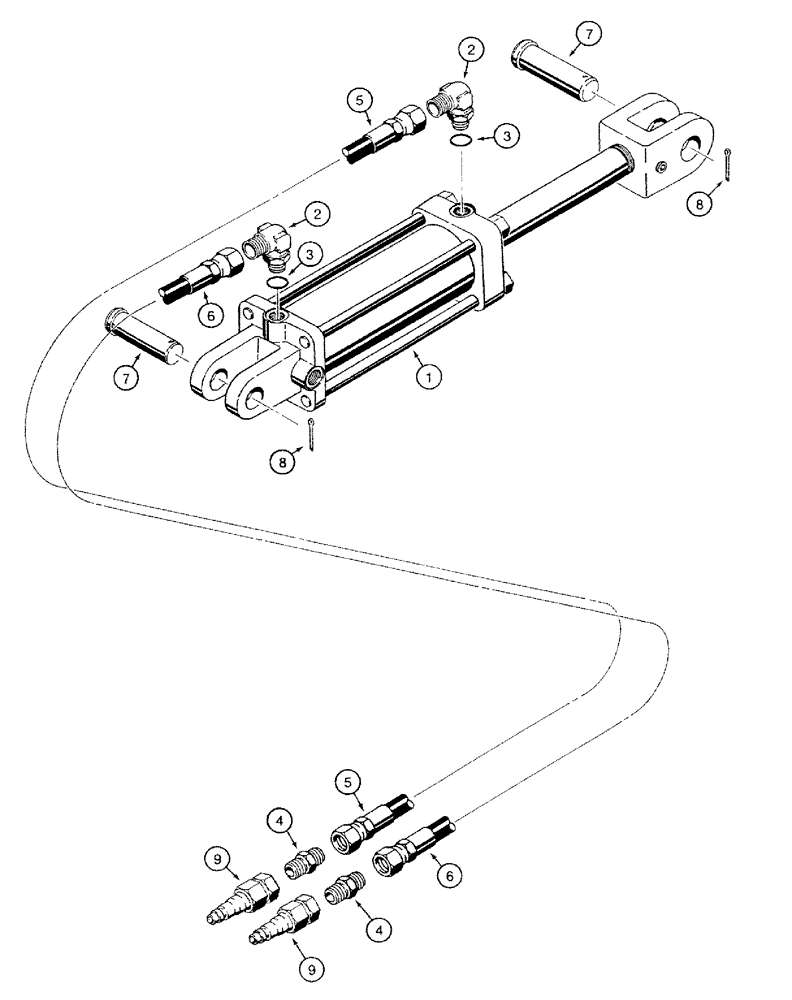

Запчасти Case IH 485 (8-04) - TRANSPORT LIFT CYLINDER HYDRAULICS, MODELS WITH TIE ROD TYPE CYLINDERS, HYDRAULIC COUPLERS (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - 3-1/2 ID x 16 inch stroke, transport lift

1шт.

For cylinder and components, see Figures 8-11 through 8-13

1шт.

2

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree adj, 9/16-18 flare x 3/4-16 inch O-ring boss, If used, Incl. Ref 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

2

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree adj, 3/4-16 flare x 9/16-18 inch O-ring boss, if used, Inc. REF 3

2шт.

4

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Inc. O-ring

2шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

5

147882C1

FLEXIBLE HOSE

HOSE - 1/2 ID x 135 inch long, transport lift cylinder, rod end

1шт.

No longer available, order 1 each of the following: 139519C2 hose, 218-5354 connector, 218-792 connector and 218-344 nut

1шт.

5

139519C2

HYDRAULIC HOSE

HOSE - 3/8 ID x 135 inch long, transport lift cylinder, rod end

1шт.

6

147974C1

FLEXIBLE HOSE

HOSE - 1/2 ID x 120 inch long, transport lift cylinder, closed end

1шт.

No longer available, order 1 each of the following: 1301350C2 hose, 218-5354 connector, 218-792 connector and 218-344 nut

1шт.

6

1301350C2

HYDRAULIC HOSE

HOSE - 3/8 ID x 120 inch long, transport lift cylinder, closed end

1шт.

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring, If used, Includes O-ring

2шт.

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT - hex, 3/4-16 inch flared, if used

2шт.

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

- 3/4-16 flared x 9/16-18 inch flared, if used

2шт.

1252130C1

ADAPTER

- 3/4-16 x 9/16-18 inch O-ring boss, if used

2шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, If used

2шт.

7

427-20375

CLEVIS PIN,31.75mm OD x 95.25mm L

PIN - clevis, 1-1/4 x 3-3/4 inch

2шт.

8

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

9

1272399C2

QUICK MALE COUPLING

COUPLER - male, 7/8-14 inch thread, poppet type, hydraulic couplers

1шт.

9

1341843C1

QUICK MALE COUPLING

COUPLER - male, 7/8-14 inch thread, self sealing type, hydraulic couplers

1шт.

9

1272399C2

QUICK MALE COUPLING

COUPLER - male, 7/8-14 inch thread, self sealing (ISO Standard), hydraulic couplers

1шт.

9

1285718C2

QUICK MALE COUPLING

COUPLER - male, 3/4-16 inch thread, self sealing (ISO Standard), hydraulic couplers

1шт.

218-5261

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

REDUCER - 7/8-14 O-ring boss to 3/4-16 O-ring boss, hydraulic couplers

1шт.

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Hydraulic couplers

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Hydraulic couplers

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
