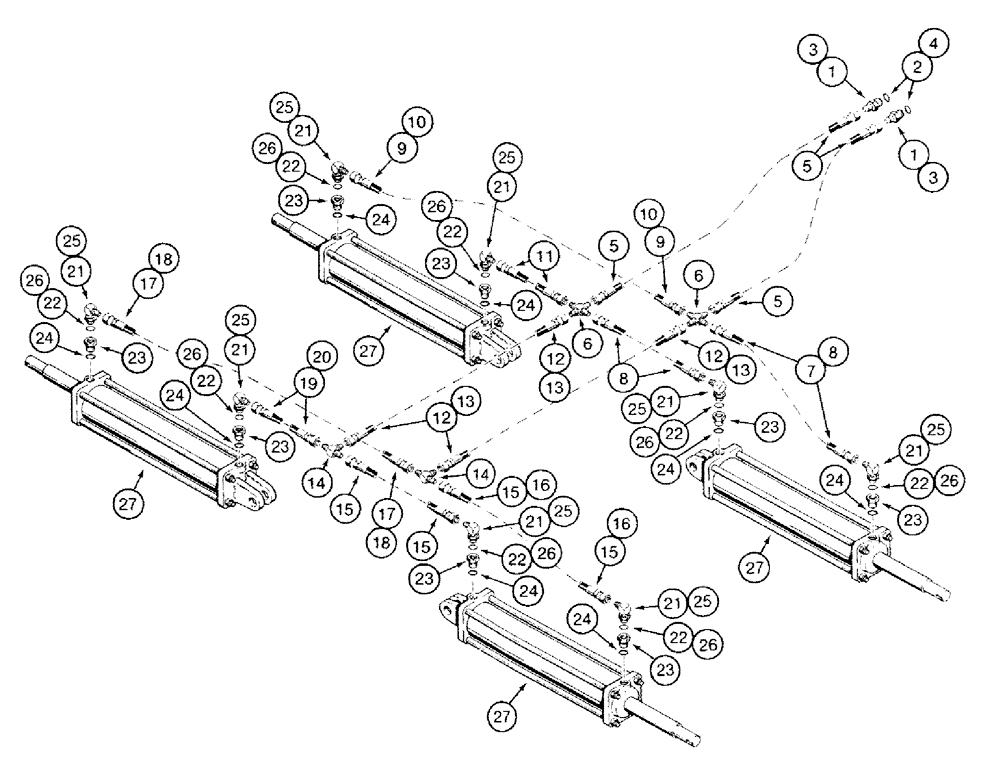

Запчасти Case IH 485 (8-03) - WING CYLINDER HYDRAULICS, MODELS WITH TIE ROD TYPE CYLINDERS (08) - HYDRAULICS

1

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring, If used, Includes Ref. 2

2шт.

2

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, If used

1шт.

3

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - 9/16-18 flared x 3/4-16 inch O-ring boss, if used, Inc. REF 4

2шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, If used

1шт.

5

139654C2

HYDRAULIC HOSE

HOSE - 125 inch, supply to wing cylinder cross

2шт.

6

218-653

4 WAY CONNECTION,9/16"-18, 37 Degree

CROSS - hydraulic, 3/8 inch, to wing cylinders

2шт.

7

147876C1

HYDRAULIC HOSE

HOSE - 45 inch, at rod end of right-hand front wing cylinder, if used

1шт.

8

129908C1

HYDRAULIC HOSE

HOSE - 55 inch, at rod or closed end of right-hand front wing cylinder, if used

1-2шт.

9

139517C1

HYDRAULIC HOSE

HOSE - 80 inch, at rod end of left-hand front wing cylinder, if used

1шт.

10

97478C1

HOSE,6.35 mm ID x 1905.00 mm, SAE 100 R1

at Rod End of Left-Hand Front Wing Cylinder, If Used 6.35 mm ID x 1905.00 mm, SAE 100 R1

1шт.

11

147875C1

HYDRAULIC HOSE,6.40 mm ID x 890.00 mm, SAE 100R1

- at closed end of LH front wing cylinder 6.40 mm ID x 890.00 mm, SAE 100R1

1шт.

12

62017C1

TUBE

HOSE - 93 inch, cross to rear wing cylinder tee, if used

2шт.

13

129768C1

HYDRAULIC HOSE

HOSE - 115 inch, cross to rear wing cylinder tee, if used

2шт.

13

139517C1

HYDRAULIC HOSE

HOSE - 80 inch, cross to rear wing cylinder tee, if used

2шт.

529080R1

CLAMP

- tube

6шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

- flat, 17/32 x 1 x 1/16 inch

6шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

14

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare

2шт.

15

147878C1

HOSE

- 65 inch, at rod or closed end of right-hand rear wing cylinder, if used

1-2шт.

16

129908C1

HYDRAULIC HOSE

HOSE - 55 inch, at rod end of right-hand rear wing cylinder, if used

1шт.

17

1284291C1

HYDRAULIC HOSE

- 95 inch, at rod end of left-hand rear wing cylinder, if used

1шт.

18

97479C1

HYDRAULIC HOSE,6.35 mm ID x 2159.00 mm, SAE 100 R1

at Rod End of Left-Hand Rear Wing Cylinder, if Used 6.35 mm ID x 2159.00 mm, SAE 100 R1

1шт.

19

147876C1

HYDRAULIC HOSE

HOSE - 45 inch, at closed end of left-hand rear wing cylinder, if used

1шт.

20

1284278C1

HYDRAULIC HOSE

HOSE - 41 inch, at closed end of left-hand rear wing cylinder, if used

1шт.

21

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 flared x 9/16-18 inch O-ring boss, if used, Inc. REF 22

8шт.

23

1252130C1

ADAPTER

REDUCER - 3/4-16 to 9/16-18 inch, if used

8шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, If used

8шт.

25

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flared x 3/4-16 inch O-ring boss, If used, Incl. Ref 26

8шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, If used

1шт.

27

1282325C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - wing

4шт.

See Figure 8-08

1шт.

427-20325

CLEVIS PIN,1 1/4" x 3 1/4"

PIN - clevis, 1-1/4 x 3-1/4 inch

4шт.

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, If used

1шт.
