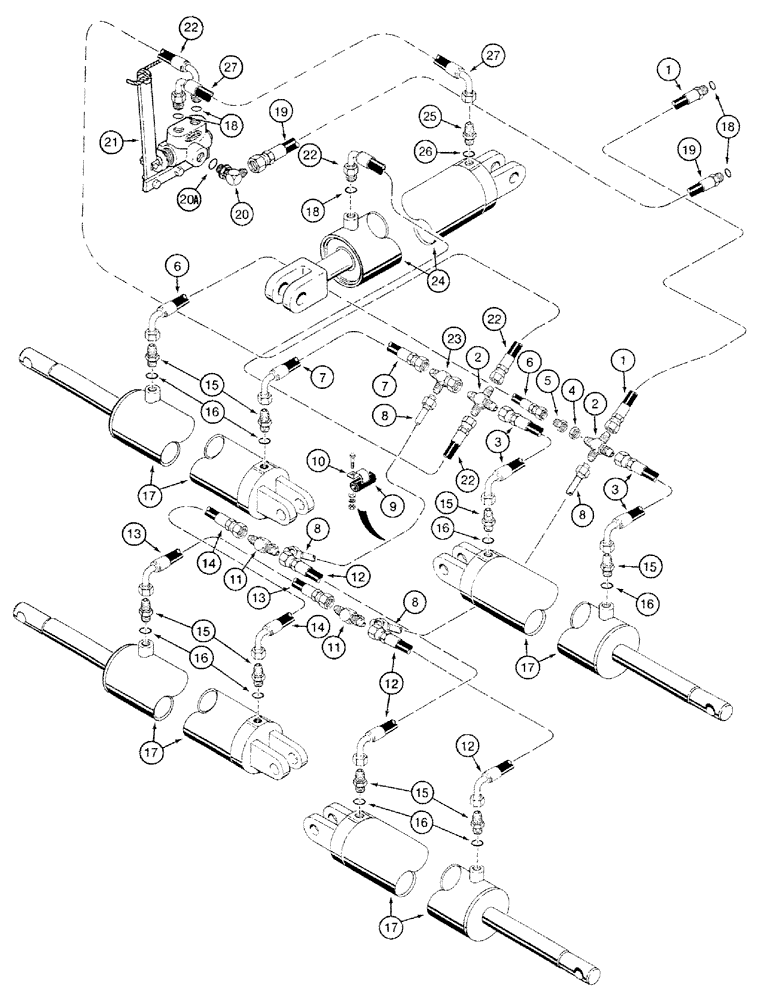

Запчасти Case IH 485 (8-02) - HYDRAULIC SYSTEM, MODELS WITH GLAND TYPE CYLINDERS, WITH DIVERSION VALVE (08) - HYDRAULICS

1

953468R91

HOSE

- 122 inch, supply to wing cylinder cross

1шт.

2

532321R1

CROSS

- hydraulic, to wing cylinders

2шт.

3

60233C1

HOSE

- 54 inch, to right-hand front wing cylinder

2шт.

4

218-345

TUBE NUT,37 Degree, 7/8"-14, Type B

NUT - hex, special, for 7/8-14 inch flare

1шт.

5

218-793

REDUCER,37 Degree, 5/8" x 1/4" Tube

- 5/8 to 3/8 inch

1шт.

6

100850C1

HOSE,0.25" ID x 74.00", SAE CLASS7 D-16

- to rod end of left-hand front wing cylinder

1шт.

7

60232C1

HOSE

- 34 inch, to closed end of left-hand front wing cylinder

1шт.

8

62017C1

TUBE

- hydraulic, to rear wing cylinders

2шт.

9

NSS

NOT SOLD SEPARAT

HOSE - 3/8 ID x 1-1/2 inch split, tube, Serial Range: protection-clamp

6шт.

10

529080R1

CLAMP

- tube

6шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

- flat, 17/32 x 1 x 1/16 inch

6шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

11

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare

2шт.

12

147878C1

HOSE

- 64 inch, to right-hand rear wing cylinder

2шт.

13

62418C1

HOSE ASSY.

HOSE - 84 inch, to rod end of left-hand rear wing cylinder

1шт.

14

61909C1

HOSE,0.25" ID x 44.00", Class 7

- To closed end of LH rear wing cylinder 0.25" ID x 44.00", Class 7

1шт.

435437A1

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, , Nylon 3/16" x 7 1/4"

4шт.

15

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - short, 9/16-18 flared x 9/16-18 inch O-ring boss, Incl. Ref 16

8шт.

17

REF

INSTRUCTION

CYLINDER ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, wing

4шт.

For cylinder and components, see Figures 8-06 through 8-08

1шт.

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

REDUCER - hydraulic, 3/4-16 O-ring boss x 7/8-14 inch female, if used

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, If used

1шт.

18

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

5шт.

19

121360C1

HOSE,0.50" ID x 135.00", SAE 100R1

- Supply to diversion valve 0.50" ID x 135.00", SAE 100R1

1шт.

20

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 7/8-14 flared x 7/8-14 O-ring, 90 degree adjustable, Inc. REF 20A

1шт.

20a

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

21

478887R91

VALVE

ASSEMBLY - diversion

1шт.

See Figure 8-05 for service parts list, mounting and related parts

1шт.

22

653318R91

HOSE

- 34 inch, valve to cross and cross to rod end of lift cylinder

2шт.

23

9410332

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- hydraulic, adjustable, special

1шт.

24

REF

INSTRUCTION

CYLINDER ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, transport lift

1шт.

For cylinder and components, see Figures 8-09 through 8-13

1шт.

25

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 flare x O-ring boss, Inc. REF 26

1шт.

26

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

27

470779R92

HOSE

- 14 inch, closed end of lift, Serial Range: cylinder-valve

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
