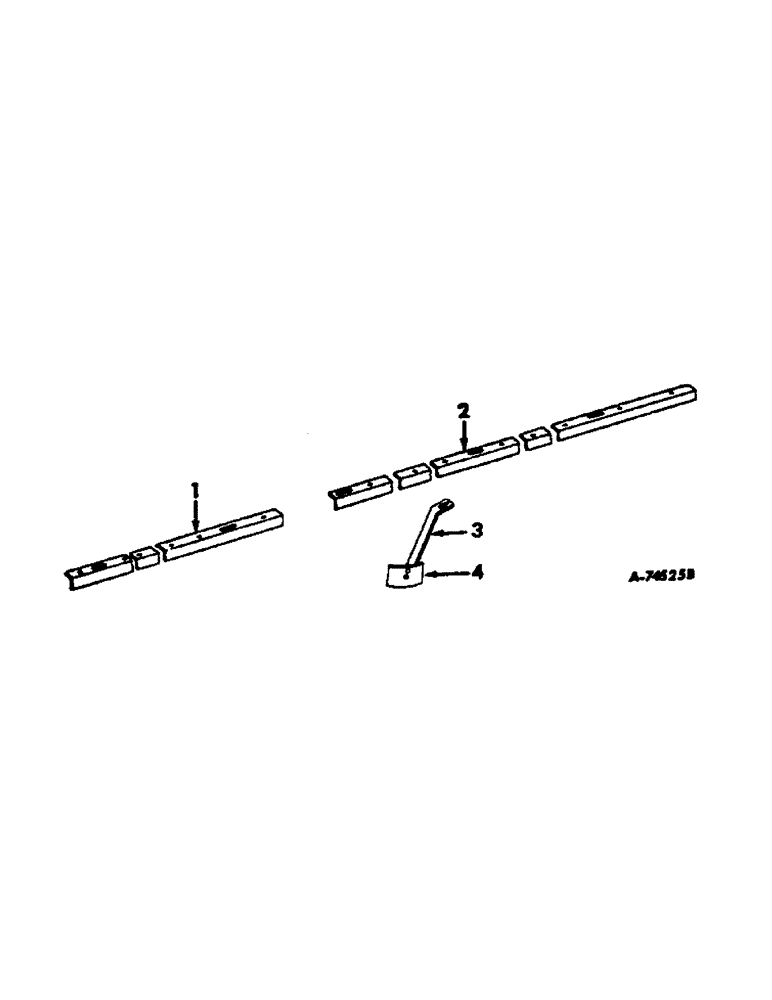

Запчасти Case IH 480 (S-11) - SCRAPERS AND SCRAPER ANGLES

1

470992R2

ANGLE, scraper bar extension front, 2 for unit K

1шт.

1

470983R2

ANGLE

scraper bar extension rear, 2 for unit K & L

1шт.

1

470986R2

ANGLE, scraper bar extension, LH front, for unit L, unit M w/16 ft 5 in. basic machine

1шт.

1

470987R2

ANGLE, scraper bar extension, RH front, for unit M w/13 ft 5 in. basic machine

1шт.

1

471417R2

ANGLE, scraper bar extension, LH rear for unit M w/13 ft 5 in. basic machine

1шт.

1

471418R2

ANGLE, scraper bar extension, RH rear, for unit M w/13 ft 5 in. basic machine

1шт.

1

474417R2

ANGLE

scraper bar extension, RH front, for unit P, unit M w/12 ft basic machine

1шт.

1

474418R2

ANGLE

scraper bar extension, LH front,for unit P, unit M w/12 ft basic machine

1шт.

1

474428R2

ANGLE

scraper bar extension, LH rear, for unit P, unit M w/12 ft basic machine

1шт.

1

474429R2

ANGLE

scraper bar extension, RH rear, for unit P, unit M w/12 ft basic machine

1шт.

1

470983R2

ANGLE

scraper bar extension front, 2 for unit N

1шт.

1

474414R2

ANGLE

scraper bar extension, rear, 2 for unit N

1шт.

1

474429R2

ANGLE

scraper bar extension, LH front for units Q and S

1шт.

1

474428R2

ANGLE

scraper bar extension, RH front, for unit Q and S

1шт.

1

479299R2

BAR

ANGLE, scraper bar extension, LH rear, for unit Q

1шт.

1

479300R2

BAR

ANGLE, scraper bar extension, RH rear, for unit Q

1шт.

1

468560R2

BAR

ANGLE, scraper bar extension, front, 2 for unit R

1шт.

1

479297R2

BAR

ANGLE, scraper bar extension, rear, 2 for units R and S

1шт.

18720R1

SCREW,Short NK, 5/8"-11 x 2", G2

BOLT, 5/8-11 x 2 C-Z sq-nk crg, 2 used with each angle

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., 2 used with each angle

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 2 used with each angle 5/8"

1шт.

1

479300R2

BAR

ANGLE, scraper bar extension, LH front, for units T and V

1шт.

1

479299R2

BAR

ANGLE, scraper bar extension, RH front, for units T and V

1шт.

1

479291R3

ANGLE

scraper bar extension, LH rear, for unit T

1шт.

1

479292R3

ANGLE

scraper bar extension, RH rear, for unit T

1шт.

1

479297R2

BAR

ANGLE, scraper bar extension, front, 2 for unit U

1шт.

1

479301R3

ANGLE

scraper bar extension, rear, 2 for units U and V

1шт.

1

479301R3

ANGLE

scraper bar extension, front, 2 for unit W

1шт.

1

472570R3

ANGLE

scraper bar extension, rear, 2 for units W and Y

1шт.

1

479292R3

ANGLE

scraper bar extension, LH front, for unit X

1шт.

1

479291R3

ANGLE

scraper bar extension, RH front,for unit X

1шт.

1

479304R3

ANGLE

scraper bar extension, LH rear, for units X and Y

1шт.

1

479305R3

ANGEL, scraper bar extension, RH rear, for unit X and Y

1шт.

18720R1

SCREW,Short NK, 5/8"-11 x 2", G2

BOLT, 5/8-11 x 2 C-Z sq-nk crg, 2 used withe each angle

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., 2 used with each angle

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 2 used with each angle 5/8"

1шт.

2

479308R3

ANGLE

scraper bar main, LH front and RH rear, 2 for units A, P, Q, T and X, 1 for units C, S, V & Y

1шт.

2

479309R3

ANGLE

scraper bar main, RH front and LH rear, 2 for units A, P Q, T and X, 1 for units C, S, V, & Y

1шт.

2

468551R2

ANGLE

scraper bar main, LH front, for units B, K, L, N, R, U and W

1шт.

2

468552R2

ANGLE

scraper bar main, RH front, for units B, K, L, N, R, U and W

1шт.

2

472573R2

ANGLE

scraper bar main, RH rear, for units B, C, K, L, N, R, S, U, V, W, and Y

1шт.

2

487172R1

ANGLE, scraper bar main, front LH, for unit D

1шт.

2

487173R1

ANGLE, scraper bar main, front RH, for unit D

1шт.

2

487178R1

ANGLE, scraper bar main, rear, 2 for unit D and E

1шт.

2

487174R1

ANGLE, scraper bar main, front LH, for units and E & F

1шт.

2

487175R1

ANGLE, scraper bar main, front RH, for units E & F

1шт.

2

487176R1

ANGLE, scraper bar main, rear LH, for unit F

1шт.

2

487177R1

ANGLE, scraper bar main, rear RH, for unit F

1шт.

2

479323R2

ANGLE

scraper bar main, front LH, for unit M and AB

1шт.

2

479324R2

ANGLE

scraper bar main, front RH, for units M and AB

1шт.

2

472562R3

BAR

ANGLE, scraper bar main, front LH, for unit AA

1шт.

2

472561R3

BAR

ANGLE, scraper bar main, front RH, for unit AA

1шт.

18720R1

SCREW,Short NK, 5/8"-11 x 2", G2

BOLT, 5/8-11 x 2 C-Z sq-nk crg, 3 used with each angle

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex, 3 used with each angle

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 3 used with each angle 5/8"

1шт.

2

472572R2

ANGLE

scraper bar main, LH rear, for units B, C, K, L, N, R, S, U, V, W and Y

1шт.

2

471009R2

ANGLE

scraper bar main, inner front LH, for unit G

1шт.

2

471010R2

ANGLE

scraper bar main, inner front RH, for unit G

1шт.

2

479301R3

ANGLE

scraper bar main, outer front, 2 for unit G

1шт.

2

479297R2

BAR

ANGLE, scraper bar main, inner & outer rear, 4 for units G & H

1шт.

2

474426R2

ANGLE

scraper bar main, inner front LH, for units H & J

1шт.

2

474427R2

ANGLE

scraper bar main, inner front RH, for units H & J

1шт.

2

479292R3

ANGLE

scraper bar main, outer front LH, for units H, J and AB

1шт.

2

479291R3

ANGLE

scraper bar main, outer front RH, for units H, J and AB

1шт.

2

479299R2

BAR

ANGLE, scraper bar main, inner & outer rear LH, 2 for unit J

1шт.

2

479300R2

BAR

ANGLE, scraper bar main, inner & outer rear RH, 2 for unit J

1шт.

2

479301R3

ANGLE

scraper bar main, rear, 2 for units AA, AE, AG & AJ

1шт.

18720R1

SCREW,Short NK, 5/8"-11 x 2", G2

BOLT, 5/8-11 x 2 C-Z sq-nk crg, 2 used with each angle

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., 2 used with each angle

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 2 used with each angle 5/8"

1шт.

3

483140R92

BLADE

SCRAPER ASSEMBLY RH

1шт.

3

540462R92

SCRAPER

ASSY, RH heavy duty, 1 per disk except end disk

1шт.

3

483139R92

BLADE

SCRAPER ASSEMBLY, LH

1шт.

3

540461R92

SCRAPER

ASSY, LH heavy duty, 1 per disk except end disk

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2-13 x 1-1/2 C-Z sq-nk crg, 1 per std scraper assy

1шт.

121258C1

BOLT,Spcl, Hex, 1/2" - 13 x 1.3", Type 5

BOLT, special step, 1 per heavy duty scraper assy

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 flange lock, 1 per scraper assy

1шт.

4

483096R2

KNIFE ASSY

BLADE, scraper, 1 per scraper assy

1шт.

106930

RIVET,Tr Hd, 3/8" x 1"

3/8 x 1 truss-hd solid, 2 per std scrapers

1шт.

49-614

RIVET,Tr Hd, 3/8" x 7/8"

3/8 x 7/8 truss-hd solid, 1 per heavy duty scrapers

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1, 1 per scraper assy

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5, 1 per scraper

1шт.
