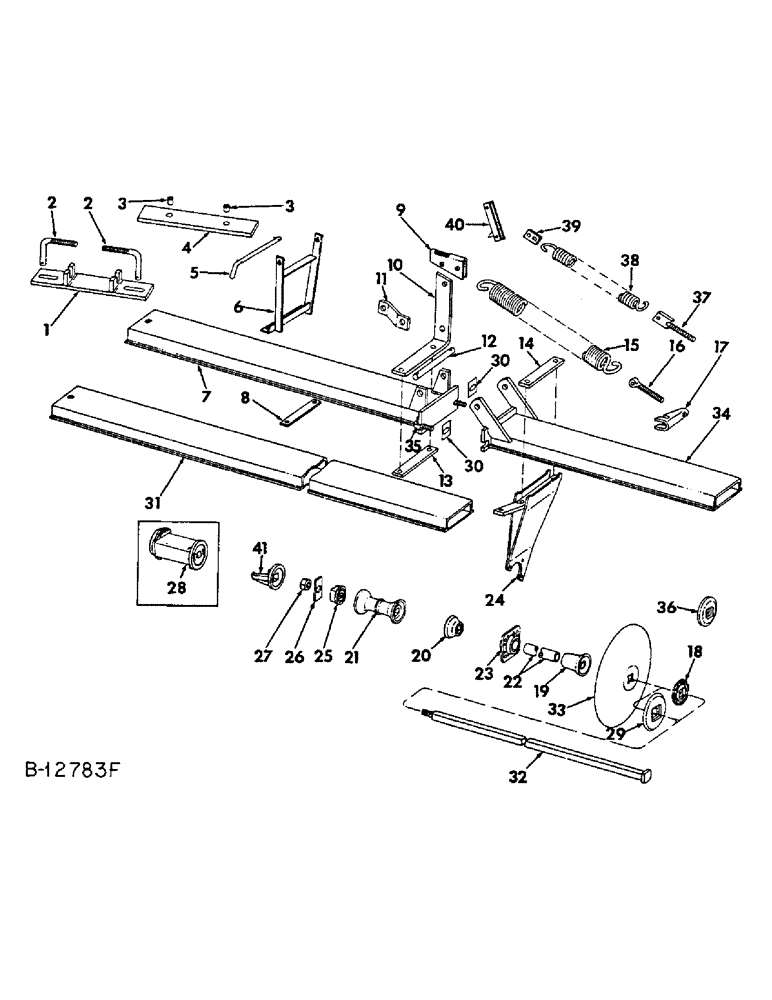

Запчасти Case IH 480 (S-08) - BEARING, DISK AND GANG

1

468601R11

BAR

ASSY, angling, note

2шт.

2

468603R1

ROD,7/8" - 9 x 6 23/64"

BOLT, angling, note

2шт.

426898

NUT,Jam, 7/8"-9, G5

7/8-9 C-Z hex. jam

4шт.

599744R1

AXLE PIN

PIN, quick attachable cot.

2шт.

21224R1

WASHER

29/32 x 1-1/2 x 7 ga C-Z

4шт.

3

F19286

BUSHING

SPACER, 3/4 std pipe x .594 long, note

2шт.

4

468597R2

BAR

STRAP, front gang bar, note

1шт.

17275R1

BOLT,Hex, 3/4"-10 x 6 1/2", G2

3/4-10 x 6-1/2 C-Z hex-hd mach

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

2шт.

5

489266R1

ROD

ASSY, lockout, 4 for units K thru Y

1шт.

17054R1

LOCK PIN,3/16" x 7/8", Slotted

Pin, 3/16" x 7/8", Slotted

8шт.

6

489268R1

BRACKET

ASSY, lockout, 4 for units K thru Y

1шт.

7

541930R1

BAR ASSY, front main gang, used only with main frames, 11 ft 6 in. & 12 ft

2шт.

7

468592R92

BAR

ASSY, front main gang, used only with main frames 13 ft 5 in. and larger

2шт.

REF 468592R92 MEASURES ABOUT 75.3+ 11/22/96

1шт.

7

541933R1

BAR ASSY, rear main gang, used only with main frames 11 ft 6 in. & 12 ft

2шт.

7

468598R92

BAR

ASSY, rear main gang, used only with main frames 13 ft 5 in. and larger

2шт.

REF 468598R92 MEASURES ABOUT 80" +

1шт.

8

468624R1

STRAP, lockout, 4 for units K thru Y

1шт.

20281R1

BOLT,Hex, 1/2"-13 x 3 3/4", G2

1/1-13 x 3-3/4 C-Z hex-hd mach

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

9

468617R1

LINK

spring, 4 for uints K thru S

1шт.

21672R1

PIN,3/4" x 1 11/16"

3/4 x 1-11/16 C-Z std-hd

4шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

10

471032R1

BRACKET, spring, LH, 2 for units K thru P

1шт.

10

471033R1

BRACKET

spring, RH, 2 for units K thru P

1шт.

10

468614R1

BRACKET, spring, LH, 2 for units Q thru S

1шт.

10

468615R1

BRACKET, spring, RH, 2 for units Q thru S

1шт.

10

489288R2

BRACKET, spring, LH, 2 for units T thru Y

1шт.

10

489289R2

BRACKET, spring, RH, 2 for units T thru Y

1шт.

18838R1

BOLT, 3/4-10 x 2 C-Z hex-hd mach Hex, 3/4"-10 x 2", G2

4шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

11

468616R1

SUPPORT

BRACE, spring bracket, 4 for units K thru S

1шт.

11

489287R1

SUPPORT

BRACE, spring bracket, 4 for units T thru Y

1шт.

18823R1

BOLT,Hex, 5/8"-11 x 2", G2

5/8-11 x 2 znd hex-hd mach

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

12

468613R1

SHAFT

PIVOT, shaft, 4 for units K thru Y

1шт.

22945R1

Pin, Split (Cotter), 5/16" x 1 1/2" 5/16" x 1 1/2"

8шт.

13

468618R1

BAR

tie, 2 for units K thru Y

1шт.

18842R1

BOLT,Hex, 3/4"-10 x 4 1/2", G2

3/4-10 x 4-1/2 C-Z hex-hd mach

4шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

14

468591R1

BAR

STRAP, bearing standard, 1 used per standard assy

1шт.

18844R1

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 2

3/4-10 x 5-1/2 C-Z hex-hd mach, 2 used per strap

1шт.

280954

NUT,3/4"-10, G5

2 used per strap 3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 2 used per strap

1шт.

15

471035R1

SPRING

gang lift, 4 for units K thru P

1шт.

15

468621R1

SPRING

gang lift, 4 for units Q thru S

1шт.

REF #15A 468621R1 MEASURES 30.3" FREE LENGTH.

1шт.

15

489280R1

SPRING

gang lift, 4 for units T thru Y

1шт.

16

527200R1

EYEBOLT,Eye, 3/4" - 10 x 6"

4 for units A thru V, AA and AB

1шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

3/4-10 flange lock

8шт.

17

468619R2

ANCHOR

spring, 4 for units K thru Y

1шт.

18

466950R2

WASHER

arbor bolt head rear, machines built, Serial Range: 1966-1974

2шт.

18

100696C1

WASHER

arbor bolt head, machines built 1976 & since

2шт.

19

472591R3

BUSHING,1.796" ID x 2.4" OD x 4.052"

bearing, 4-3/32 in. long

1шт.

REF 472591R3 MEASURES 4.052"

1шт.

19

101191C1

SPOOL

bearing, machines built 1975 & since

1шт.

REF 101191C1 MEASURES 4.055

1шт.

20

472592R3

SPOOL

bearing 1-19/32 in. long, for 7-1/2 in. spacing, machines built, Serial Range: 1966-1974

1шт.

20

472593R3

SPOOL

bearing, 3-3/32 in. long, for 9 in. spacing, machines built, Serial Range: 1966-1974

1шт.

20

101190C1

SPOOL

bearing long, machines built 1975 & since

1шт.

20

101189C1

SPOOL

bearing short, machines built 1975 & since

1шт.

21

481416R1

SPOOL

7-1/2 in. spacing

1шт.

21

481417R1

SPOOL

9 in. spacing

1шт.

22

652383R1

BUSHING,38.91mm ID x 44.45mm OD x 128.6mm L

arbor bolt support, 5-5/64 in. long, for 7-1/2 in. spacing, machines built, Serial Range: 1966-1974

1шт.

22

112769C1

BUSHING,38.91mm ID x 44.45mm OD x 183mm L

atbor bolt support, machines built 1975 & since

1шт.

22

472594R1

BUSHING,38.91mm ID x 44.45mm OD x 154mm L

arbor bolt support, 6-1/16 in. long, for 9 in. spacing, machines built, Serial Range: 1966-1974

1шт.

22

112410C1

TUBE

BUSHING, arbor bolt support, machines built 1975 & since

1шт.

23

ST490A

BEARING

ASSY, pre-lubricated ball

1шт.

23

ST491A

BALL BEARING,45mm ID

BEARING W/LUBRICATION FITTING, std ball, 3 per main gang, 2 per gang extension

1шт.

23

ST491A-IMPGV

BEARING

Value, 1-3/4 In. Round Bore Bearing Assy

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 znd hex-hd mach, 3 used with each bearing

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 3 used with each bearing 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , 3 used with each bearing 1/2"

1шт.

24

474178R92

SUPPORT ASSY.

STANDARD ASSY, bearing, 1 per bearing

1шт.

25

481611R1

WASHER

arbor nut, 4 for units D thru J

1шт.

25

489295R1

WASHER

arbor nut, front on main gang, rear on extension, 4 for units A, B, C and K thru AB

1шт.

25

481611R1

WASHER

arbor nut rear, main gang, 2 for units A, B, C and K thru AB

1шт.

25

PA4167

WASHER

arbor nut front, for extension, 2 for units K thru Y, AE thru AR

1шт.

26

489292R1

SUPPORT ASSY.

STRIP, arbor bolt, used with 489295R1

4шт.

27

220094

NUT,1 1/8"-7, G5

1-1/8 type 5

1шт.

492-11112

LOCK WASHER,1 1/8"

WASHER, 1-1/8 C-Z med lock, 1 per arbor bolt when equipped w/driver, 489295R1

1шт.

28

489327R91

BLOCK DRIVER

DRIVER ASSY, 7-1/2 in. spacing gang, for components see list of parts under details of gang driver, machines built, Serial Range: 1966-1976

1шт.

28

489328R91

BLOCK DRIVER

DRIVER ASSY, 9 in. spacing gang, for components see list of parts under details of gang driver, machines built, Serial Range: 1966-1976

1шт.

29

468584R2

SQ HOLE WASHER

front bumper

2шт.

30

473549R1

BAR

SHIM, gang bar

8шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

3/4-10 flange lock

8шт.

31

470996R91

BAR ASSY, front gang, 2 for units D thru J

1шт.

31

487169R1

BAR ASSY, rear gang, 2 for units D, E, F & H

1шт.

31

470993R91

BAR ASSY, rear gang, 2 for units G & J

1шт.

32

468582R2

BOLT (SPREADER),1 1/8"-7 x 76.7"

BOLT, arbor, 76.4 in. long, 2 for units C, S, V & Y, 4 for units A, P, Q, T and X, 4 for units M w/13 ft 5 in. main frame

1шт.

32

468583R2

BOLT (SPREADER),1 1/8"-7 x 79.4"

BOLT, arbor, 79.4 in. long, 2 for units C, S, V & Y, 4 for units B, K, L, N, R, U and W

1шт.

32

468607R1

BOLT,1 1/8"-7 x 39.8"

arbor, 39.8 in. long, 2 for units H, J and S, 4 for unit Q

1шт.

32

468608R1

BOLT,1 1/8"-7 x 41.3"

arbor, 41.3 in. long, 2 for units G and S, 4 for unit R

1шт.

32

471013R1

BOLT,1 1/8"-7 x 56.3"

arbor, 56.2 in. long, 2 for units G and Y, 4 for units W

1шт.

32

471014R1

BOLT,1 1/8"-7 x 48.8"

arbor, 48.6 in. long, 4 for units G, H, J, T, U & V

1шт.

32

471015R1

BOLT,1 1/8"-7 x 57.8"

arbor, 57.6 in. long, 2 for units H, J and Y, 4 for unit X

1шт.

32

471016R1

BOLT,1 1/8"-7 x 30.6"

arbor, 30.6 in. long, 4 for unit P, 4 for units M w/12 ft basic frame

1шт.

32

471017R1

BOLT,1 1/8"-7 x 26.1"

arbor, 26.1 in. long, 4 for unit N

1шт.

32

471018R1

BOLT, arbor, 21.6 in. long, 2 for unit L, 4 for unit M w/13 ft 5 in. basic frame

1шт.

32

471019R1

BOLT,1 1/8"-7 x 18.6"

arbor, 18.6 in. long, 2 for units L, 4 for unit K

1шт.

32

472585R2

BOLT,1 1/8"-7 x 64.4"

arbor, 64.4 in. long, 4 for unit AA

1шт.

32

487168R1

BOLT,1 1/8"-7 x 94.6"

arbor, 94.4 in. long, 4 for units D thru F

1шт.

32

652939R2

BOLT,Rnd Cor Sq Hd, 1 1/8" - 7 x 67.4"

arbor, 67.4 in. long, 4 for units M w/12 ft basic frame, 4 for unit AB

1шт.

REF 32 652939R2 IS 67 3/8" LONG PER 470 BOOK.

1шт.

If looking for 81.4 use p/n 652359R2

1шт.

33

482986R2

DISK HARROW

DISK, 8 in. solid heavy duty 8 ga

1шт.

33

652763R1

DISC

DISK, 18 in. solid alloy stl 9 ga

1шт.

33

651199R1

DISC

DISK, 18 in. solid heavy duty 9 ga

1шт.

33

482987R2

DISK HARROW

DISK, 18 in. notched heavy duty 8 ga

1шт.

33

651200R1

DISK HARROW

DISK, 18 in. notched heavy duty 9 ga

1шт.

33

482973R1

DISC

DISK, 20 in. solid heavy duty 7 ga

1шт.

33

652765R1

DISC

DISK, 20 in. solid alloy stl 8 ga

1шт.

33

472217R1

DISK HARROW

DISK, 20 in. solid heavy duty 8 ga

1шт.

33

482974R1

DISC

DISK, 20 in. notched heavy duty 7 ga

1шт.

33

652766R1

DISC

DISK, 20 in. notched alloy stl 8 ga

1шт.

33

489241R1

DISC

DISK, 20 in. notched heavy duty 8 ga

1шт.

33

482975R1

PLOW DISC

DISK, 22 in. solid heavy duty 6 ga

1шт.

33

472218R1

DISC

DISK, 22 in. solid heavy duty 7 ga

1шт.

33

482976R1

DISK HARROW

DISK, 22 in. notched heavy duty 6 ga

1шт.

33

P24425

DISC

DISK, 22 in. notched 7 ga

1шт.

33

652768R1

DISC

DISK, 22 in. notched alloy stl 7 ga

1шт.

34

471022R91

BAR ASSEMBLY, gang extension, 4 for units K thru P

1шт.

34

468609R91

BAR

ASSEMBLY, gang extension, 4 for units Q thru S

1шт.

34

489263R1

BAR ASSEMBLY, gang extension, 4 for units T thru Y

1шт.

35

486789R91

PACKAGE

EYEBOLT SERVICE PACKAGE, consists of (1) eyebolt, pivot (NSS), (1) nut (NSS), (1) pin, eyebolt (NSS), (1) washer (NSS)

1шт.

36

489296R1

WASHER

arbor bolt head, rear on main gang, front on extension, 4 for uints A, B, C and K thru AB, machines built, Serial Range: 1966-1976

1шт.

36

100696C1

WASHER

arbor bolt, replaces P4165A, machines built 1976 & since

2шт.

37

489282R1

ROD

EYEBOLT, 4 for units W, X and Y

1шт.

280954

NUT,3/4"-10, G5

8шт.

486788R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

4шт.

38

489279R1

SPRING

gang lift helper, 4 for units W, X and Y

1шт.

39

489284R1

BAR

helper spring, 4 for units W, X and Y

1шт.

39

489284R1

BAR

helper spring, 4 for units W, X and Y

1шт.

40

489276R1

LINK

spring, 4 for units T thru Y

1шт.

21672R1

PIN,3/4" x 1 11/16"

3/4 x 1-11/16 C-Z std-hd

4шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

41

57001C1

BLOCK DRIVER

DRIVER, gang, folding mach only, machines built 1977 to 1979 (Replaces 481611R1)

1шт.

41

481611R1

WASHER

machines built 1979 & since

1шт.
