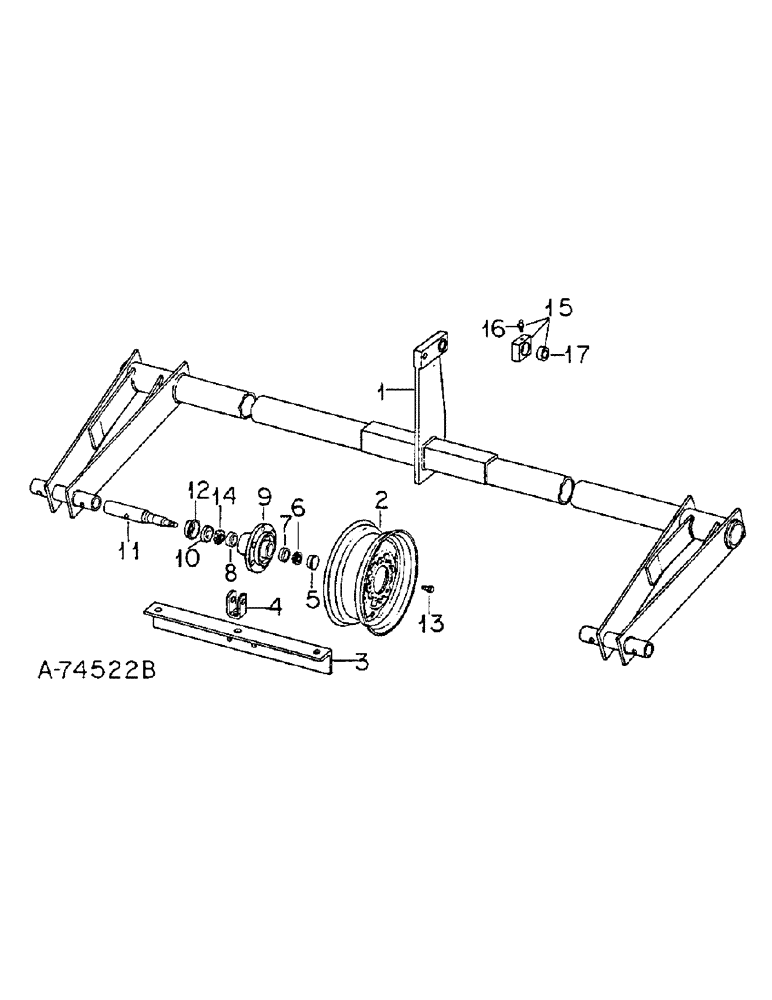

Запчасти Case IH 480 (S-07) - AXLE, HUB AND WHEEL

1

468557R94

AXLE

ASSEMBLY, wheel

1шт.

1

541928R1

AXLE ASSY, wheel, used only with 11 foot 6 in. & 12 foot basic main frames

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive type lub

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

4шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

SCREW, 3/8-16 x 3 C-Z hex-hd cap

4шт.

2

622192R91

WHEEL

DISC & RIM ASSY, 15 x 5K

4шт.

2

463034R1

RIM

DISC & RIM ASSY, 14 x 5KB

4шт.

2

481344R91

WHEEL

DISC & RIM ASSY, 14 x 8KB

4шт.

810768C1

VALVE

STEM, steel, 14 inch wheel

1шт.

810769C1

VALVE

STEM, steel, 15 inch wheel

1шт.

3

468579R1

ANGLE

transport bracket, order angle 489273R1

1шт.

3

489273R1

ANGLE

transport bracket

1шт.

18837R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 2

3/4-10 x 1-3/4 C-Z hex-hd mach

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

4

468580R1

CLEVIS

transport

1шт.

18844R1

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 2

3/4-10 x 5-1/2 C-Z hex-hd mach

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 C-Z hex. jam

2шт.

21670R1

HEADED PIN,3/4" x 2 1/4"

PIN, 3/4 x2-1/4 std-hd znd

1шт.

599744R1

AXLE PIN

PIN, quick attachable cot.

1шт.

5

663908R1

CAP

hub

1шт.

6

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Roller, outer

4шт.

7

371883R1

BEARING CUP

Roller outer

4шт.

8

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Roller inner

4шт.

9

465493R2

HUB

wheel

4шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF std lub

4шт.

10

667599R91

OIL SEAL

oil

4шт.

11

478375R1

SPINDLE

wheel

4шт.

69442D

NUT

3/4-16 slt hex. jam

4шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

4шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

25/32 x 1-1/4 x 11 ga HT

4шт.

12

667564R1

RING

wear sleeve

4шт.

13

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel

24шт.

14

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE, roller bearing, inner

4шт.

15

129607C91

PIVOT

ASSY HYD CYL, consists of block 129608C1 (NSS), bushing 112886C1 and fitting 443566 (Replaces 129607C1)

1шт.

16

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive

1шт.

17

112886C1

BUSHING

tension (Replaces 112886)

1шт.

63881C91

BEARING

KIT, wheel bearing, consists of

1шт.

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Outer

1шт.

371883R1

BEARING CUP

Outer

1шт.

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

INNER CONE

1шт.

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner

1шт.

667599R91

OIL SEAL

1шт.

667564R1

RING

1шт.

663908R1

CAP

1шт.
