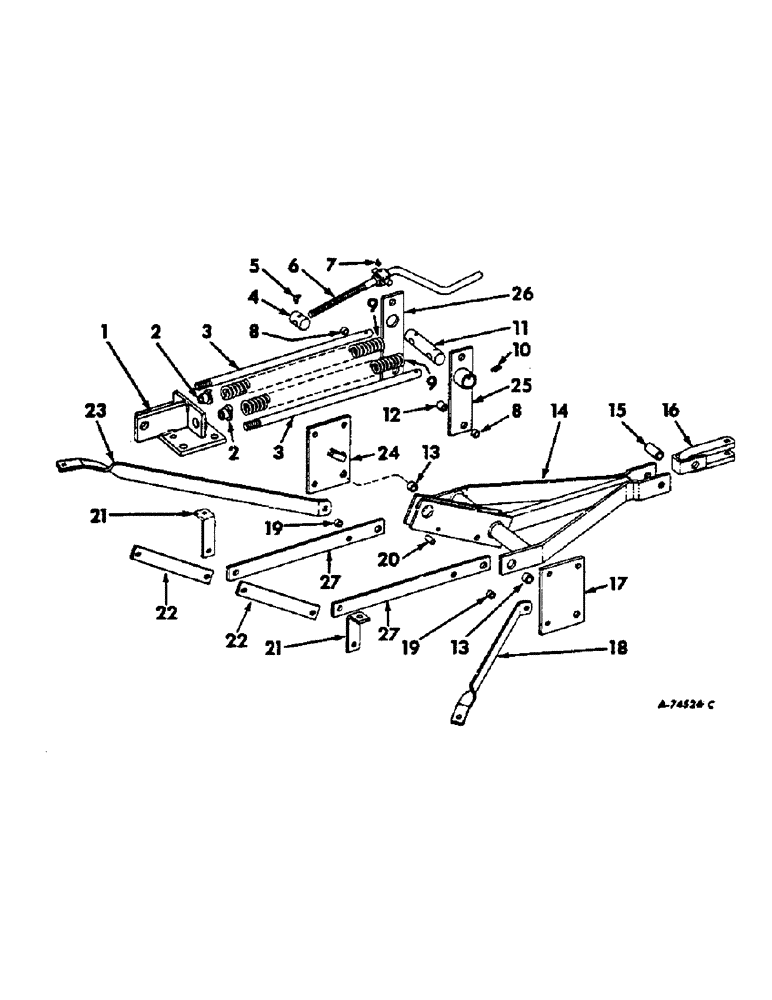

Запчасти Case IH 480 (S-05) - HITCH
№
Артикул
Название
Примечание
Количество
1
468538R11
SUPPORT
ASSEMBLY, cylinder
1шт.
NLS
NO LONGER SERVICED
SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap
2шт.
18838R1
BOLT, 3/4-10 x 2 C-Z hex-hd mach Hex, 3/4"-10 x 2", G2
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
4шт.
2
468537R1
SPRING SEAT
BUSHING, hitch spring
2шт.
3
468535R2
GUIDE
spring
2шт.
426899
NUT,Jam, 1"-8, G5
1-8 C-Z hex. jam
4шт.
21162R1
WASHER
2 x 1-1/32 x 7 ga C-Z
2шт.
4
468533R1
LINK
SWIVEL, crank
1шт.
6
468531R12
SCREW
ASSY, hitch
1шт.
7
219-8
LUBE NIPPLE,1/4" - 28 NPTF
FITTING, 1/4-28 str lub
1шт.
8
468530R1
SPACER,3/4" Pipe x 9/16"
BUSHING, 3/4 x .562 long std pipe
2шт.
18842R1
BOLT,Hex, 3/4"-10 x 4 1/2", G2
3/4-10 x 4-1/4 C-Z hex-hd mach
1шт.
467750R1
WASHER
25/32 x 1-1/2 x 11 ga C-Z
2шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
1шт.
9
468536R1
SPRING
hitch 40 coils
2шт.
9
481285R1
VALVE SPRING
SPRING, hitch, will work for 489281R1, for machines 22 foot & larger
2шт.
10
219-8
LUBE NIPPLE,1/4" - 28 NPTF
FITTING, 1/4-28 str lub
1шт.
11
489127R1
PIN,50.8mm OD x 208.28mm L
PIVOT, spring guide
1шт.
12
582542R1
SPACER,3/4" Pipe x 1 1/4"
3/4 x 1-1/4 pipe
1шт.
13
468528R2
BUSHING
hitch pivot
2шт.
413-1444
BOLT,Hex, 7/8" - 9 x 2-3/4", Gr 5
SCREW, 7/8-9 x 2-3/4 C-Z hex-hd cap
2шт.
425-1014
NUT,7/8"-9, G5
NUT, 7/8"-9, G5
2шт.
131047
WASHER,7/8"
7/8"
2шт.
14
471175R91
TRAILER HITCH
HITCH ASSEMBLY
1шт.
15
468548R1
BUSHING
hitch clevis
1шт.
425-1014
NUT,7/8"-9, G5
NUT, 7/8"-9, G5
1шт.
21229R1
SCREW, 7/8-9 x 5-3/4 C-Z hex-hd cap
1шт.
NLS
NO LONGER SERVICED
7/8"
1шт.
16
468546R11
CLEVIS
ASSEMBLY, hitch
1шт.
608595R1
NUT
5/8-11 C-Z hex.
1шт.
413-1060
BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5
SCREW, 5/8-11 x 3-3/4 C-Z hex-hd cap
1шт.
17
471181R91
PLATE
ASSEMBLY, hitch RH
1шт.
17
489275R1
PLATE ASSY, hitch RH, for machines 22 foot & larger
1шт.
21204R1
BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 8
SCREW, 3/4-10 x 1-3/4 C-Z hex-hd cap
2шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
2шт.
18
468543R2
BRACE
diagonal RH
1шт.
18
541927R1
BRACE, diagonal RH, used only with 11 foot 6 in. & 12 foot basic main frames
1шт.
19
PO10780
SPACER,3/4" Pipe x 7/16"
2шт.
20
K11064
SPACER,3/8" Pipe x 1 1/4"
3/8 x 1-1/4 pipe
1шт.
18801R1
BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 2
7/16-14 x 2-3/4 C-Z hex-hd mach
1шт.
271501
SOCKET
NUT, 7/16-14 C-Z hex.
1шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
1шт.
21
481292R2
BRACKET, hitch brace support
2шт.
18839R1
BOLT,Hex, 3/4" x 2 1/4"
3/4-10 x 2-1/4 C-Z mach
2шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
2шт.
22
491970R1
BAR
hitch
2шт.
18822R1
BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd
5/8-11 x 1-1/2 C-Z hex-hd mach
2шт.
18823R1
BOLT,Hex, 5/8"-11 x 2", G2
5/8-11 x 2 znd hex-hd mach
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
23
468542R2
SUPPORT
BRACE, diagonal LH
1шт.
23
541926R1
BRACE, diagonal LH, used only with 11 foot 6 in. & 12 foot basic main frames
1шт.
24
471180R91
BRACKET
PLATE ASSEMBLY, hitch LH
1шт.
24
489274R1
PLATE ASSY, hitch LH, for machines 22 foot & larger
1шт.
21204R1
BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 8
SCREW, 3/4-10 x 1-3/4 C-Z hex-hd cap
2шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
2шт.
25
483184R91
ARM ASSY, adjusting
1шт.
25
489272R1
ARM
ASSy, adjusting, for machines 22 foot & larger
1шт.
26
483185R1
BAR
adjusting arm
1шт.
26
489285R1
BAR
adjusting arm, for machines 22 foot & larger
1шт.
27
491969R1
BAR
hitch
2шт.
18824R1
BOLT,Hex, 5/8"-11 x 2 1/2", G2
5/8-11 x 2-1/2 C-Z hex-hd mach
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
Выбрано товаров: 73
