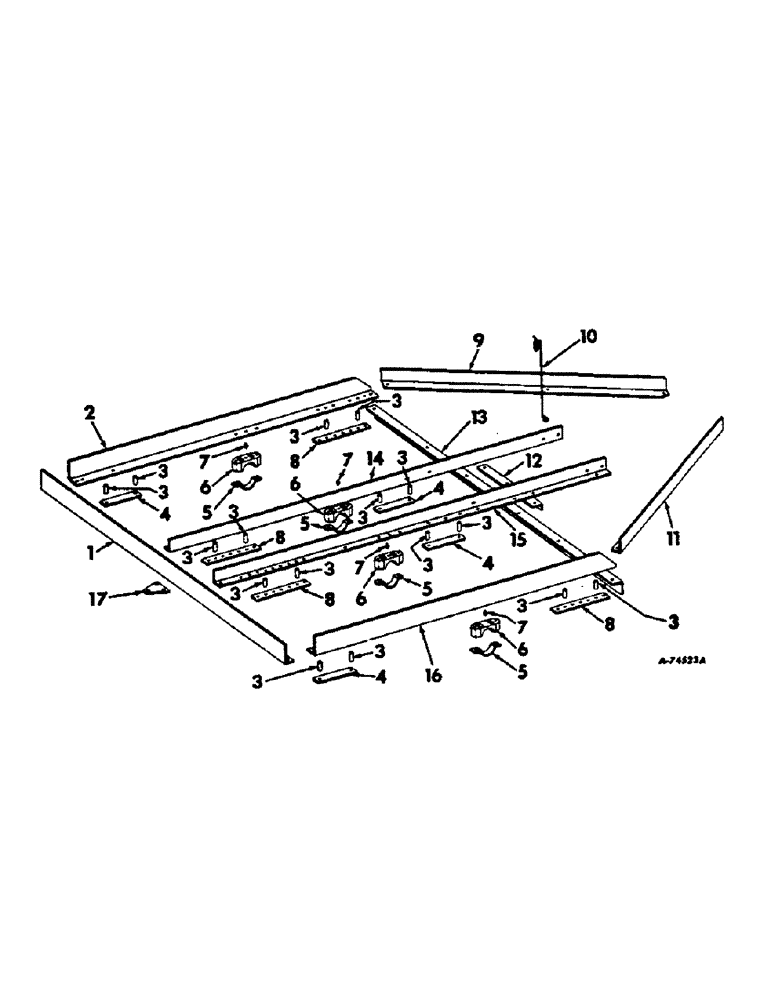

Запчасти Case IH 480 (S-03) - MAIN FRAME
№
Артикул
Название
Примечание
Количество
1
468513R2
ANGLE
rear frame
1шт.
1
541922R1
ANGLE, rear frame, used only with 11 foot 6 in. & 12 foot basic main frames
1шт.
18837R1
BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 2
3/4-10 x 1-3/4 C-Z hex-hd mach
4шт.
280954
NUT,3/4"-10, G5
4шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
4шт.
2
468510R2
ANGLE, outer frame LH
1шт.
2
541919R1
ANGLE, outer frame LH, used only with 11 foot 6 in, & 12 foot basic main frames
1шт.
3
468521R1
SPACER
gang bar, 2 used with each support bar
16шт.
18842R1
BOLT,Hex, 3/4"-10 x 4 1/2", G2
3/4-10 x 4-1/2 C-Z hex-hd mach
16шт.
280954
NUT,3/4"-10, G5
16шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
16шт.
4
468519R1
BAR
short gang bar support, note
4шт.
5
540979R1
BEARING CAP,3"
CAP, wheel shaft bearing, replaces 468518R1
4шт.
18842R1
BOLT,Hex, 3/4"-10 x 4 1/2", G2
3/4-10 x 4-1/2 C-Z hex-hd mach
6шт.
18843R1
BOLT
3/4-10 x 5 C-Z hex-hd mach
2шт.
280954
NUT,3/4"-10, G5
8шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
8шт.
6
468517R1
BEARING
wheel shaft, order bearing, 491921R1
4шт.
6
491921R1
CYLINDER END CAP
BEARING, wheel shaft
4шт.
7
126121
LUBE NIPPLE,1/8"-27 NPT x 1.36" lg
FITTING, 1/8-27 1-1/4 long lub, used with bearing, 468517R1
4шт.
7
219-8
LUBE NIPPLE,1/4" - 28 NPTF
FITTING, 1/4-28 str-lub, used with bearing, 491921R1
4шт.
8
468520R1
BAR
long gang bar support, note
4шт.
8
541925R1
BAR, long gang bar support, used only with 11 foot 6 in. & 12 foot basic main frames
1шт.
18842R1
BOLT,Hex, 3/4"-10 x 4 1/2", G2
3/4-10 x 4-1/2 C-Z hex-hd mach
8шт.
280954
NUT,3/4"-10, G5
8шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
8шт.
9
468515R1
ANGLE, front diagonal brace LH
1шт.
9
541923R1
ANGLE, front diagonal brace LH, used only with 11 foot 6 in. & 12 foot basic main frames
1шт.
18837R1
BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 2
3/4-10 x 1-3/4 C-Z hex-hd mach
1шт.
280954
NUT,3/4"-10, G5
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
1шт.
10
651793R2
SUPPORT
flexible hose
1шт.
18839R1
BOLT,Hex, 3/4" x 2 1/4"
3/4-10 x 2-1/4 C-Z hex-hd mach
1шт.
280954
NUT,3/4"-10, G5
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
1шт.
467750R1
WASHER
25/32 x 1-1/2 x 11 ga C-Z
1шт.
11
468516R1
ANGLE, front diagonal brace RH
1шт.
11
541924R1
ANGLE, front diagonal brace RH, used only with 11 foot 6 in. & 12 foot basic main frames
1шт.
18837R1
BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 2
3/4-10 x 1-3/4 C-Z hex-hd mach
1шт.
280954
NUT,3/4"-10, G5
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
1шт.
12
468522R2
SUPPORT, angle cylinder
1шт.
280374
NUT,Hex, 5/8" - 11, Gr 5
5/8-11 C-Z hex
2шт.
271548
BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5
SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
13
468512R2
ANGLE, front frame
1шт.
13
541921R1
ANGLE, front frame, used only with 11 foot 6 in. & 12 foot basic main frames
1шт.
18837R1
BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 2
3/4-10 x 1-3/4 C-Z hex-hd mach
2шт.
18838R1
BOLT, 3/4-10 x 2 C-Z hex-hd mach Hex, 3/4"-10 x 2", G2
2шт.
280954
NUT,3/4"-10, G5
4шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
4шт.
14
468508R2
ANGLE, inner frame LH
1шт.
14
541917R1
ANGLE, inner frame LH, used only with 11 foot 6 in. & 12 foot basic main frames
1шт.
15
468509R2
ANGLE, inner frame RH
1шт.
15
541918R1
ANGLE, inner frame RH, used only with 11 foot 6 in. & 12 foot basic main frames
1шт.
16
468511R2
ANGLE, outer frame RH
1шт.
16
541920R1
ANGLE, outer frame RH, used only with 11 foot 6 in. & 12 foot basic main frames
1шт.
17
468514R1
BAR
PLATE, rear hitch
1шт.
18458R1
BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd
5/8-11 x 1-3/4 C-Z hex-hd mach
2шт.
280374
NUT,Hex, 5/8" - 11, Gr 5
5/8-11 C-Z hex.
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
Выбрано товаров: 61
