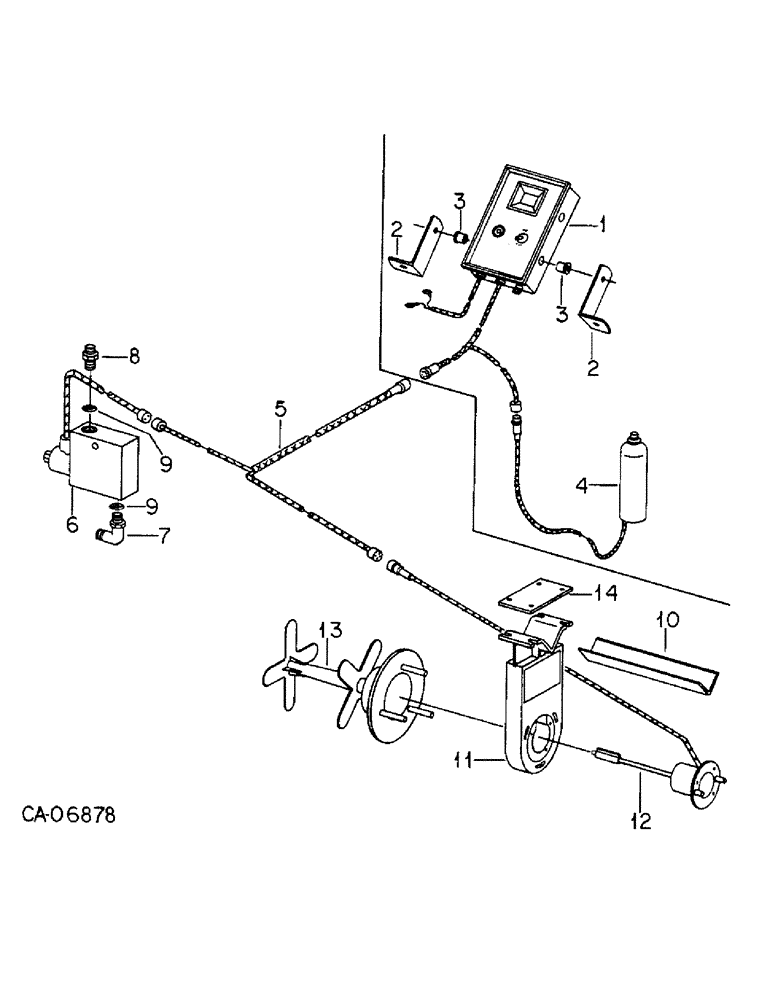

Запчасти Case IH 480 (S-35) - MEMORY DEPTH CONTROL

1

139686C1

PANEL

CONSOLE ASSY

1шт.

2

139922C1

BRACKET

mounting

2шт.

19803R1

BOLT,Hex, 1/4" - 20 x 7/8", Gr 2

1/4 x 7/8 type 1

4шт.

3

139923C1

NUT

expansion

4шт.

4

139693C1

HANDLE

ASSY, switch

1шт.

5

131394C1

HARNESS

implement

1шт.

6

139523C91

VALVE, EDC solenoid

1шт.

7

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 o-ring boss

1шт.

8

9403217

HYD CONNECTOR,7/8"-14, 37 Degree

CONNECTOR, 7/8-14 o-ring boss

1шт.

9

876107C1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

7/8 OD tube

3шт.

10

139713C1

ANGLE

bracket support

1шт.

11

139711C1

BRACKET

sensor mounting

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

147526C1

NUT

1/4-20 flange lock

4шт.

12

139688C1

POTENTIOMETER

Sensor

1шт.

13

139690C1

INSERT

sensor

1шт.

14

139876C1

PLATE, mounting

1шт.

27805R1

SCREW,Hex Wash Hd, #8 x 1/2"

no. 8-18 x 1/2 h/whd tap

1шт.

436665

SCREW

no. 6 x 1/2 znp p/hds mach

3шт.

138526

LOCK WASHER

no. 6 int tooth lock

3шт.

TAPE, 3/4 in., use 36 inch from bulk roll marked 996908R1

1шт.
