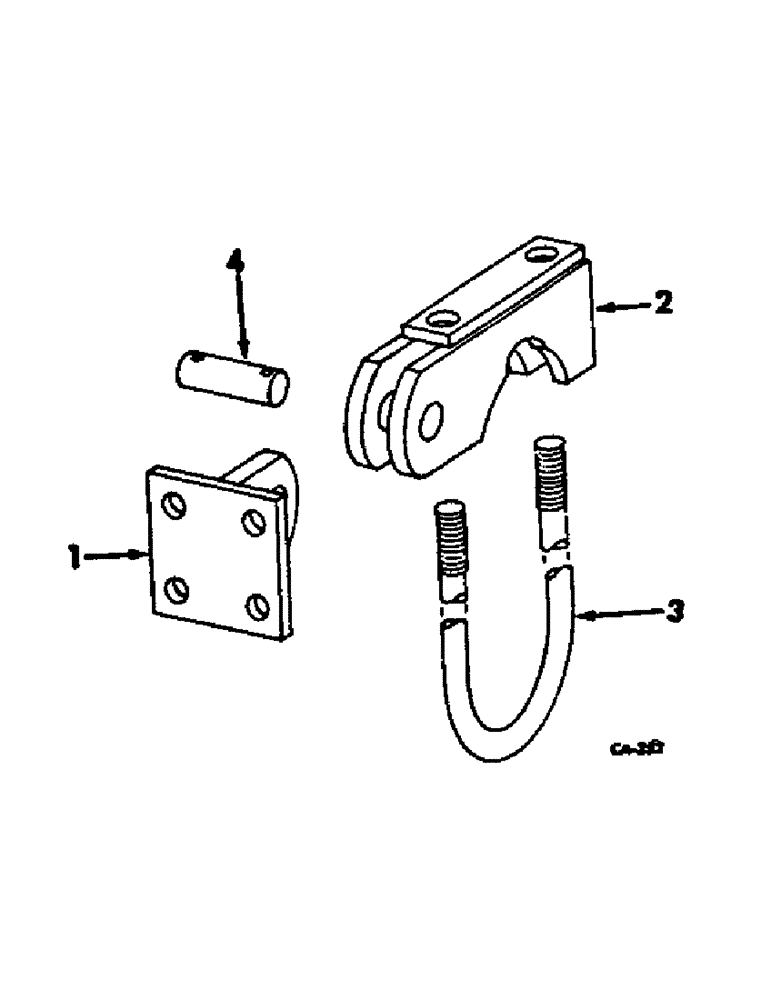

Запчасти Case IH 480 (S-31) - WHEEL AXLE CLAMP ATTACHMENT, MULCHER TO 4 IN. AXLE

1

540022R1

BRACKET, mounting

2шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8-11 x 1-1/2 C-Z hex-hd mach

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

2

540018R1

CLAMP, 4 in. wheel axle

2шт.

3

540020R1

U-BOLT, axle clamp

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

4

540021R1

PIN, mounting bracket

2шт.

20341R1

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.
