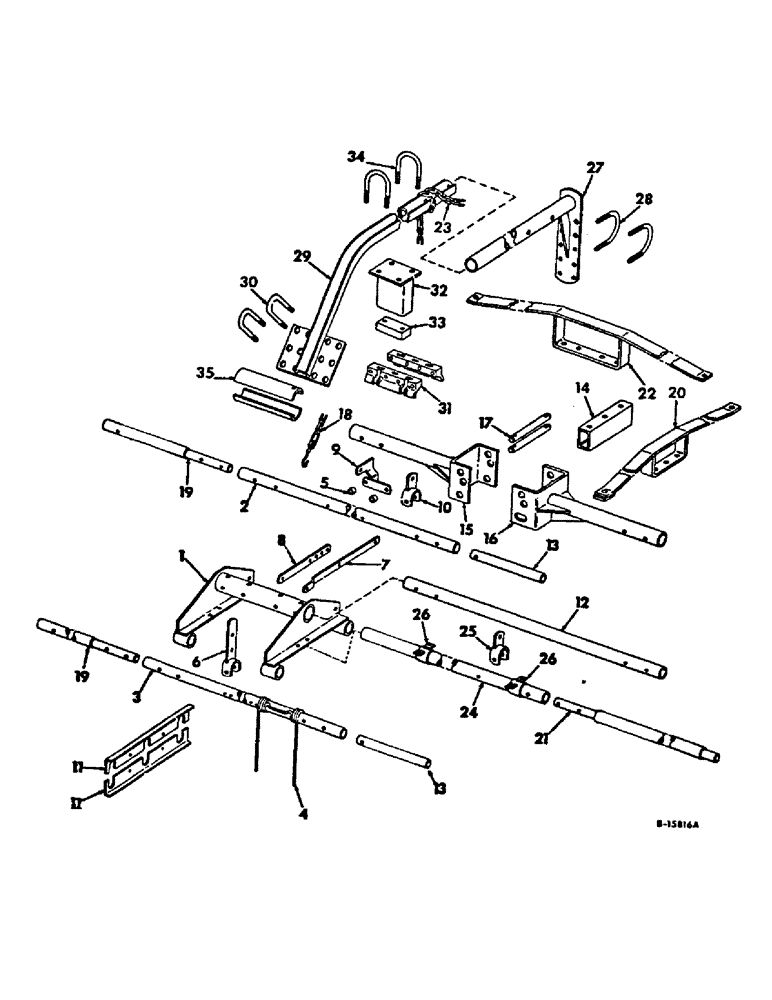

Запчасти Case IH 480 (S-26) - MULCHER ATTACHMENT, MACHINES BUILT 1971 TO 1979

1

485614R2

FRAME

ASSY, 3 ft. 6 in., 2 used on units K thru P

1шт.

1

485615R2

FRAME

ASSY, 4 ft. 9 in., 1 used on units K, L and M

1шт.

1

485616R2

FRAME

ASSY, 6 ft., 1 used on units K, L, M, T, U, V and AB, 2 used on units N thru S and AA, 3 used on units G, H and J, 4 used on units W, X and Y

1шт.

1

490549R1

FRAME

ASSY, 7 ft. 3 in., 1 used units T, U V and AB , 2 used on units A thru F

1шт.

2

485589R1

TUBE

BAR, 1st tooth, 1 per frame assy, 485614R2

1шт.

2

485596R1

TUBE

BAR, 1st tooth, 1 per frame assy, 485615R2

1шт.

2

485599R1

TUBE

BAR, 1st tooth, 1 per frame assy, 485616R2

1шт.

2

490550R1

TUBE

BAR, 1st tooth, 1 per frame assy, 490549R1

1шт.

3

485590R1

TUBE

BAR, 3rd tooth, 1 per frame assy, 485614R2

1шт.

3

485597R1

TUBE

BAR, 3rd tooth, 1 per frame assy, 485615R2

1шт.

3

485600R1

TUBE

BAR, 3rd tooth, 1 per frame assy, 485616R2

1шт.

3

490551R1

TUBE

BAR, 3rd tooth, 1 per frame assy, 490549R1

1шт.

4

72901C1

TOOTH

spring

1шт.

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

shoulder, 2 per tooth

1шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 cdp hex lock, 2 per tooth

1шт.

5

485591R1

SPACER

BUSHING, tooth, used w/frame assy 485614R2

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

SCREW, 3/8-16 x 2 C-Z hex-hd cap

2шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 cdp hex. lock

2шт.

6

485592R1

ARM

HANDLE ASSY, 1 per frame assy

1шт.

180159

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

SCREW, 7/16-14 x 2-3/4 C-Z hex-hd cap

2шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 cdp hex. lock

2шт.

7

485593R1

SUPPORT

REACH, handle, 1 per frame assy

1шт.

8

485594R1

BAR

REACH, adjusting, 1 per frame assy

1шт.

21658R1

HEADED PIN,7/16" x 1"

PIN, 7/16 x 1 zn-pltd std-hd

4шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

3шт.

480523R1

HAIR PIN COTTER

quick attachable

1шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

3шт.

9

485595R1

SUPPORT

POST ASSY, 1 per frame assy, 485614R2

1шт.

10

485601R1

ARM

POST ASSY, 1 per frame assy, 485615R2, 485616R2 and 490549R1

1шт.

11

485598R1

SUPPORT

RAIL, center, 2 per frame assy, 485615R2, 485616R2 and 490549R1

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

12

548393R1

TUBE

spanner, 1 used on units F, AA and AB, 2 used on units G, H and J

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 two-way lock C-Z

2шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

SCREW, 1/2 x 3-1/4 C-Z hex-hd cap

2шт.

12

487730R1

TUBE, spanner, 1 used on units K thur Y

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 two-way lock C-Z

4шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

SCREW, 1/2 x 3-1/4 C-Z hex-hd cap

4шт.

13

487726R1

TUBE

CONNECTOR, tooth bar

2шт.

14

488263R1

TRUSS ASSY, used w/units K thru Y

2шт.

271725

SNAP RING,Hex, 5/8" - 11 x 2 1/2", Gr 5

SCREW, 5/8-11 x 2-1/2 C-Z hex-hd cap

2шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

2шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2шт.

271783

CAGE,Hex, 3/4" - 10 x 5", Gr 5

SCREW, 3/4-10 x 5 C-Z hex-hd cap

4шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

15

487729R1

HINGE ASSY, outer hinge, used w/units A thru J, AA and AB

1шт.

15

487732R1

HINGE ASSY, outer hinge, used w/units K thru Y

2шт.

25529R1

NUT,3/4"-10, G8

3/4-10 hex. type 8

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 two-way lock C-Z

4шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

SCREW, 1/2-13 x 3-1/4 C-Z hex-hd cap

4шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

1шт.

16

487727R1

SUPPORT

HINGE ASSY, inner hinge, used w/units A thru J, AA and AB

1шт.

16

487733R1

HINGE ASSY, inner hinge, used w/units K thru Y

2шт.

280954

NUT,3/4"-10, G5

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 two-way lock C-Z

4шт.

180199

SCREW,Hex, 9/16" - 12 x 1", Gr 5

1/2-13 x 3-1/4 C-Z hex-hd cap

4шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

1шт.

17

487728R1

PIN, hinge, used w/units A thru J, AA and AB

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

373025R91

PIN ASSY.

PIN, quick attachable cotter

1шт.

668752R1

WASHER

29/32 x 1-1/4 x 16 ga C-Z

1шт.

17

487728R1

PIN, hinge, used w/units K thru Y

4шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

2шт.

373025R91

PIN ASSY.

PIN, quick attachable cotter

2шт.

668752R1

WASHER

29/32 x 1-1/4 x 16 ga C-Z

2шт.

18

487734R1

NUT

CHAIN W/SPRING, snap swivel, used w/units K thru Y

2шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 MF two-way lock

2шт.

18803R1

BOLT,7/16" x 3 1/2", Gr 1

SCREW, 7/16-14 x 3-1/2 C-Z hex-hd mach

2шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

4шт.

19

487777R1

TUBE

BAR ASSY, tooth extension outer, 4 used w/units D, E and F, 6 used w/units D, E and F with center tooth bar

1шт.

20

488262R1

TRUSS ASSY, front, used w/units K thru Y

1шт.

21

487731R1

CONNECTOR, tooth bar

1шт.

22

546211R1

CLEVIS

2шт.

18787R1

BOLT,Hex, 3/8"-16 x 4", G2

3/8 x 1 znd hex-hd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

23

487778R1

SHIM, tube

4шт.

24

485602R1

TUBE

BAR, 2nd tooth, 1 per frame assy, 485614R2

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

2шт.

24

485604R1

TUBE

BAR, 2nd tooth, 1 per frame assy, 485615R2

1шт.

24

485606R1

BAR, 2nd tooth, 1 per frame assy, 485616R2

1шт.

24

490552R1

TUBE

BAR, 2nd tooth, 1 per frame assy, 490549R1

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

3шт.

25

485601R1

ARM

POST ASSY, center

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 two-way lock C-Z

1шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

1шт.

Q3542

HEADED PIN,11.1mm OD x 38.1mm L

PIN, 7/16 x 1-1/2 C-Z std-hd

1шт.

NLS

NO LONGER SERVICED

SCREW, 7/16-14 x 2-3/4 C-Z hex-hd cap

1шт.

26

485603R1

BUSHING

ASSY, center bar

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 C-Z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

27

490687R1

CLAMP

tail plate

4шт.

28

490688R1

BOLT,1/2" - 13 x 4 1/2"

U-BOLT, tail plate clamp

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.

29

546208R1

ARM ASSY, carrier

2шт.
