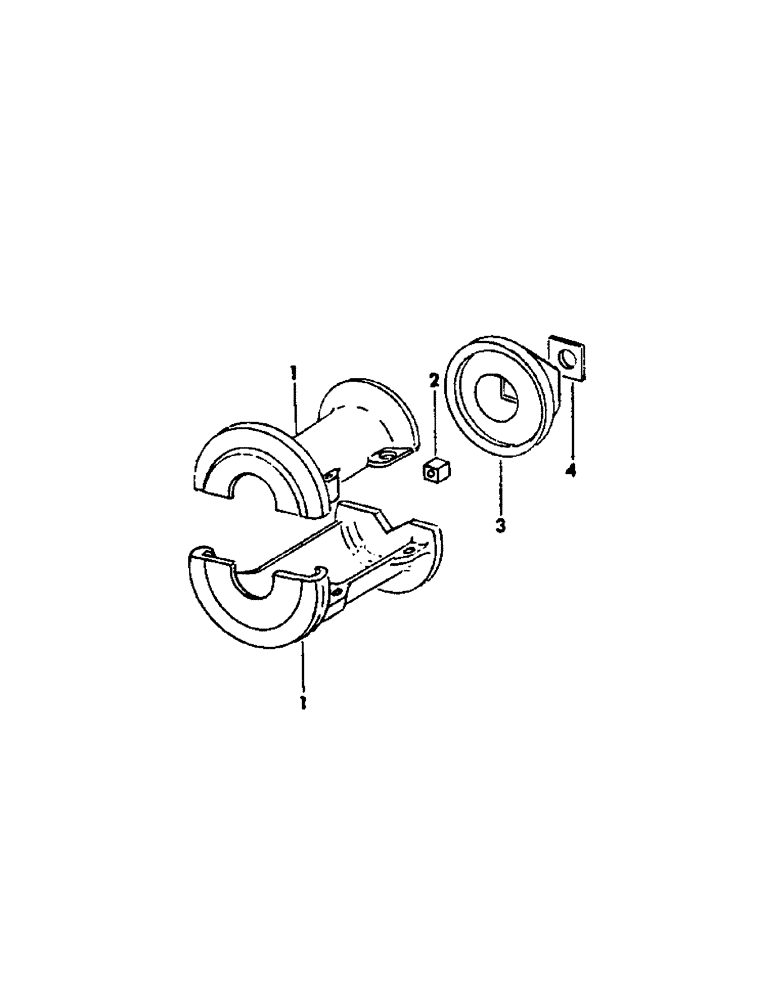

Запчасти Case IH 480 (S-22) - FURROW FILLER LESS DISK BLADE, 1976 AND SINCE

1

100693C1

SPOOL

7.48" Long, furrow filler, serial no. and below, Years: 01-JAN-76-31-DEC-80

4шт.

1

129797C1

HUB

SPOOL, 9.25" Long, furrow filler, serial no. and above, Start Year: 01-JAN-81

4шт.

2

100694C1

PLATE,SMALL SQUARE

BLOCK, driver

2шт.

3

P4165A

WASHER

head

2шт.

271819

BOLT,Hex, 7/8" - 9 x 3", Gr 5

7/8 x 3 type 5

2шт.

131047

WASHER,7/8"

7/8"

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 type 1

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

4

100695C1

SPACER

2шт.
