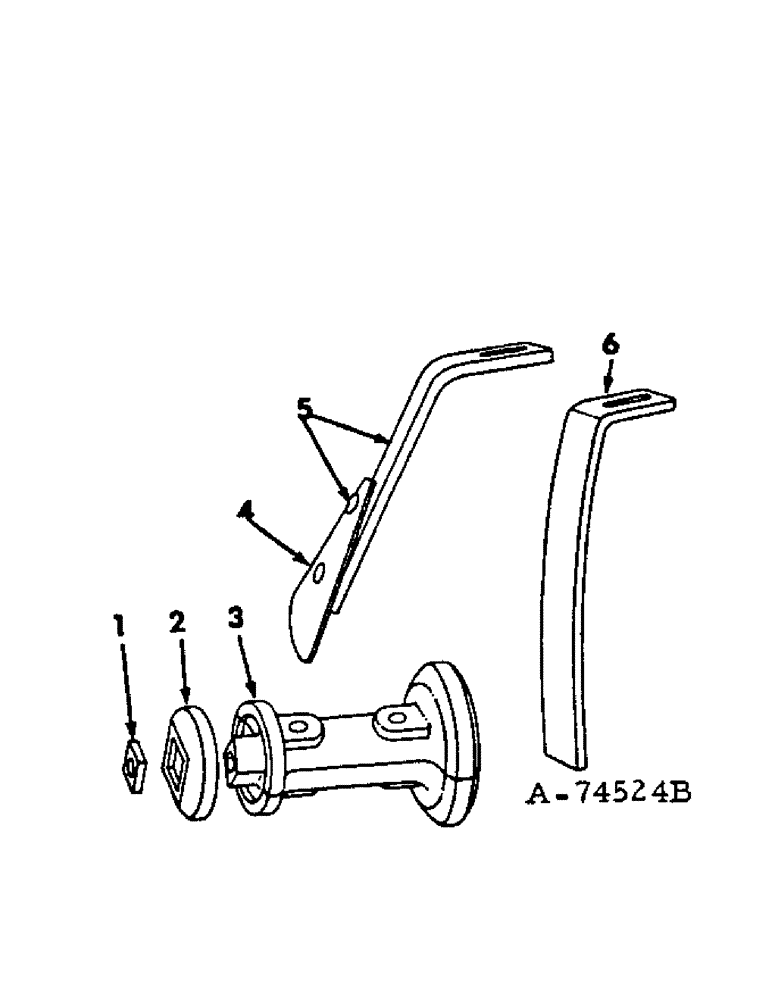

Запчасти Case IH 480 (S-21[A]) - FURROW FILLER AND FURROW FILLER SCRAPER MACHINES BUILT 1966 TO 1976

1

466986R1

BLOCK

SPACER, arbor bolt head washer

2шт.

2

P4165A

WASHER

arbot bolt head

2шт.

3

482970R2

SPOOL

furrow filler

4шт.

19475R1

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 2

1/2-13 x 3-1/4 C-Z hex-hd mach

4шт.

18840R1

BOLT

3/4-10 x 2-3/4 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 C-Z hex. jam

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

4

483096R1

STRAP

BLADE, scraper

1шт.

4

541049R1

HALF BLADE

BLADE, LH heavy duty scraper

1шт.

4

541050R1

HALF BLADE

BLADE, RH heavy duty scraper, 1 per std scraper assy

1шт.

49-614

RIVET,Tr Hd, 3/8" x 7/8"

3/8 x 7/8 truss-hd so I, 1 per blade

1шт.

5

483139R91

BLADE

SCRAPER ASSEMBLY, LH

1шт.

5

540461R91

BLADE

SCRAPER ASSE, LH heavy duty

1шт.

5

483140R91

BLADE

SCRAPER ASSEMBLY, RH

1шт.

5

540462R91

BLADE

SCRAPER ASSY, RH heavy duty

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2-13 x 1-1/2 C-Z sq-nk crg, 1 per std scraper assy

1шт.

540464R1

BOLT,1/2" - 13 x 1.25", Cl 2

1/2-13 x 1-1/4 znd sq-hd mach, 1 per heavy duty scraper assy

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1, 1 per std scraper assy

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per scraper assy 1/2"-13, G5

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5, 1 per std scraper assy

1шт.

120384

WASHER,1/2"

LOCK, , 1 per scraper assy 1/2"

1шт.

6

469408R1

SCRAPER, disk convex LH

1шт.

6

469409R1

SCRAPER, disk convex RH

1шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8-11 x 2-1/2 C-Z sq-nk crg

2шт.

M42195

WASHER, 1-1/2 x 1-1/4 x 3/8

2шт.
