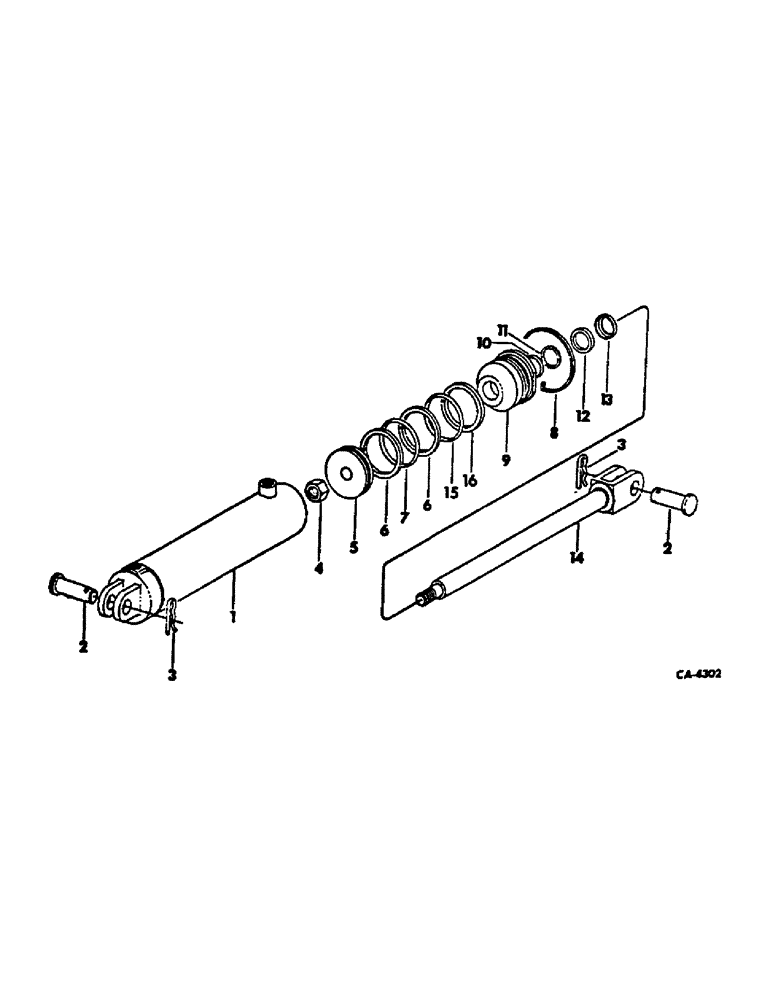

Запчасти Case IH 480 (S-19) - HYDRAULIC CYLINDER, MACHINES BUILT AFTER 1973

61107C92

CYLINDER

ASSY, hydraulic 3-1/2 x 16 in., order cyl assy 71958C91

1шт.

1272149C92R

REMAN-HYD CYLINDER

480 INTERNATIONAL HARVESTER DISK HARROW, ASSY, hydraulic, Reman for New PN 61107C92

1шт.

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

1

61108C1

CYLINDER

BODY ASSY

1шт.

1

1272149C92R

REMAN-HYD CYLINDER

480 INTERNATIONAL HARVESTER DISK HARROW, BODY ASSY, Reman for New PN 61108C1

1шт.

1

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

2

60909C1

PIN

cylinder pivot

2шт.

3

520175R1

CLIP

PIN, quick-attachable cotter

2шт.

4

9413974

LOCK NUT,7/8"-14, GB

NUT, 7/8-14 lock

1шт.

5

547724R1

PISTON

1шт.

6

375936R1

BACK-UP RING

WASHER, back-up

2шт.

7

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 x 3/16

1шт.

8

405002R1

RING

RETAINER, front head

1шт.

9

60299C2

HEAD

front

1шт.

10

378735R1

O-RING,1.475" ID x 0.21" Width

1-1/2 x 1-7/8 x 3/16

1шт.

11

403622R1

BACK-UP RING

WASHER, quad ring back-up

2шт.

12

383770R1

WASHER

WIPER, piston rod

1шт.

13

383771R1

SEALING WASHER

RETAINER, piston rod wiper

1шт.

14

547742R1

ROD

ASSY, piston

1шт.

REF#14 PART HAS A YOKE END 11/22/96

1шт.

15

343940R1

O-RING,3.234" ID x 0.139" Width

3-1/4 x 3-1/2 x 1/8

1шт.

16

381107R1

BACK-UP RING

WASHER, back-up

1шт.

548392R92

SEAL KIT

PACKAGE, o-ring service, consists of (1) washer 383770R1, (2) washer 383771R1, (1) washer 404015R1, (1) o-ring 343940R1, (1) o-ring 378735R1, (1) washer 403622R1, (2) washer 375936R1, (1) o-ring 378827R1, (1) nut 9413974, (1) reatainer 405002R1

1шт.

2951852R1

PRODUCT GRAPHIC, International, hydraulic cylinder label

1шт.
