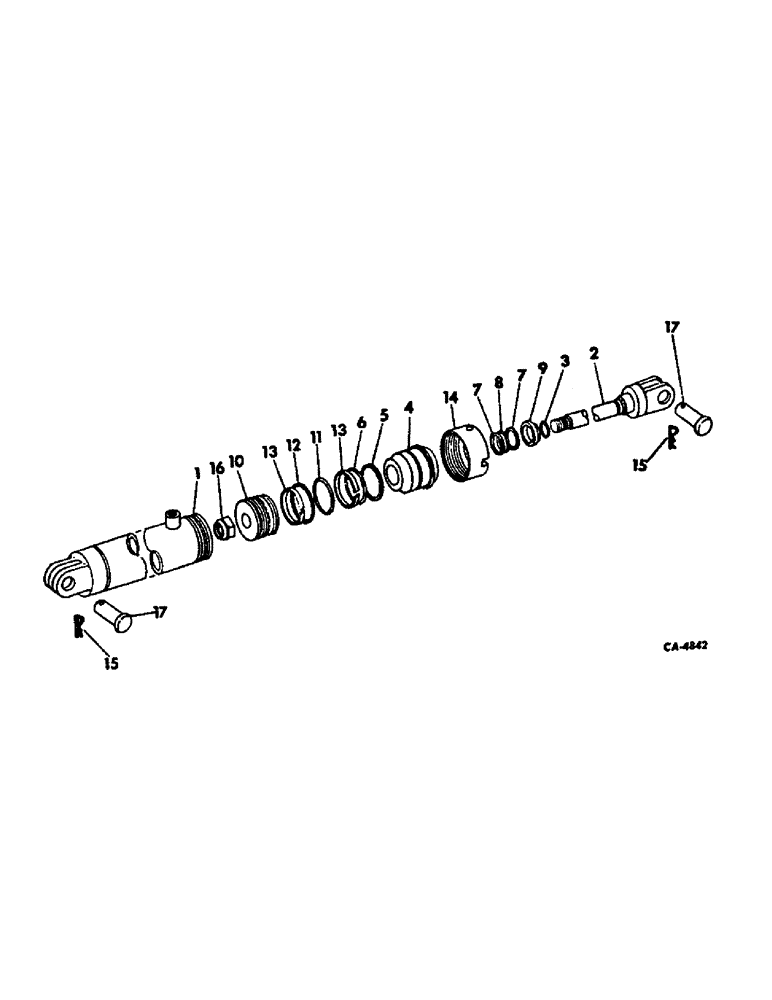

Запчасти Case IH 480 (S-18) - HYDRAULIC CYLINDER, 3-1/2 X 16 IN., DOUBLE ACTING, WELDED

71958C91

CYLINDER

ASSY, hyd

1шт.

1

387359R12

TUBE

PIPE ASSY, hyd cyl

1шт.

2

128016C1

ROD ASSY.

ROD ASSY, piston

1шт.

3

350818R1

O-RING,0.984" ID x 0.139" Width

1 x 1-1/4 x 1/8 piston rod static

1шт.

4

387353R1

END

HEAD, cyl front

1шт.

4

1272149C92R

REMAN-HYD CYLINDER

480 INTERNATIONAL HARVESTER DISK HARROW, HEAD, cyl front, Reman for New PN 387353R1

1шт.

4

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

5

381088R1

BACK-UP RING

front head back-up

1шт.

6

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 x 3/16 front head

1шт.

7

387362R2

BACK-UP RING

WASHER, piston rod back-up

2шт.

8

403995R1

RING

quad

1шт.

9

403845R1

WIPER SEAL

WIPER, piston rod

1шт.

10

387354R1

PISTON

hyd

1шт.

11

380910R1

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

3 x 3-3/16 x 3/32 piston seal

1шт.

12

381086R1

RING

SEAL, piston

1шт.

13

383005R1

RING

piston bearing

2шт.

14

381089R1

RING

retaining

1шт.

15

520175R1

CLIP

PIN, quick attachable cot.

2шт.

16

25126R1

LOCK NUT,1 1/8"-12, GC

NUT, 1-1/8-12 PHC piston rod lock

1шт.

17

127892C1

PIN

cylinder pivot headed

2шт.

387881R92

SEAL KIT

PACKAGE, o-ring service, consists of (1) o-ring 380794R1, (1) o-ring 378827R1, (1) o-ring 380910R1, (1) ring 403995R1, (1) washer 381088R1, (2) washer 387362R1, (1) seal 381086R1, (2) ring 383005R1, (1) wiper 403845R1

1шт.

2751852R1

PRODUCT GRAPHIC, International hyd cylinder label

1шт.

2752530R3

PRODUCT GRAPHIC, hyd cyl identification label

1шт.
