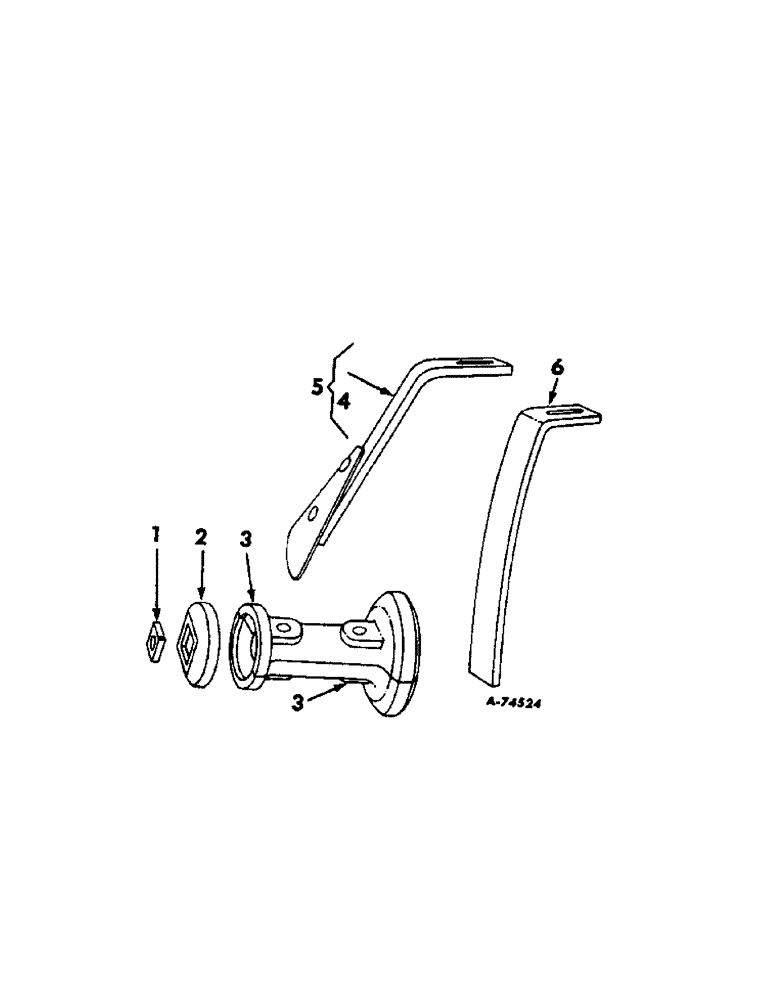

Запчасти Case IH 48 (H-11[A]) - FURROW FILLER SCRAPER AND SCRAPER ATTCHMENT

1

466986R1

BLOCK

SPACER, arbor bolt-hd washer

1шт.

2

P4165

WASHER, arbor bolt-hd

2шт.

3

466949R1

SPOOL

furrow filler

4шт.

BOLT W/NUT, 3/4 x 2-1/2 crg

2шт.

218443

NUT

3/4 jam

2шт.

BOLT W/NUT, 1/2 x 3-1/4 mach

4шт.

WASHER, 1/2 lock

4шт.

WASHER, 3/4 lock

2шт.

4

465062R1

BLADE

scraper, for units C, D, E, F, G, H, J and K

1шт.

BOLT W/NUT, 1/2 x 1-1/2 crg

2шт.

RIVET, 3/8 x 1-1/8 truss-hd or wagon box-hd

2шт.

WASHER, 1/2 lock

2шт.

5

483139R91

BLADE

SCRAPER ASSY, LH, will work for 468566R91, for units C thru K

1шт.

5

483140R91

BLADE

SCRAPER ASSY, RH, will work for 468567R91, for units C thru K

1шт.

6

469408R1

SCRAPER, disk convex LH, for unit C, D, E, F, G, H, J and K

1шт.

6

469409R1

SCRAPER, disk convex RH, for unit C, D, E, F, G, H, J and K

1шт.

BOLT W/NUT, 5/8 x 2-1/2 crg

2шт.

M42195

WASHER, 1-1/2 x 1-1/4 x 3/8 sq

2шт.
