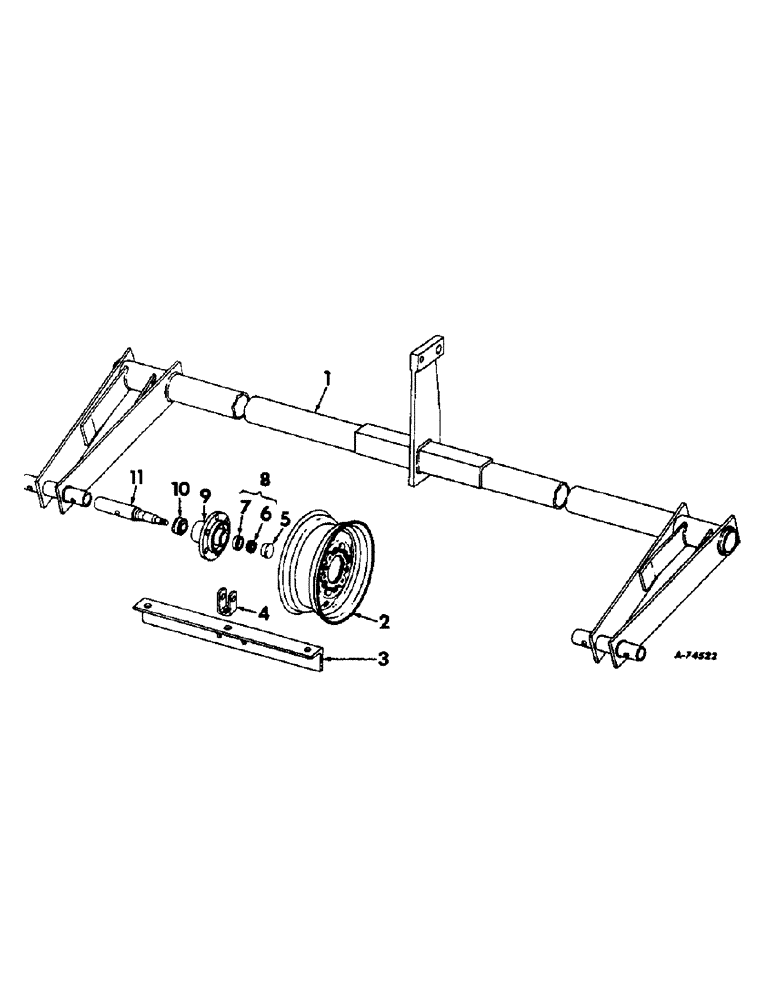

Запчасти Case IH 48 (H-10) - AXLE, HUB AND WHEEL

1

468557R93

AXLE

ASSY, wheel, 1 used units A thru D, L and M

1шт.

451008

SHAFT

NUT, 3/8 lock, 4 used units A thru D, L and M

1шт.

SCREW, 3/8 x 2-3/4 cap, 4 used units A thru D, L and M

1шт.

2

622192R91

WHEEL

disk, 15 x 5K, 4 used units A thru D, L and M

1шт.

2

463034R1

RIM

WHEEL, disk, 14 x 5KB, 4 used units A thru D, L and M

1шт.

3

489273R1

ANGLE

transport bracket, will work for 468579R1, 1 used units A thru D, L and M

1шт.

BOLT W/NUT, 5/8 x 1-1/2 mach, 2 used units A thru D, L and M

1шт.

WASHER, 5/8 lock, 2 used units A thru D, L and M

1шт.

4

468580R1

CLEVIS

transport, 1 used units A thru D, L and M

1шт.

BOLT, 3/4 x 5-1/2 mach, 1 used units A thru D, L and M

1шт.

218443

NUT

3/4 jam, 2 used units A thru D, L and M

1шт.

F18422

AXLE PIN

PIN, 3/4 x 2-1/4 dld-std-hd, 1 used units A thru D, L and M

1шт.

520175R1

CLIP

PIN, quick-attachable cotter, 1 used units A thru D, L and M

1шт.

5

663908R1

CAP

hub, 4 used units A thru D, L and M

1шт.

6

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Roller, outer, 4 used units A thru D, L and M

1шт.

7

371883R1

BEARING CUP

Roller outer, 4 used units A thru D, L and M

1шт.

8

371881R91

BEARING ASSY,0.8437" ID x 1.9687" OD x 0.690, 0.55"

ASSY, outer roller, 4 used units A thru D, L and M

1шт.

9

465871R11

HUB

ASSY, wheel, order 465493R1, and six 351079R1

1шт.

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

1/2UNF x 1-5/8 special, 24 used units A thru D, L and M

1шт.

453770R1

WHEEL NUT

1/2UNF conical, 24 used units A thru D, L and M

1шт.

9

465493R1

HUB

wheel, 4 used units A thru D, L and M

1шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2UNF, 1-9/32 spirol, 24 used units A thru D, L and M

1шт.

10

459912R91

BEARING ASSY,1.3755" ID x 2.5635" OD x 0.74"

BEARING ASSY, inner roller, 4 used units A thru D, L and M

1шт.

11

468581R1

SPINDLE

SPINDEL, Wheel, 4 used units A thru D, L and M

1шт.

451008

SHAFT

NUT, 3/8 lock, type LL, 4 used units A thru D, L and M

1шт.

69442D

NUT

3/4-16UNF slt-hed. jam, 4 used units A thru D, L and M

1шт.

PIN, 1/8 x 1-1/4 cotter, 4 used units A thru D, L and M

1шт.

SCREW, 3/8 x 2-3/4 cap, 4 used units A thru D, L and M

1шт.

WASHER, 25/32 x 1-1/4 x 11 ga, 4 used unts A thru D, L and M

1шт.
