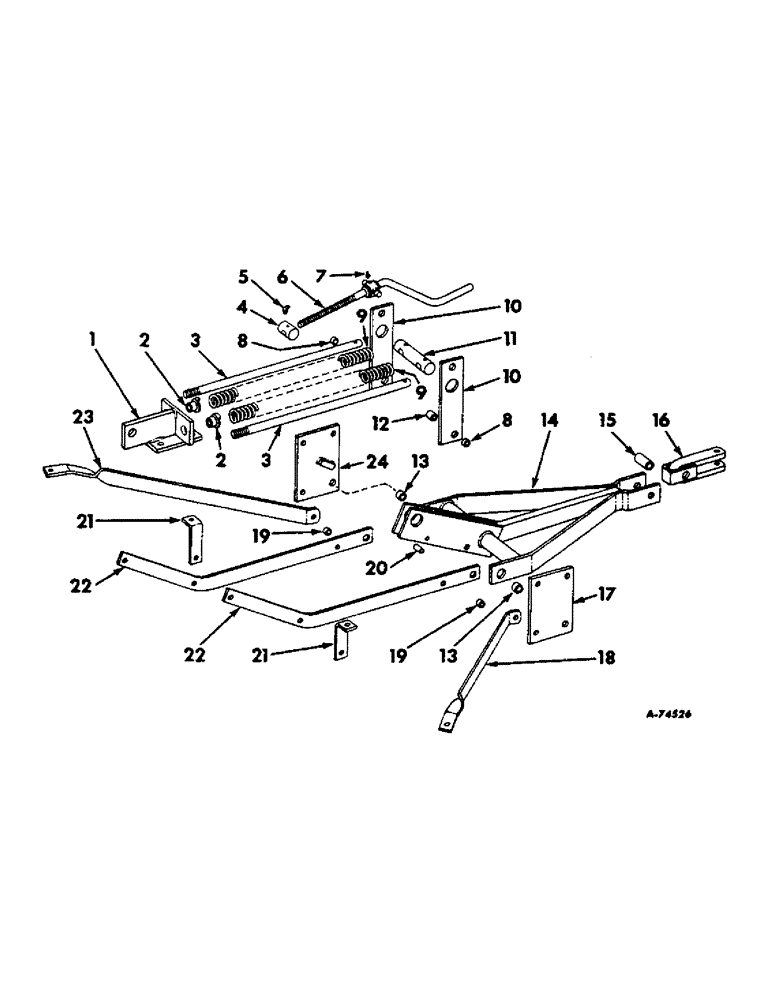

Запчасти Case IH 48 (H-08) - HITCH

1

468538R11

SUPPORT

ASSY, cylinder, 1 used units A thru D, L and M

1шт.

BOLT W/NUT, 5/8 x 1-1/2 mach, 4 used units A thru D, L and M

1шт.

WASHER, 5/8 lock, 4 used units A thru D, L and M

1шт.

2

468537R1

SPRING SEAT

BUSHING, hitch spring, 2 used units A thru D, L and M

1шт.

3

468535R2

GUIDE

spring, 2 used units A thru D, L and M

1шт.

218445

NUT,Jam, 1"-8, G5

1 in. jam, 4 used units A thru D, L and M

1шт.

576482R1

LOCK PIN,5/16" x 2", Slotted

2 used units A thru D, L and M 5/16" x 2", Slotted

1шт.

4

468533R1

LINK

SWIVEL, crank, 1 used units A thru D, L and M

1шт.

5

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4 tapered 45 deg elbow lub, 1 used units A thru D, L and M

1шт.

6

468531R11

SCREW

ASSY, hitch, 1 used units A thru D, L and M

1шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 straight lub, 1 used A thru D, L and M

1шт.

8

468530R1

SPACER,3/4" Pipe x 9/16"

BUSHING, std pipe, 3/4 x 9/16 long, 2 used units A thru D, L and M

1шт.

BOLT W/NUT, 3/4 x 4-1/4 mach, 1 used units A thru D, L and M

1шт.

WASHER, 3/4 lock, 1 used units A thru D, L and M

1шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga, 2 used units A thru D, L and M

1шт.

9

468536R1

SPRING

hitch, 40 coils, 2 used units A thru units A thru D, L and M

1шт.

10

468529R1

ARM

adjusting, 2 used units A thru D, L and M

1шт.

11

489127R1

PIN,50.8mm OD x 208.28mm L

PIVOT, spring guide, will work for 468534R1, 1 used units A thru D, L and M

1шт.

12

582542R1

SPACER,3/4" Pipe x 1 1/4"

pipe, 3/4 x 1-1/4, 1 used units A thru D, L and M

1шт.

13

468528R2

BUSHING

hitch pivot, 2 used units A thru D, L and M

1шт.

NUT, 7/8, 2 used units A thru D, L and M

1шт.

SCREW, 7/8 x 2-3/4 cap, 2 used units A thru D, L and M

1шт.

WASHER, 7/8 lock, 2 used units A thru D, L and M

1шт.

14

471175R91

TRAILER HITCH

HITCH ASSY, 1 used units A thru D, L and M

1шт.

15

468548R1

BUSHING

hitch clevis, 1 used units A thru D, L and M

1шт.

NUT, 7/8, 1 used units A thru D, L and M

1шт.

SCREW, 7/8 x 5-3/4 cap, 1 used units A thru D, L and M

1шт.

WASHER, 7/8 lock, 1 used units A thru D, L and M

1шт.

16

468546R11

CLEVIS

ASSY, hitch, 1 used units A thru D, L and M

1шт.

458188R1

NUT

5/8 uni-torque lock, 1 used units A thru D, L and M

1шт.

SCREW, 5/8 x 2-3/4 cap, 1 used units A thru D, L and M

1шт.

17

471181R91

PLATE

ASSY, hitch RH, 1 used units A thru D, L and M

1шт.

BOLT, 3/4 x 1-3/4 mach, 2 used units A thru D, L and M

1шт.

WASHER, 3/4 lock, 2 used units A thru D, L and M

1шт.

18

468543R2

BRACE

diagonal RH, 1 used units A thru D, L and M

1шт.

19

587660R1

SPACER, order PO10780, 2 used units L and M

1шт.

19

PO10780

SPACER,3/4" Pipe x 7/16"

2 used units A thru D, L and M

1шт.

20

K11064

SPACER,3/8" Pipe x 1 1/4"

pipe, 3/8 x 1-1/4, 1 used units A thru D, L and M

1шт.

BOLT W/NUT, 7/16 x 2-3/4 mach, 1 used units A thru D, L and M

1шт.

WASHER, 7/16 lock, 1 used units A thru D, L and M

1шт.

21

468545R1

SUPPORT, hitch brace, 2 used units A thru D, L and M

1шт.

BOLT W/NUT, 3/4 x 2-1/4 mach, 2 used units A thru D, L and M

1шт.

WASHER, 3/4 lock, 2 used units A thru D, L and M

1шт.

22

468544R1

BRACE

center hitch, 2 used units A thru D, L and M

1шт.

BOLT W/NUT, 5/8 x 1-1/2 mach, 4 used units A thru D, L and M

1шт.

BOLT W/NUT, 5/8 x 2-1/2 mach, 2 used units A thru D, L and M

1шт.

WASHER, 5/8 lock, 6 used units A thru D, L and M

1шт.

23

468542R2

SUPPORT

BRACE, diagonal LH, 1 used units A thru D, L and M

1шт.

24

471180R91

BRACKET

PLATE ASSY, hitch LH, 1 used units A thru D, L and M

1шт.

NUT, 3/4, 2 used units A thru D, L and M

1шт.

SCREW, 3/4 x 1-3/4 cap, 2 used units A thru D, L and M

1шт.

WASHER, 3/4 lock, 2 used units A thru D, L and M

1шт.
