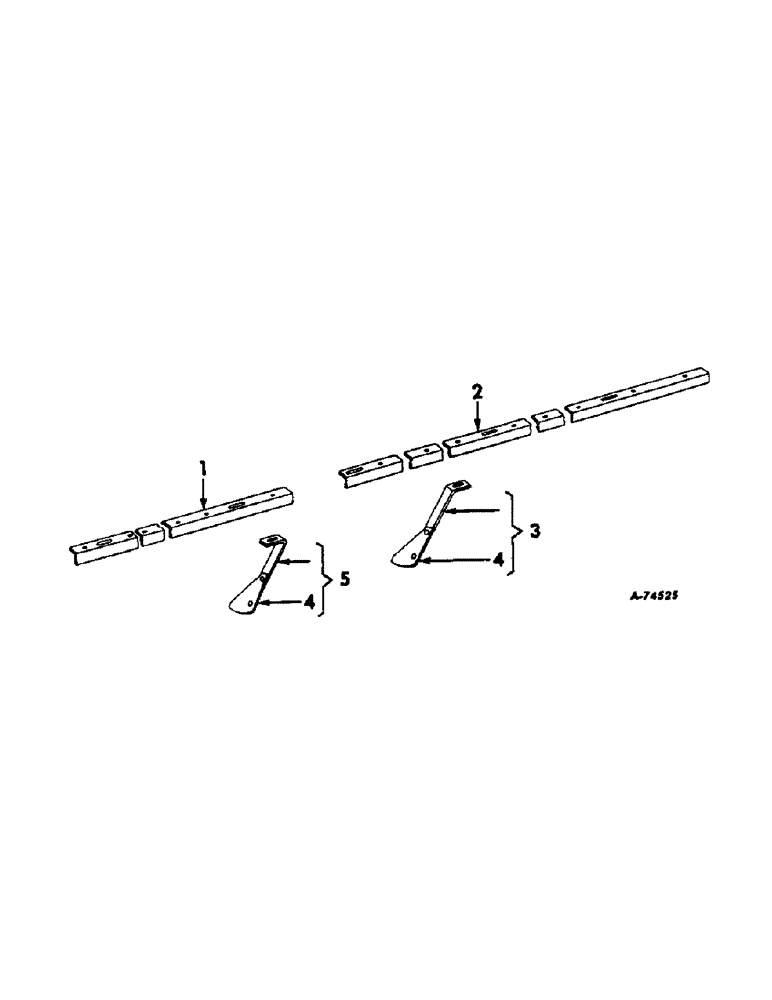

Запчасти Case IH 48 (H-06) - SCRAPERS

1

474429R2

ANGLE

scraper bar extension LH front, will work for 468558R1, 1 for units K and M

1шт.

1

468560R2

BAR

ANGLE, scraper bar extension LH front, 1 for units J and L

1шт.

1

470986R2

ANGLE, scraper bar extension LH front, 1 for unit F

1шт.

1

474418R2

ANGLE

scraper bar extension LH front, will work for 470979R1, 1 for unit

1шт.

BOLT W/NUT, 5/8 x 1-3/4 crg, 2 for units F, H thru M

1шт.

WASHER, 5/8 lock, 2 for units F, H thru M

1шт.

1

474428R2

ANGLE

scraper bar extension, will work for 468559R1, 1 for units K and M

1шт.

1

468560R2

BAR

ANGLE, scraper bar extension RH front, will work for 468561R1, 1 for units J and L

1шт.

1

470987R2

ANGLE, scraper bar extension, 1 used unit F

1шт.

1

474417R2

ANGLE

scraper bar extension RH front, will work for 470980R1, 1 sued with H

1шт.

BOLT W/NUT, 5/8 x 1-3/4 crg, 2 used unit F, H thru M

1шт.

WASHER, 5/8 lock, 2 used units F, H thru M

1шт.

1

479299R2

BAR

ANGLE, scraper bar extension LH rear, will work for 468564R1, 1 used units K and M

1шт.

1

479297R2

BAR

ANGLE, scraper bar extension LH rear, will work for 468562R1, 1 used unit J and L

1шт.

1

474414R2

ANGLE

scraper bar extension LH rear, will work for 470984R1, 1 used unit G

1шт.

474428R2

ANGLE

scraper bar extension LH rear, will work for 470981R1, 1 used unit H

1шт.

1

474417R2

ANGLE

scraper bar extension LH rear, will work for 470988R1, 1 used unit F

1шт.

1

470983R2

ANGLE

scraper bar extension LH rear, will work for 470990R1, 1 used unit E

1шт.

BOLT W/NUT, 5/8 x 1-3/4 crg, 2 used units E thru M

1шт.

WASHER, 5/8 lock, 2 used units E thru M

1шт.

1

479300R2

BAR

ANGLE, scraper bar extension RH rear, will work for 468565R1, 1 used units K and M

1шт.

1

479297R2

BAR

ANGLE, scraper bar extension RH rear, will work for 468563R1, 1 used units J and I

1шт.

1

474414R2

ANGLE

scraper bar extension RH rear, will work 470985R1, 1 used unit G

1шт.

1

474429R2

ANGLE

scraper bar extension RH rear, will work for 470982R1, 1 used unit H

1шт.

1

474418R2

ANGLE

scraper bar extension RH rear, will work for 470989R1, 1 used unit F

1шт.

1

470983R2

ANGLE

scraper bar extension RH rear, will work for 470991R1, 1 used unit E

1шт.

BOLT W/NUT, 5/8 x 1-3/4 crg, 2 used units E, F, J thru M

1шт.

WASHER, 5/8 lock, 2 used unit E, F, J thru M

1шт.

1

470983R2

ANGLE

scraper bar extension, 2 used unit G

1шт.

1

470992R2

ANGLE, scraper bar extension, 4 used units E and G

1шт.

BOLT W/NUT, 5/8 x 1-3/4 crg, 4 used units E and G

1шт.

WASHER, 5/8 lock, 4 used units E and G

1шт.

2

479308R2

ANGLE

scraper bar main LH front, will work for 468549R2, 1 used units B and M

1шт.

2

468551R2

ANGLE

scraper bar main LH front, 1 used units A and L

1шт.

BOLT W/NUT, 5/8 x 1-3/4 crg, 3 used units A B, L and M

1шт.

WASHER, 5/8 lock, 3 used units A, B, L and M

1шт.

2

479309R2

ANGLE

scraper bar main RH front, will work for 468550R2, 1 used units B and M

1шт.

2

468552R2

ANGLE

scraper bar main RH front, 1 used units A and L

1шт.

BOLT W/NUT, 5/8 x 1-3/4 crg, 3 used units A, B, L and M

1шт.

WASHER, 5/8 lock, 3 used units A, B, L and M

1шт.

2

479308R2

ANGLE

scraper bar main LH rear, will work for 468555R1, 1 used B and M

1шт.

2

472572R2

ANGLE

scraper bar main LH rear, will work 468553R1, 1 used units A and L

1шт.

BOLT W/NUT 5/8 x 1-3/4 crg, 3 used A, B, L and M

1шт.

WASHER, 5/8 lock, 3 used units A, B, L and M

1шт.

2

479309R2

ANGLE

scraper bar main RH rear, will work for 468556R1, 1 used units B and M

1шт.

2

472573R2

ANGLE

scraper bar main RH rear, will work for 468554R1, 1 used units A and L

1шт.

BOLT W/NUT, 5/8 x 1-3/4 crg, 3 used units A, B, L and M

1шт.

WASHER, 5/8 lock, 3 used units A, B, L and M

1шт.

2

479301R2

BAR

ANGlE, scraper bar outer fornt, will work for 471007R1, will work 471008R1, 1 used unit C

1шт.

BOLT W/NUT, 5/8 x 1-3/4 crg, 2 used unit C

1шт.

WASHER, 5/8 lock, 2 used unit C

1шт.

2

479292R2

ANGLE

scraper bar outer LH fornt, will work for 471003R1, 1 used unit D

1шт.

2

479291R2

ANGLE

scraper bar outer RH front,wil work for 471004R1, 1 used unit D

1шт.

2

479299R2

BAR

ANGLE, scraper bar outer LH rear, will work for 470999R1, 1 used unit D

1шт.

2

479300R2

BAR

ANGLE, scraper bar outer RH rear, will work for 471000R1, 1 used unit D

1шт.

BOLT W/NUT, 5/8 x 1-3/4 crg, 2 used unit D

1шт.

WASHER, 5/8 lock, 2 used unit D

1шт.

2

471009R2

ANGLE

scraper bar inner LH front, 1 used unit C

1шт.

2

471100R2

ANGLE, scraper bar inner RH rear, 1 used unit C

1шт.

BOLT W/NUT, 5/8 x 1-3/4 crg, 2 used unit C

1шт.

WASHER, 5/8 lock, 2 used unit C

1шт.

2

474426R2

ANGLE

scraper bar inner LH front, will work 471005R1, 1 used unit D

1шт.

2

474427R2

ANGLE

scrap[er bar inner RH fornt, will work 471006R1, 1 used unit d

1шт.

2

479299R2

BAR

ANGLE, scraper bar inner LH rear, will work for 471001R1, 1 used unit D

1шт.

2

479300R2

BAR

ANGLE, scraper bar inner RH rear, will work for 471002R1, 1 used unit D

1шт.

BOLT W/NUT, 5/8 x 1-3/4 crg, 2 used unit D

1шт.

WASHER, 5/8 lock, 2 used unit D

1шт.

2

479297R2

BAR

ANGLE, scraper bar rear, will work for 471011R1, will work for 471012R1, 2 used unit C

1шт.

BOLT W/NUT, 5/8 x 1-3/4 crg, 4 used unit C

1шт.

WASHER, 5/8 lock, 4 used unit C

1шт.

3

483139R91

BLADE

SCRAPER ASSY LH, will work for 468566R91, 5 used units E and F, 7 used unit G and H, 9 used unit K, 11 used unit J, 16 used unit B, 20 used unit A, 22 used unit D, 25 used unit M, 26 used unit C, 31 used unit L

1шт.

3

483140R91

BLADE

SCRAPER ASSY RH, will work for 468567R91, 5 used units E and F, 7 used units G and H, 9 used unit K, 11 used unit J, 16 used unit B, 20 used unit A, 22 used unit D, 25 used unit M, 26 used unit M, 31 used unit L

1шт.

4

465062R1

BLADE

scraper, 12 used units E and F, 16 used units G and H, 20 used units K, 24 used unit J, 32 used unit B, 40 used unit A, 44 used unit A, 44 used unit D, 52 used units C and M, 64 used unit L

1шт.

BOLT W/NUT, 1/2 x 1-1/2 crg, 12 used units E and F, 16 used units G and H, 20 used unit K, 24 used unit J, 32 used unit B, 40 used unit A, 44 used unit D, 52 used units C and M, 64 used unit L

1шт.

RIVER, 3/8 x 1 truss-hd, 24 used units E and F, 32 used units G and H, 40 used unit K, 48 used unit J, 64 used unit B, 80 used unit A, 88 used unit D, 104 used units C and M, 128 used unit L

1шт.

WASHER, 1/2 lock, 12 used units E and F, 16 used units G and H, 20 used unit K, 24 used unit J, 32 used unit B, 40 used unit A, 44 used unit D, 52 used units C and M, 64 used unit L

1шт.

5

468570R91

SCRAPER ASSY, offset RH, 1 used units E thru M

1шт.

5

468569R1

SCRAPER ASSY, offser LH, 1 used units E thru M

1шт.
