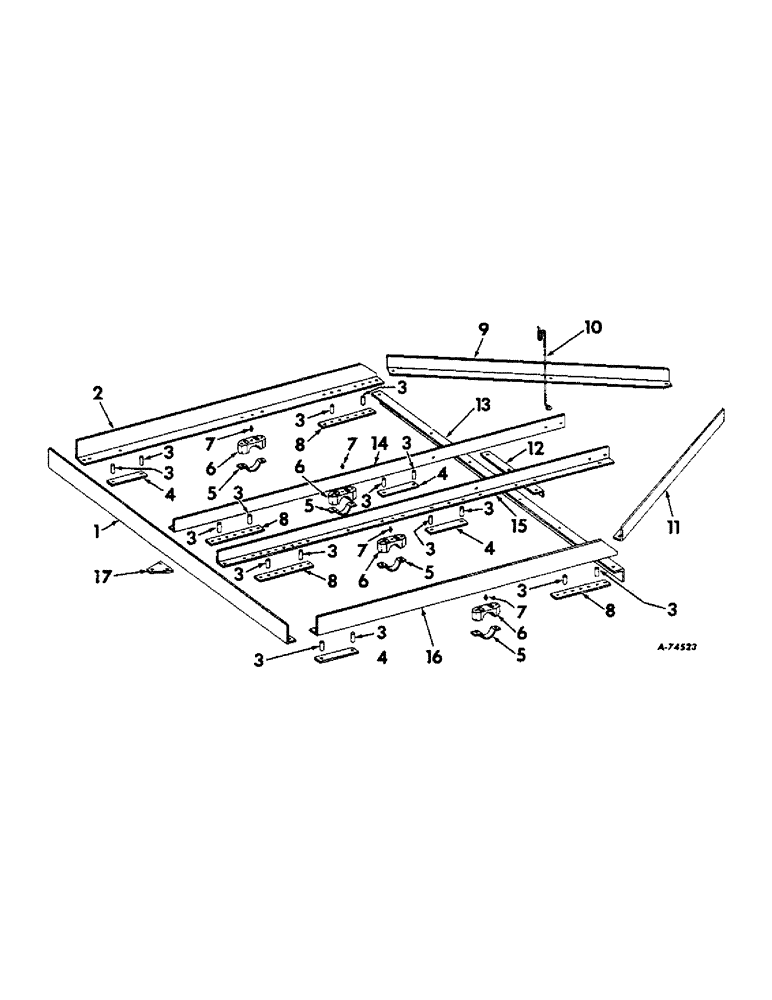

Запчасти Case IH 48 (H-05) - MAIN FRAME

1

468513R2

ANGLE

rear frame, 1 used unit A, thru D, L, and M

1шт.

BOLT W/NUT, 3/4 x 1-3/4 mach, 4 used units A thru D, L and M

1шт.

WASHER, 3/4 lock, 1 used units A thru units A thru D, L and M

1шт.

4

468519R1

BAR

short gang bar support, 4 used units A thru D, L and M

1шт.

5

468518R1

CAP

wheel shaft bearing, 4 used units A thru D, L and M

1шт.

BOLT W/NUT, 3/4 x 4-1/2 mach, 6 used units A thru D, L and M

1шт.

BOLT W/NUT, 3/4 x 5 mach, 2 used units A thru D, L and M

1шт.

WASHER, 3/4 lock, 8 used units A thru D, L and M

1шт.

6

468517R1

BEARING

wheel shaft, 4 used units A thru D, L and M

1шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 NF str lub, 4 used units A thru D, L and M

1шт.

8

468520R1

BAR

long gang bar support, 4 used units A thru D, L and M

1шт.

BOLT W/NUT, 3/4 x 4-1/2 mach, 4 used units A thru D, L and M

1шт.

WASHER, 3/4 lock, 4 used units A thru D, L and M

1шт.

9

468515R1

BRACE, front diagonal LH, 1 used units A thru D, L and M

1шт.

BOLT W/NUT, 3/4 x 1-3/4 mach, 1 used units A thru D, L and M

1шт.

WASHER, 3/4 lock, 1 used units A thru D, L and M

1шт.

10

651793R1

SUPPORT

flexible hose, 1 used units A thru D, L and M

1шт.

BOLT W/NUT, 3/4 x 2-1/4 mach, 1 used units A thru D, L and M

1шт.

WASHER, 3/4 lock, 1 used units A thru D, L, and M

1шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga, 1 used units A thru D, L, and M

1шт.

11

468516R1

BRACE, front diagonal RH, 1 used units A thru D, L and M

1шт.

BOLT W/NUT, 3/4 x 1-3/4 mach, 1 used units A thru D, L and M

1шт.

WASHER, 3/4 lock, 1 used units A thru D, L and M

1шт.

12

468522R2

SUPPORT, angle cylinder, 1 used units A thru D, L and M

1шт.

BOLT W/NUT, 3/4 x 1-3/4 mach, 2 used units A thru D, L and M

1шт.

WASHER, 3/4 lock, 2 used units A thru D, L and M

1шт.

13

468512R2

ANGLE, front frame, 1 used units A thru D, L and M

1шт.

BOLT W/NUT, 3/4 x 1-3/4 mach, 2 used units A thru D, L and M

1шт.

BOLT W/NUT, 3/4 x 2 mach, 2 used units A thru D, L and M

1шт.

WASHER, 3/4 lock, 4 used units A thru D, L and M

1шт.

14

468508R2

ANGLE, inner frame LH, 1 used units A thru D, L and M

1шт.

15

468509R2

ANGLE, inner frame RH, 1 used units A thru D, L and M

1шт.

16

468511R2

ANGLE, outer frame RH, 1 used units A thru D, L and M

1шт.

17

468514R1

BAR

PLATE, rear hitch, 1 used units A thru D, L, and M

1шт.

BOLT W/NUT, 5/8 x 1-3/4 mach, 2 used units A thru D, L and M

1шт.

WASHER, 5/8 lock, 2 used units A thru D, L, and M

1шт.
