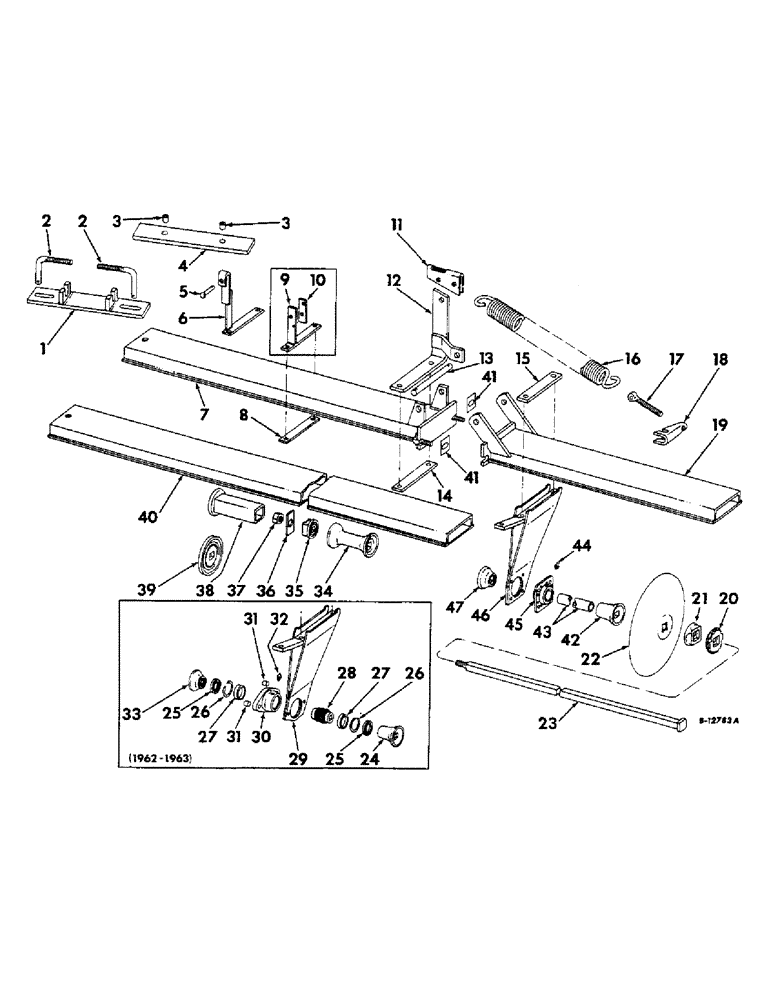

Запчасти Case IH 48 (H-02) - FRONT AND REAR GANG BARS, EXTENSIONS AND DISKS

1

468601R11

BAR

ASSY, angling, 1 used units A, B, C, D, L and M

1шт.

2

468603R1

ROD,7/8" - 9 x 6 23/64"

BOLT, angling, 2 used units A, B, C, D, L and M

1шт.

425-1414

JAM NUT,Jam, 7/8"-9, G5

4 used units A, B, C, D, L and M Jam, 7/8"-9, G5

1шт.

520175R1

CLIP

PIN, quick-attachable cotter, 2 used units A, B, C, D, L and M

1шт.

615196R1

WASHER

29/32 x 1-3/4 x 11 ga, 4 used units A, B, C, D, L and M

1шт.

3

F19286

BUSHING

SPACER, 3/4 std pipe x .594 long, 2 used units A, B, C, D, L and M

1шт.

4

468597R1

BAR

STRAP, front gang bar, 1 used units A, B, C, D, L and M

1шт.

17908R1

BOLT, 3/4 x 6-1/2 mach, 2 used units A, B, C, D, L and M

1шт.

WASHER, 3/4 lock, 2 used units A, B, C, D, L and M

1шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga, 2 used units A, B, C, D, L and M

1шт.

5

471039R1

PIN

lockout, 4 used units E thru K

1шт.

520175R1

CLIP

PIN, quick-attachable cotter, 4 used units E thru K

1шт.

6

471036R92

BRACKET

ASSY, lockout, 4 used units E thru K

1шт.

7

468592R92

BAR

ASSY, front main gang, 2 used units A, B, L and M

1шт.

7

468598R92

BAR

ASSY, rear main gang, 2 used units A, B, L and M

1шт.

NUT, 3/4, 4 used units A, B, L and M

1шт.

8

468624R1

STRAP, lockout, 4 used units E thru M

1шт.

BOLT W/NUT, 1/2 x 3-3/4 mach, 8 used units E thru M

1шт.

WASHER, 1/2 lock, 8 used units E thru M

1шт.

9

468622R91

BRACKET ASSY, lockout LH, 2 used units L and M

1шт.

9

468623R91

BRACKET ASSY, lockout RH, 2 used for units L and M

1шт.

517843R1

COTTER PIN

PIN, 3/16 x 2-7/8 quick-attachable cotter, 2 used units L and M

1шт.

10

468626R1

LEVER, locking, 4 used units L and M

1шт.

PIN, 1/8 x 3/4 cotter, 4 used units L and M

1шт.

33778A

PIN, 1/2 x 7/8 dld-std-hd, 4 used units L and M 1/2" x 7/8"

1шт.

11

468617R1

LINK

spring, 4 used units E thru M

1шт.

PIN, 1/4 x 1-1/2 cotter, 4 used units E thru M

1шт.

PO20851

PIN, 3/4 x 1-11/16 dld-std-hd, 4 used units E thru M

1шт.

12

468614R11

BRACKET ASSY, LH, 2 used units J thru M

1шт.

12

468615R11

BRACKET ASSY, RH, 2 used units J thru M

1шт.

12

471030R91

BRACKET ASSY, LH, 2 used units E thru H

1шт.

12

471031R91

BRACKET ASSY, RH, 2 used units E thru H

1шт.

13

468613R1

SHAFT

PIVOT, shaft, 4 used units E thru M

1шт.

PIN, 5/16 x 1-1/2 self-opening cotter, 8 used units E thru M

1шт.

14

468618R1

BAR

tie, 2 used units E thru K, 4 used units L and M

1шт.

17771R1

BOLT

W/NUT, 3/4 x 4-1/2 mach, 4 used units E thru K, 8 used units L and M

1шт.

WASHER, 3/4 lock, 4 used units E thru K, 8 used units L and M

1шт.

15

468591R1

BAR

STRAP, bearing standard, 6 used unit E thru K, 12 used units A and B, 16 used units C and D, 18 used units L and M

1шт.

17846R1

BOLT W/NUT, 3/4 x 5-1/2 mach, 16 for units E thru K, 22 for units C and D, 38 for units L and M

1шт.

WASHER,3/4 lock, 16 for units E thru K, 22 for units A and B, 30 for units C and D, 38 for units L and M

1шт.

16

468621R1

SPRING

gang lift, 4 for units J thru M

1шт.

REFER TO PART 468621R1 MEASURES 30.3 FREE LENGTH. 11/22/96

1шт.

16

471035R1

SPRING

gang lift, 4 for units E thru H

1шт.

REFER TO PART 471035R1 MEASURES 20.5 FREE LENGTH. 11/22/96

1шт.

17

527200R1

EYEBOLT,Eye, 3/4" - 10 x 6"

4 for units E thru M

1шт.

NUT, 3/4, 8 for units E thru M

1шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga, 4 for units E thru M

1шт.

18

468619R2

ANCHOR

spring, 4 for units E thru M

1шт.

19

468609R91

BAR

ASSY, 4 for units J thru M

1шт.

19

471022R91

BAR ASSY, 4 for units E thru H

1шт.

20

466950R2

WASHER

arbor bolt head, 2 used for units A, B and E thru M, 4 used for units C and D

1шт.

21

P4165

WASHER, head, 2 used for units L and M

1шт.

22

651200R1

DISK HARROW

DISK, 18 in. 9 ga. notched, Serial Range: 1962-1965

1шт.

22

652764R1

DISC

DISK, 18 in. 9 ga notched alloy steel, order 482987R1

1шт.

22

482987R2

DISK HARROW

DISK, 18 in. 8 ga notched heavy duty

1шт.

22

651199R1

DISC

DISK, 18 in. 9 ga solid

1шт.

22

652763R1

DISC

DISK, 18 in. 9 ga solid alloy steel

1шт.

22

143521/2

NOTCHED DISK

DISK, 18 in. 10 ga notched

1шт.

22

140561/2

DISC

DISK, 18 in. 10 ga solid

1шт.

22

652766R1

DISC

DISK, 20 in. 8 ga notched alloy steel

1шт.

22

652765R1

DISC

DISK, 20 in. 8 ga solid alloy steel, Serial Range: 1962-1965

1шт.

22

472217R1

DISK HARROW

DISK, 20 in. 8 ga solid heavy duty

1шт.

22

143531/2

NOTCHED DISK

DISK, 20 in. 9 ga notched, Serial Range: 1962-1965

1шт.

22

143811/2

DISC

DISK, 20 in. 9 ga solid

1шт.

22

P24425

DISC

DISK, 22 in. 7 ga notched

1шт.

22

652768R1

DISC

DISK, 22 in. 7 ga notched alloy steel

1шт.

22

472218R1

DISC

DISK, 22 in. 7 ga solid heavy

1шт.

22

472219R1

DISC

DISK, 22 in. 8 ga notched light

1шт.

22

PA13373

DISC

DISK, 22 in. 8 ga solid, 12 for units E and F, 16 for units G and H, 20 for unit K, 24 for unit J, 36 for unit B, 44 for unit A, 48 for unit D, 56 for units C and M, 68 for unit L

1шт.

23

468583R2

BOLT (SPREADER),1 1/8"-7 x 79.4"

BOLT, arbor, 1-1/8 x 78.8, 4 used units A and L

1шт.

23

468582R2

BOLT (SPREADER),1 1/8"-7 x 76.7"

BOLT, arbor, 1-1/8 x 75.9, 4 used units B and M

1шт.

23

468608R1

BOLT,1 1/8"-7 x 41.3"

arbor fornt inner, 1-1/8 x 41.3, 2 used unit C, 4 used units J and L

1шт.

23

468607R1

BOLT,1 1/8"-7 x 39.8"

arbor front inner, 1-1/8 x 39.6, 2 used unit D, 4 used units K and M

1шт.

23

471015R1

BOLT,1 1/8"-7 x 57.8"

arbor front outer, 1-1/8 x 57.7, 2 used unit D

1шт.

23

471013R1

BOLT,1 1/8"-7 x 56.3"

arbor front outer, 1-1/8 x 56.2, 2 used unit C

1шт.

23

471014R1

BOLT,1 1/8"-7 x 48.8"

arbor rear, 1-1/8 x 48.7, 4 used units C and D

1шт.

23

471018R1

BOLT, arbor, 1-1/8 x 21.6, 4 used unit F

1шт.

23

471019R1

BOLT,1 1/8"-7 x 18.6"

arbor, 1-1/8 x 18.6, 4 used unit E

1шт.

23

471016R1

BOLT,1 1/8"-7 x 30.6"

arbor, 1-1/8 x 30.6, 4 used unit H

1шт.

23

471017R1

BOLT,1 1/8"-7 x 26.1"

arbor, 1-1/8 x 26.1, 4 used unit G

1шт.

24

469815R1

SPOOL

bearing long, 1962 to 1963, 8 used units E, G and J, 12 used unit A, 16 for unit C, F, H and K, 20 used unit L, 24 for unit B, 32 for unit D, and 40 for unit M

1шт.

25

478443R91

SEAL

OIL SEAL, triple lip, 1962 to 1963, order 597463R91

1шт.

25

597463R91

OIL SEAL

oil, 16 for units E thru K, 24 for units A and B, 32 for C and D, 40 for units L and M

1шт.

26

469836R1

RING

snap, 1962 to 1963, 16 for units E thru K, 24 for units A and B, 32 for units C and D, 40 for units L and M

1шт.

27

518819R1

BEARING CUP,69.01mm OD x 15.08mm W

CUP, roller bearing, 1962 to 1963, 16 for units E thru K, 24 for units A and B, 32 for units C and D, 40 for units L and M

1шт.

28

469834R91

BEARING ASSY,29.36mm ID x 69.01mm OD x 41.27mm W

CONE, roller bearing, 1962 to 1963, 8 for units E thr K, 12 for units A and B, 16 for units C and D, 20 for units L and M

1шт.

29

468587R91

SUPPORT ASSY.

STANDARD ASSY, bearing, 1962 to 1963, 8 for units E thru K, 12 for units A and B, 16 for units C and D, 20 for units L and M

1шт.

30

469816R2

HOUSING

bearing, 1962 to 1963, 8 used units E thru K, 12 used units A and B, 16 used units C and D, 20 used units L and M

1шт.

31

469837R1

SPACER

1962 to 1963, 16 for units E thru K, 24 for units A and B, 32 for units C and D, 40 for units L and M

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW W/NUT, 3/8 x 1-3/4 cap, 16 for units E thru K, 24 for units A and B, 32 for units C and D, 40 for units L and M

1шт.

WASHER, 3/8 lock, 16 for units E thru K, 24 for units A and B, 32 for units C and D, 40 for units L and M

1шт.

575807R1

WASHER

13/32 x 1 x 11 ga, 16 for units E thru K, 24 for units A and B, 32 for units C and D, 40 for units L and M

1шт.

32

274510

FITTING

1/4 x 90 deg straight lub, 1962 to 1963, 8 for units E thru K, 12 for units A and B, 16 for units C and D, 20 for units L and M

1шт.

33

469814R1

SPOOL

bearing short, 1962 to 1963, 8 for units E, G, and J, 12 for unit A, 16 for unit B, 20 for unit L

1шт.

34

481416R1

SPOOL

spacing, will work for 468486R1, 4 for unit G, 12 for unit J, 28 for unit A, 32 for unit C, and 40 for unit L

1шт.

34

481417R1

SPOOL

spacing, will work for PC3058, 4 used unit H, 8 used unit K, 20 used unit B, 24 used unit D, 28 used unit M

1шт.

35

481611R1

WASHER

arbor bolt, 1 per arbor bolt, for units A, B, L and M

1шт.

35

PA4167

WASHER

arbor bolt, for unit C thru K

1шт.

36

P34101

LOCK

arbor bolt nut, 4 used units A, B, E, thru M, 8 used units C and D

1шт.

37

425-1018

NUT,1 1/8"-7, G5

1-1/8 hex, 4 used units A, B, E, thru M, 8 used units C and D

1шт.

38

468606R11

TUBE

PIPE ASSY, gang thrust, 2 used units C, E, G, J and L

1шт.

38

468604R11

TUBE

PIPE ASSY, gang thrust, 2 used units D, F, H, K and M

1шт.

39

468584R1

WASHER

bumper, 2 used units A, B, C, D, L and M

1шт.

40

470996R91

BAR ASSY, front gang, 2 used unit C and D

1шт.

40

470993R91

BAR ASSY, rear gang, 2 used units C and D

1шт.

41

473549R1

BAR

SHIM, gang bar, use as required E thru M

1шт.

42

472591R2

SPOOL

bearing long, 1963 and since, 8 used units E thru K, 12 used units A and B, 16 used units C and D

1шт.

42

472593R2

SPOOL

bearing long, 1963 and since, 8 used units F, H and K, 12 used unit B, 16 used unit D

1шт.

43

652383R1

BUSHING,38.91mm ID x 44.45mm OD x 128.6mm L

arbor bolt support, 1963 and since, 8 used units E and G, 12 used unit A, 16 used unit C

1шт.

43

472594R1

BUSHING,38.91mm ID x 44.45mm OD x 154mm L

arbor bolt support, 1963 and since, 8 used units F, H and K, 12 used unit B, 16 used unit D

1шт.

44

441408R91

FITTING

1/4 tapered-thd straight lub, 1963 and since, use as required units A thru K

1шт.

45

ST427A

BEARING

ASSY, self-aligning, order ST490

1шт.

45

ST490

BEARING

ASSY, 8 used unit E thru K, 12 used units A and B, 16 used units C and D

1шт.

BOLT, 1/2 x 1-1/2 mach, 32 used units E thru K, 48 used units A and B, 64 used units C and D

1шт.

NUT, 1/2, 32 used units E thru K, 48 used units A and B, 64 used units C and D

1шт.

WASHER, 1/2 lock, 32 used units E thru K, 48 used units A and B, 64 used units C and D

1шт.

WASHER, 17/32 x 1 x 11 ga, 32 used units E thru K, 48 used unit A and B, 64 used units C and D

1шт.

46

474178R92

SUPPORT ASSY.

STANDARD ASSY, bearing, 1963 and since, 8 used units E thru K, 12 used units A and B, 16 used units C and D

1шт.

47

472592R2

SPOOL

bearing short, 1963 and since, 8 used units E, G and J, 12 used unit A, 16 used unit C

1шт.
