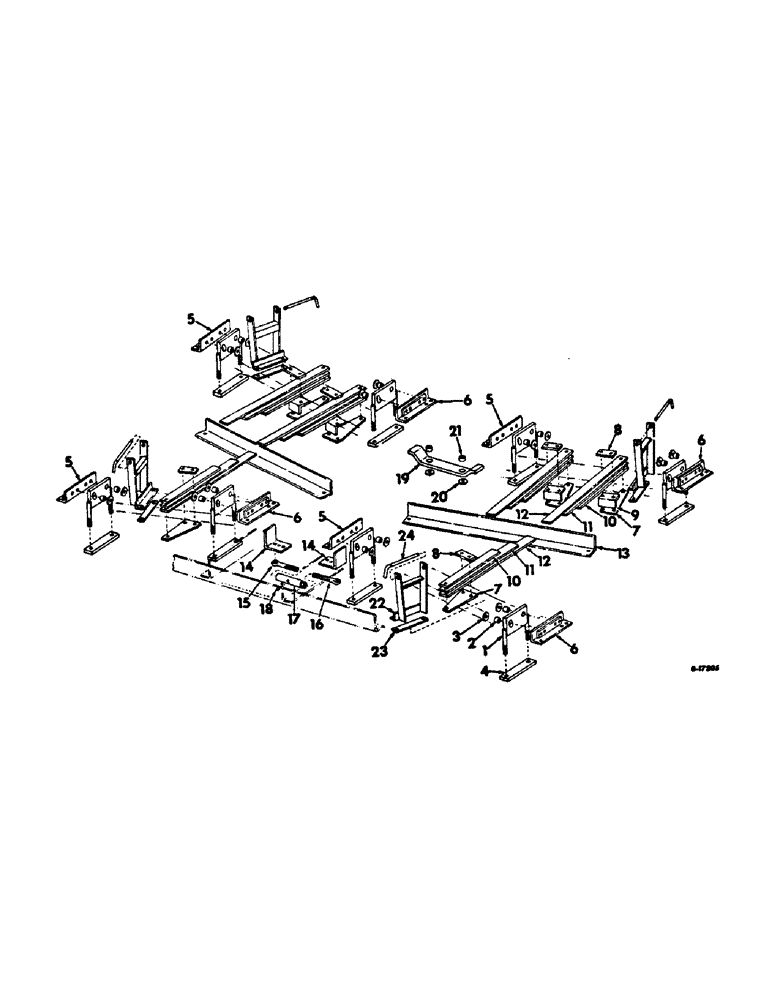

Запчасти Case IH 48 (H-14) - CUSHION GANG ATTACHMENT

1

490771R1

PLATE ASSY, pivot

8шт.

2

490774R1

SPACER

16шт.

3

490775R1

WASHER

16шт.

271821

BOLT,Hex, 7/8" - 9 x 3 1/2", Gr 5

SCREW, 7/8-9 x 3-1/2 C-Z hex-hd cap

16шт.

131047

WASHER,7/8"

7/8"

16шт.

21353R1

NUT, 7/8-9 nylon insert

16шт.

4

490776R1

BAR, support

6шт.

NLS

NO LONGER SERVICED

7/8"

16шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

16шт.

5

490777R1

ANGLE ASSY, LH

4шт.

6

490778R1

ANGLE ASSY, RH

4шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 C-Z hex-hd cap

16шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

16шт.

280954

NUT,3/4"-10, G5

16шт.

7

490782R1

PLATE, lower

6шт.

8

490783R1

BAR, clamping

6шт.

9

490784R1

ANGLE, shim

4шт.

10

490787R1

BAR, spring

6шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

3/4-10 x 6 C-Z hex-hd cap

6шт.

19866R1

BOLT,Hex, 3/4" - 10 x 6 1/2", Gr 5

SCREW, 3/4-10 x 6-1/2 C-Z hex-hd cap

4шт.

19959R1

BOLT,Hex, 3/4" - 10 x 7", Gr 5

SCREW, 3/4-10 x 7 C-Z hex-hd cap

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

18шт.

280954

NUT,3/4"-10, G5

18шт.

11

490786R1

BAR, spring

6шт.

12

490785R1

BAR, spring

6шт.

13

490788R1

ANGLE, center

2шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

413-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

SCREW, 3/4-10 x 4-3/4 C-Z hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

14

490789R1

ANGLE, rear adj

2шт.

271823

BOLT

SCREW, 7/8-9 x 4 C-Z hex-hd cap

2шт.

21353R1

NUT, 7/8-9 zn nylon insert

2шт.

15

490790R1

BOLT

EYE BOLT, LH

1шт.

16

490791R1

BOLT

EYE BOLT, RH

1шт.

17

526904R1

TURNBUCKLE

TURNBUCKEL

1шт.

426899

NUT,Jam, 1"-8, G5

1/8 C-Z hex. jam

1шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 NF str lub in turnbuckle

1шт.

19

490792R1

BAR, front spreader

1шт.

20

652033R1

WASHER

.781 x 2.125 x 1/4

2шт.

19959R1

BOLT,Hex, 3/4" - 10 x 7", Gr 5

SCREW, 3/4-10 x 7 C-Z hex-hd

2шт.

21

490793R1

SPACER, front spreader

2шт.

22

489268R1

BRACKET

ASSY, lockout

4шт.

17054R1

LOCK PIN,3/16" x 7/8", Slotted

Pin, 3/16" x 7/8", Slotted

8шт.

23

468624R1

STRAP, lock out

4шт.

20281R1

BOLT,Hex, 1/2"-13 x 3 3/4", G2

1/2 x 3-3/4 C-Z hex-hd mach

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

24

489266R1

ROD

ASSY, lockout

4шт.
