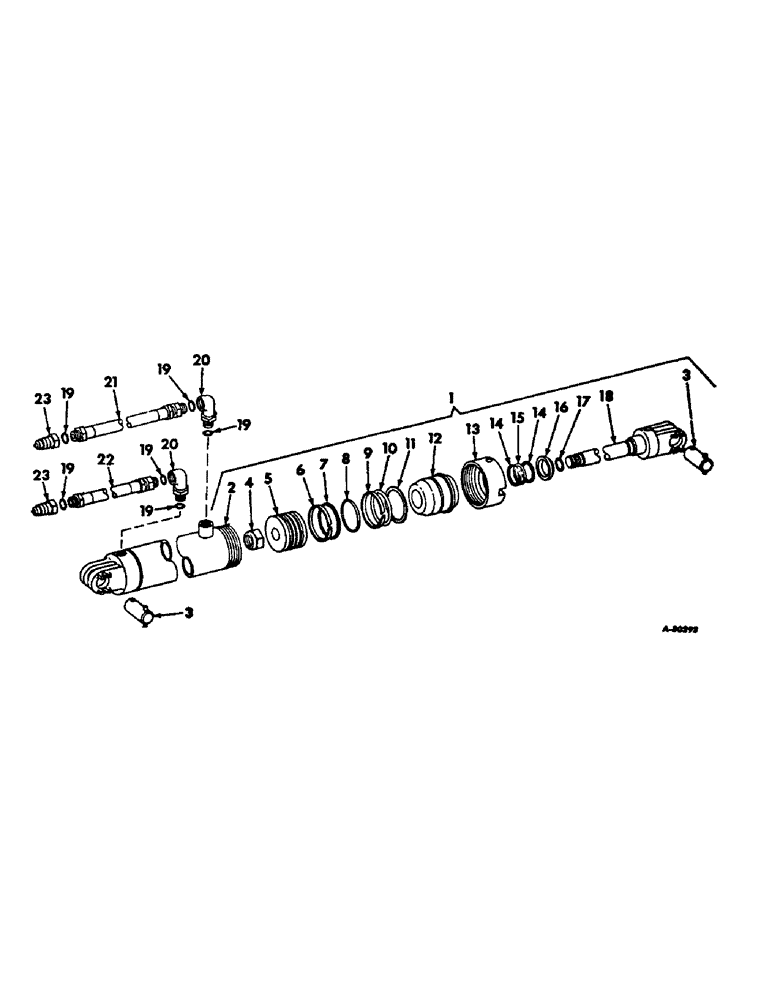

Запчасти Case IH 48 (H-13) - HYDRAULIC CYLINDER AND CONNECTIONS, FOR TRACTORS W/HIGH

1

387351R91

CONTROL

CYLINDER ASSY, 3-1/2 x 16 in., not available for service

1шт.

2

387359R11

PIPE ASSY, hydraulic cylinder

1шт.

3

387235R11

PIN

ASSY, cylinder pivot

2шт.

520175R1

CLIP

PIN, quick-attachable cotter

2шт.

4

20251R1

NUT

piston rod

1шт.

5

387354R1

PISTON

hydraulic

1шт.

6

383005R1

RING

piston rear bearing

1шт.

7

381086R1

RING

SEAL, piston

1шт.

8

380910R1

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

3 x 3-3/16 x 3/32

1шт.

9

381085R1

OIL SEAL

RING, piston front bearing

1шт.

10

352216R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 5, 75 Duro

. 3-1/8 x 3-1/2 x 3/16

1шт.

11

381088R1

BACK-UP RING

front head back-up

1шт.

12

387353R1

END

HEAD, cylinder front

1шт.

12

1272149C92R

REMAN-HYD CYLINDER

48 INTERNATIONAL HARVESTER DISK HARROW, HEAD, cylinder front, Reman for New PN 387353R1

1шт.

12

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

13

381089R1

RING

retaining

1шт.

14

387362R1

BACK-UP RING

WASHER, piston rod back-up

2шт.

15

387363R1

O-RING,0.21" Thk x 1.725" ID, -327, Cl 6, 90 Duro

1-3/4 x 2-1/8 x 3/16

1шт.

16

324581R91

OIL SEAL

WIPER, piston rod

1шт.

17

350818R1

O-RING,0.984" ID x 0.139" Width

1 x 1-1/4 x 1/8

1шт.

18

387361R13

ROD

ASSY, piston

1шт.

19

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD

6шт.

20

371357R91

ELBOW

7/8UNF 90 deg adjustable

2шт.

21

630457R91

HOSE ASSY.

HOSE ASSY, hydraulic 1/2 x 132 in.

1шт.

22

372437R91

HOSE

ASSY, hydraulic 1/2 x 112 in.

1шт.

23

395149R1

QUICK MALE COUPLING

COUPLING ASSY, self-sealing male

2шт.

387881R92

SEAL KIT

PACKAGE, O-RING service, consists of, (1) ring 383005R1, (1) seal 381086R1, (1) ring 380910R1, (1) ring 352216R1, (1) washer 381088R1, (1) ring 387363R1, (1) ring 403845R1, (1) 350818R1, (1) washer 387362R1 (Replaces 387881R1)

1шт.

2752530R1

PRODUCT GRAPHIC, hyd cyl

1шт.
