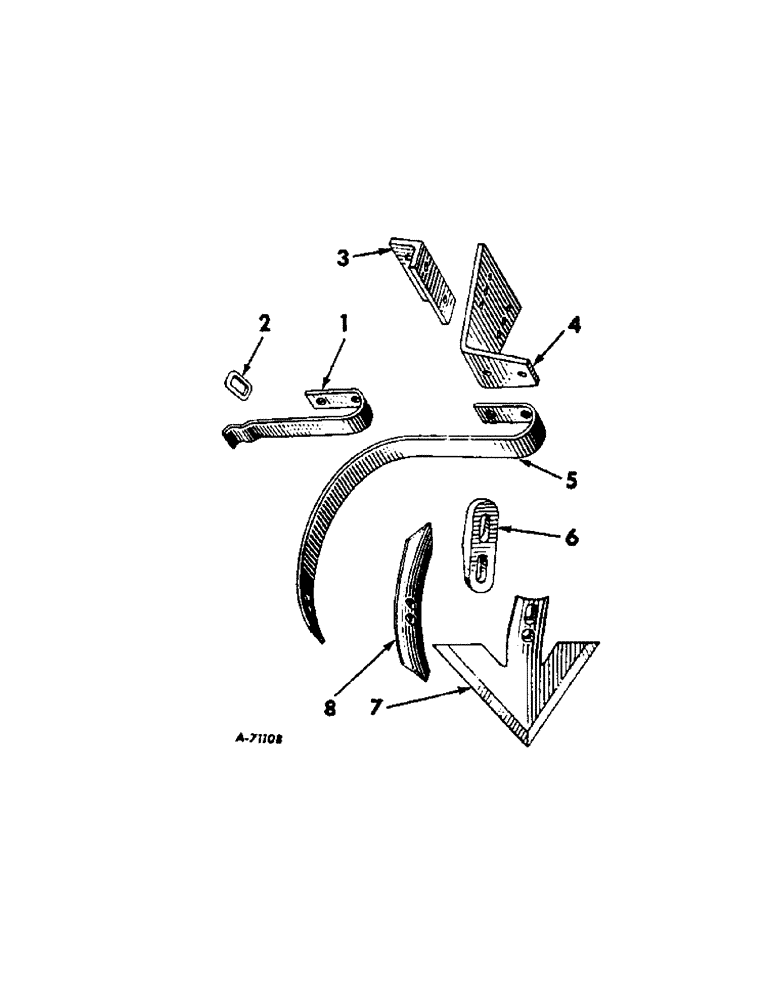

Запчасти Case IH 48 (H-11) - CENTER TOOTH ATTACHMENT

1

14032

REINFORCEMENT

center tooth

1шт.

BOLT W/NUT, 7/16 x 1-3/4 mach

2шт.

WASHER, 7/16 lock

2шт.

2

P4163

LINK

KEEPER, reinforcement

1шт.

3

(Not used in this application)

1шт.

4

468627R1

BRACKET

center tooth

1шт.

BOLT W/NUT, 5/8 x 2 mach

2шт.

WASHER, 5/8 lock

2шт.

5

PA24783

SPRING

TOOTH, center spring (Replaces P24783)

1шт.

6

466868R1

WEDGE

sweep adjustable

1шт.

7

479005R2

SWEEP

6 in. universal, will work for 519043R1

1шт.

BOLT W/NUT, 7/16 x 1-1/2 crg

1шт.

NUT, 7/16 C-Z

1шт.

25548BA

BOLT, 7/16 x 1-1/2 special oval-hd C-Z plow

1шт.

8

5886

POINT

spring tooth double

1шт.

BOLT W/NUT, 3/8 x 1-1/8 no. 3 hd plow

2шт.
