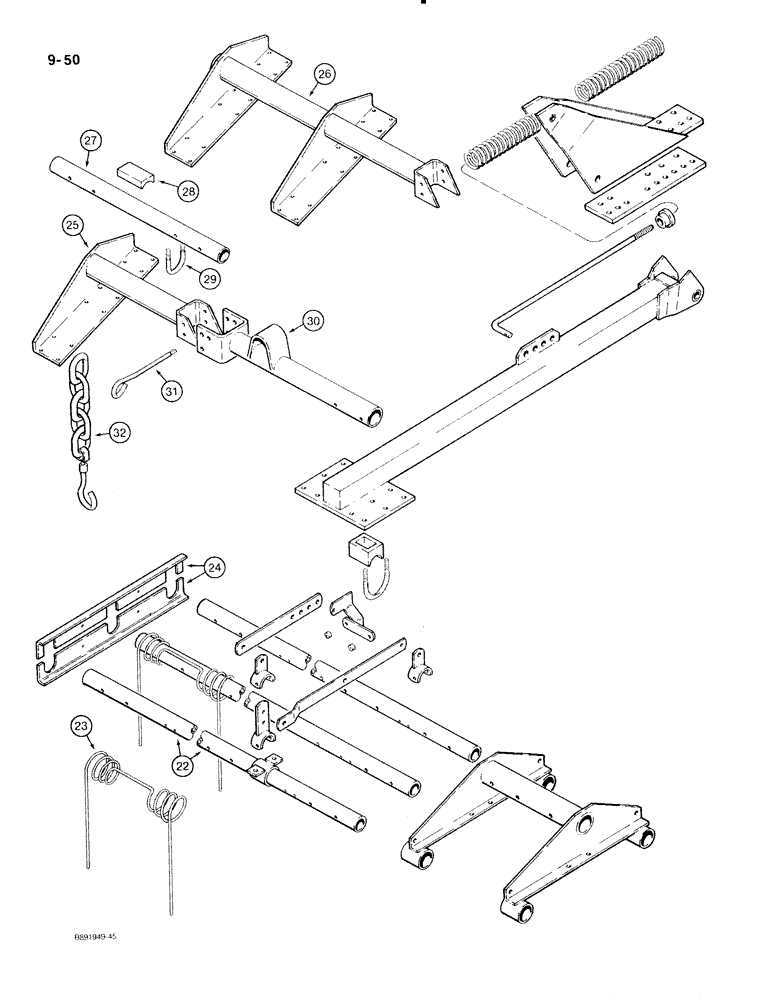

Запчасти Case IH 475 (9-50) - MULCHER ATTACHMENT, ADJUSTABLE ANGLE (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
22
485602R1
TUBE
BAR - second tooth, used with 3-1/2 foot frame
1шт.
22
485604R1
TUBE
BAR - second tooth, used with 4-3/4 foot frame
1шт.
22
485605R1
TUBE
BAR - second tooth, used with 6 foot frame
1шт.
22
490552R1
TUBE
BAR - second tooth, used with 7-1/4 foot frame
1шт.
22
813032C1
TUBE,1.66" OD, 173.875" Length
BAR - second tooth, used with 14-3/4 foot frame
1шт.
23
72901C1
TOOTH
- spring, third bar, 6 used with 3-1/2 foot long frame, 8 used with 4-3/4 foot long frame, 10 used with 6 foot long frame, 12 used with 7-1/4 foot long frame and 24 used with 14-3/4 foot long frame
1шт.
487082R1
BOLT,Hex, 3/8" - 16 x 2 3/4"
- shoulder, 2 used per tooth
1шт.
230-4216
LOCK NUT,3/8"-16, GA
NUT - hex, self-locking, 3/8 inch NC, 2 used per tooth
1шт.
24
485598R1
SUPPORT
RAIL - center, half-section, 2 used per frame, used with 4-3/4 foot, 6 foot and 7-1/4 foot long frames
1шт.
25
547847R1
FRAME
- wing, short, left-hand
1шт.
25
547848R1
FRAME
- wing, short, right-hand, not shown
1шт.
26
547849R1
FRAME
- wing, long, left-hand
1шт.
26
547850R1
FRAME - wing, long, right-hand, not shown
1шт.
27
547851R1
BAR
- tooth, short, wing frame
1шт.
27a
547852R1
TUBE
BAR - tooth, long, wing frame, not shown
1шт.
28
547853R1
CLAMP
- tooth bar
1шт.
29
547854R1
BOLT,3/8" - 16 x 2 3/4"
U-BOLT - special, 2 used per clamp
1шт.
492-11038
LOCK WASHER,3/8"
1шт.
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
1шт.
30
547855R1
HINGE
- center
2шт.
31
547856R1
PIN
- hinge
2шт.
113-429
BOLT,Hex, 1/2" - 13 x 5", Gr 5
2шт.
113-427
BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5
4шт.
474848R1
LOCK NUT,1/2"-13, GB
NUT - hex lock, 1/2 inch NC
6шт.
32
547857R1
CHAIN (AG)
CHAIN - wing
2шт.
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
- hex, 3/8 NC x 1-1/4 inch
2шт.
495-21044
WASHER,3/8"
( flat, 7/16 x 1 x 5/64 inch) 3/8"
4шт.
385525R1
LOCK NUT,3/8"-16, GB
NUT - hex lock, 3/8 inch NC
2шт.
Выбрано товаров: 28
