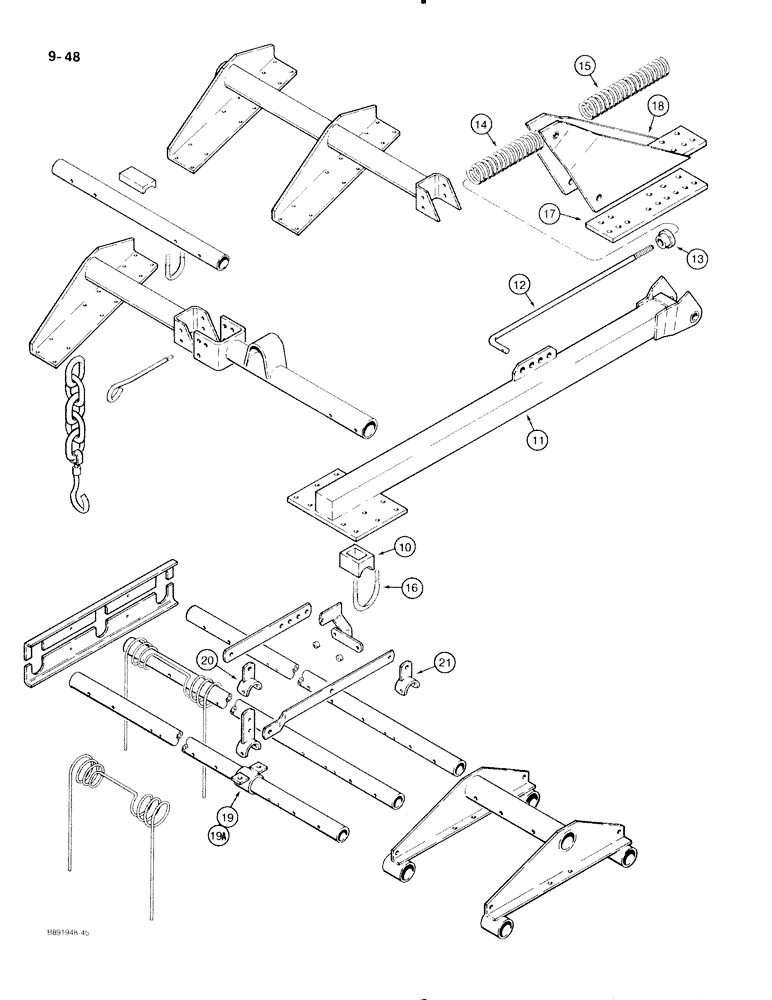

Запчасти Case IH 475 (9-48) - MULCHER ATTACHMENT, ADJUSTABLE ANGLE (09) - CHASSIS/ATTACHMENTS

10

490687R1

CLAMP

- carrier arm, used with frame 3-1/2 foot long frame

2шт.

11

75220C1

ARM

- mounting

2шт.

27550R1

BOLT - hex, 3/4 NC x 6 inch

4шт.

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

4шт.

12

596580R1

ROD

- adjustment

2шт.

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

2шт.

178375R1

WASHER

- flat, 3/4 x 1-1/4 x 1/16 inch

2шт.

13

1431BX

COLLAR CLAMP

COLLAR ASSEMBLY - with set screw

2шт.

83-15016

SET SCREW,Hex Soc, 1/2"-13 x 1"

SCREW - set, square head, 1/2 NC x 3/4 inch

2шт.

178375R1

WASHER

- flat, 3/4 x 1-1/4 x 1/16 inch

2шт.

129-148

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NC

2шт.

14

596574R1

SPRING

- compression, lower

2шт.

15

485611R1

SPRING

- compression, upper

2шт.

16

490688R1

BOLT,1/2" - 13 x 4 1/2"

- U-type, 1/2 inch NC

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , NC 1/2"

16шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

16шт.

17

60915C1

CLAMP

PLATE - clamping, arm mounting bracket

1шт.

18831R1

BOLT,Hex, 5/8" - 11 x 5 1/2"

- hex, 5/8 NC x 5-1/2 inch

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

18

60916C2

BRACKET

- arm mounting

1шт.

19

485603R1

BUSHING

- second tooth bar

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

19a

813036C1

CLAMP

- tooth, not shown

8шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

8шт.

492-11038

LOCK WASHER,3/8"

8шт.

20

485601R1

ARM

POST - center, second tooth

1шт.

Q3542

HEADED PIN,11.1mm OD x 38.1mm L

PIN - clevis, 7/16 x 1-1/2 inch

1шт.

132-318

COTTER PIN,5/32" x 1"

5/32" x 1"

1шт.

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 7/16 NC x 2-3/4 inch

1шт.

131-1129

LOCK NUT,7/16"-14, GA

NUT - hex, self-locking, 7/16 inch NC

1шт.

21

485601R1

ARM

POST - first tooth

1шт.

21658R1

HEADED PIN,7/16" x 1"

PIN - clevis, 7/16 x 1 inch

1шт.

132-318

COTTER PIN,5/32" x 1"

5/32" x 1"

1шт.

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 7/16 NC x 2-3/4 inch

1шт.

131-1129

LOCK NUT,7/16"-14, GA

NUT - hex, self-locking, 7/16 inch NC

1шт.
