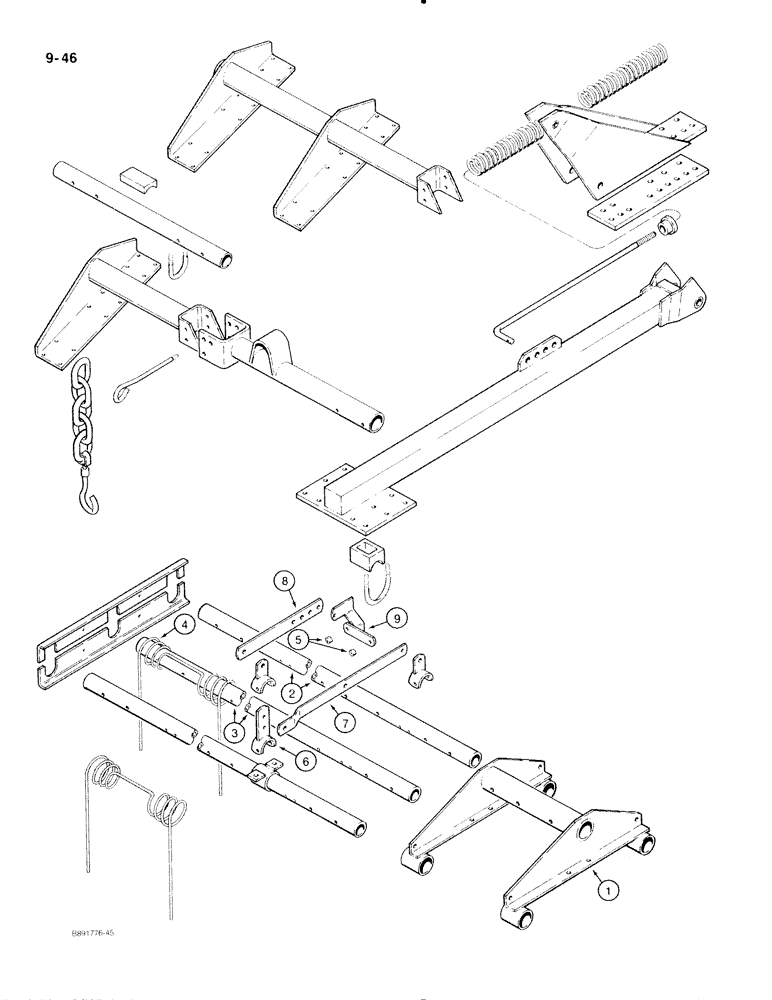

Запчасти Case IH 475 (9-46) - MULCHER ATTACHMENT, ADJUSTABLE ANGLE (09) - CHASSIS/ATTACHMENTS

1

485614R2

FRAME

- tooth bar, 3-1/2 foot long

1шт.

1

485615R2

FRAME

- tooth bar, 4-3/4 foot long

1шт.

1

485616R2

FRAME

- tooth bar, 6 foot long

1шт.

1

490549R1

FRAME

- tooth bar, 7-1/4 foot long

1шт.

1

813022C1

FRAME

- tooth bar, 14-3/4 foot long

1шт.

2

485589R1

TUBE

BAR - first tooth, used with 3-1/2 foot long frame

1шт.

2

485596R1

TUBE

BAR - first tooth, used with 4-3/4 foot long frame

1шт.

2

485599R1

TUBE

BAR - first tooth, used with 6 foot long frame

1шт.

2

490550R1

TUBE

BAR - first tooth, used with 7-1/4 foot long frame

1шт.

2

813029C1

TUBE,1.66" OD, 173.875" Length

BAR - first tooth, used with 14-3/4 foot long frame

1шт.

3

485590R1

TUBE

BAR - third tooth, used with 3-1/2 foot long frame

1шт.

3

485597R1

TUBE

BAR - third tooth, used with 4-3/4 foot long frame

1шт.

3

485600R1

TUBE

BAR - third tooth, used with 6 foot long frame

1шт.

3

485551R3

TUBE

BAR - third tooth, used with 7-1/4 foot long frame

1шт.

3

813035C1

TUBE,1.66" OD, 173.875" Length

BAR - third tooth, used with 14-3/4 foot long frame

1шт.

132-319

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), , 4 used per bar 1/4" x 3"

1шт.

4

72901C1

TOOTH

- spring, first and second bar, 3 used with 3-1/2 foot long frame, 4 used with 4-3/4 foot long frame, 5 used with 6 foot long frame, 6 used with 7-1/4 foot long frame and 12 used with 14-3/4 foot long frame

1шт.

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

- shoulder, 2 used per tooth

1шт.

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC, 2 used per tooth

1шт.

5

485591R1

SPACER

BUSHING - tooth, models with (2) 3-1/2 foot long frames

4шт.

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

6

485592R1

ARM

HANDLE - bar (1 used per frame)

1шт.

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 7/16 NC x 2-3/4 inch

1шт.

131-1129

LOCK NUT,7/16"-14, GA

NUT - hex, self-locking, 7/16 inch NC

1шт.

7

485593R1

SUPPORT

EXTENSION - handle, 19-1/4 inch long

1-2шт.

8

485594R1

BAR

EXTENSION - handle, 12-1/4 inch long

1-2шт.

21658R1

HEADED PIN,7/16" x 1"

PIN - clevis, 7/16 x 1 inch

4-8шт.

25846R1

WASHER

- flat, 15/32 x 59/64 x 3/32 inch

3-6шт.

132-318

COTTER PIN,5/32" x 1"

5/32" x 1"

3-6шт.

480523R1

HAIR PIN COTTER

1-2шт.

9

485595R1

SUPPORT

POST - front, used with 3-1/2 foot long frame

1шт.
