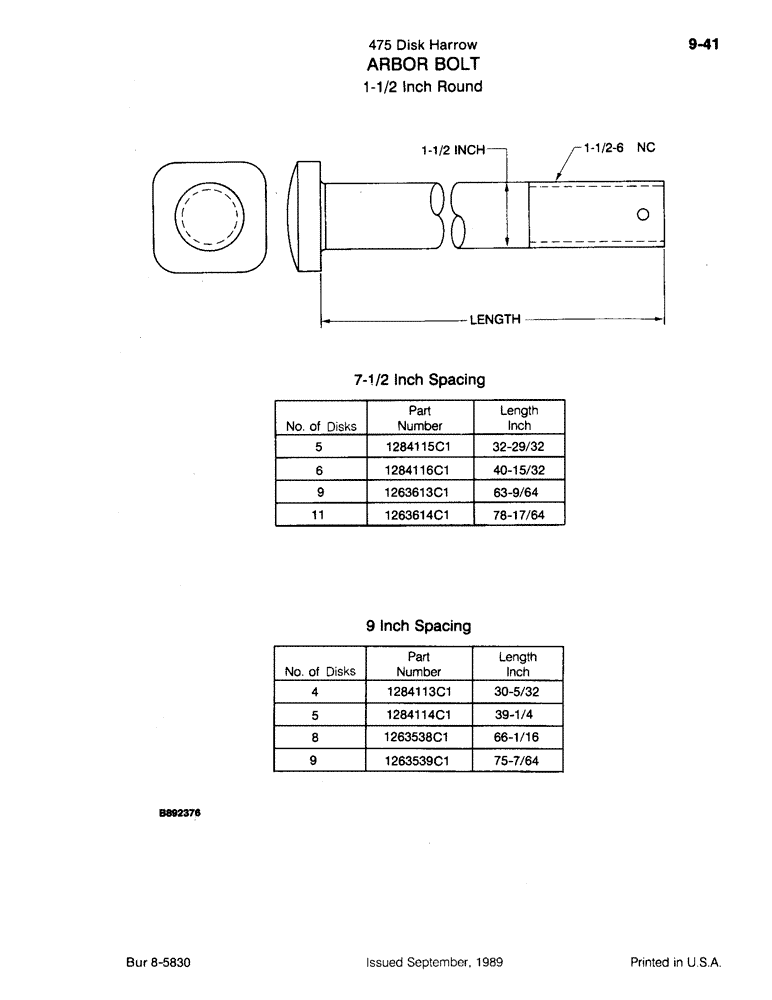

Запчасти Case IH 475 (9-41) - ARBOR BOLT, 1-1/2 INCH ROUND (09) - CHASSIS/ATTACHMENTS

1284115C1

SQUARE BOLT,Arbor, 1-1/2" - 6 x 845mm

32- 29/32 inch length, 7-1/2 inch spacing

5шт.

1284116C1

SQUARE BOLT,Arbor, 1-1/2" - 6 x 1052mm

40-15/32 inch length, 7-1/2 inch spacing

6шт.

1263613C1

SQUARE BOLT,Arbor, 1-1/2" - 6 x 1635mm, Drilled

63-9/64 inch length, 7-1/2 inch spacing

9шт.

1263614C1

SQUARE BOLT,Arbor, 1-1/2" - 6 x 2019mm, Drilled

78-17/64 inch length, 7-1/2 inch spacing

11шт.

1284113C1

BOLT,Arbor, 1-1/2" - 6 x 762mm

30-5/32 inch length, 9 inch spacing

4шт.

1284114C1

BOLT,Arbor, 1-1/2" - 6 x 994mm

39-1/4 inch length, 9 inch spacing

5шт.

1263538C1

BOLT,Arbor, 1-1/2” - 6 x 1708mm, Drilled

66-1/16 inch length, 9 inch spacing

8шт.

1263539C1

BOLT,Arbor, 1-1/2" - 6 x 1937mm, Drilled

76-1/4 inch length sg., 9 inch spacing

9шт.
