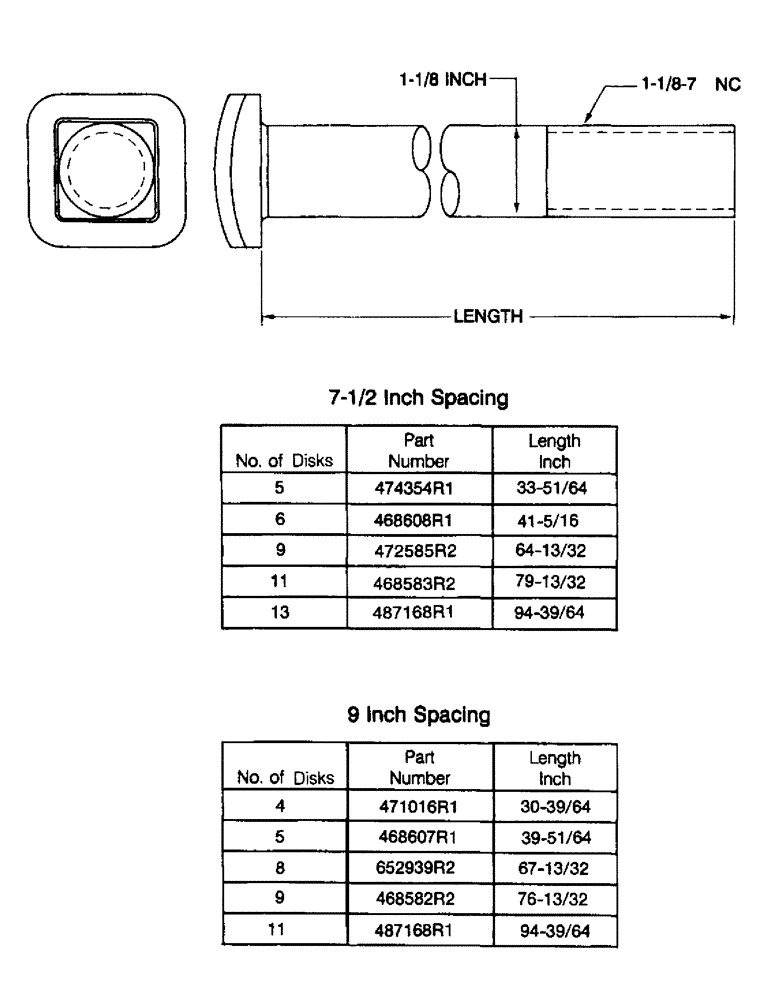

Запчасти Case IH 475 (9-40) - ARBOR BOLT, 1-1/8 INCH SQUARE (09) - CHASSIS/ATTACHMENTS

474354R1

BOLT,1 1/8"-7 x 33.8"

33-51/64 inch length, 7-1/2 inch spacing

5шт.

468608R1

BOLT,1 1/8"-7 x 41.3"

41-5/16 inch length, 7-1/2 inch spacing

6шт.

487168R1

BOLT,1 1/8"-7 x 94.6"

94-39/64, 7-1/2 inch spacing

13шт.

472585R2

BOLT,1 1/8"-7 x 64.4"

64-13/32, 7-1/2 inch spacing

9шт.

468583R2

BOLT (SPREADER),1 1/8"-7 x 79.4"

79-13/32, 7-1/2 inch spacing

11шт.

471016R1

BOLT,1 1/8"-7 x 30.6"

30-39/64, 9 inch spacing

4шт.

468607R1

BOLT,1 1/8"-7 x 39.8"

39-51/64 inch length, 9 inch spacing

5шт.

652939R2

BOLT,Rnd Cor Sq Hd, 1 1/8" - 7 x 67.4"

67.4, 9 inch spacing

8шт.

468582R2

BOLT (SPREADER),1 1/8"-7 x 76.7"

76-13/32 inch length, 9 inch spacing

9шт.

487168R1

BOLT,1 1/8"-7 x 94.6"

94-39/64, 9 inch spacing

11шт.
