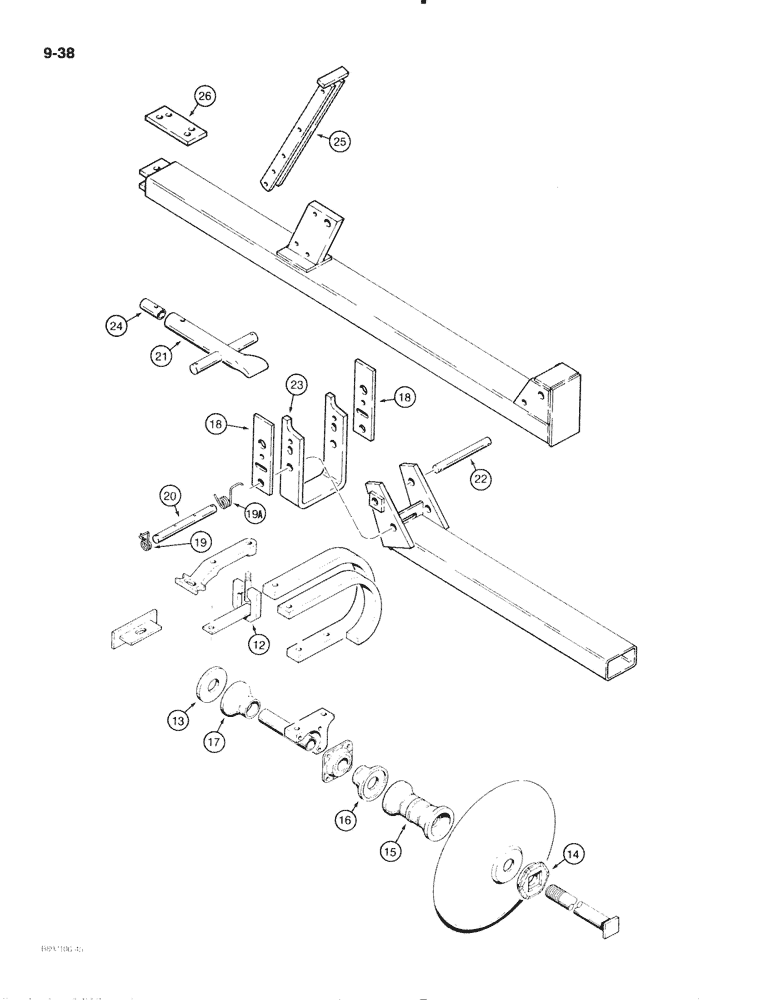

Запчасти Case IH 475 (9-38) - DISKS AND GANGS, SPRING CUSHION, USED WITH FOLDING FRAME, 1-1/2 INCH DIAMETER ROUND ARBOR BOLT (09) - CHASSIS/ATTACHMENTS

12

1263635C1

BOLT

RETAINER - support

14шт.

12

147979C1

BOLT

RETAINER - support, front, inner

2шт.

230-42112

LOCK NUT,3/4"-10, GA

NUT - hex, self-locking, 3/4 inch NC

16шт.

13

139773C1

WASHER

WASHER - end, end

14шт.

14

139927C1

WASHER

WASHER - head, arbor bolt, at wing gang

2шт.

14

139773C1

WASHER

WASHER - end, Flat

2шт.

15

1263631C1

SPOOL

- spacing, 7-1/2 inch spacing, Disk Harrow coded G

32шт.

1263631C1

SPOOL

- spacing, 7-1/2 inch spacing, Disk Harrow coded J

36шт.

1263631C1

SPOOL

- spacing, 7-1/2 inch spacing, Disk Harrow coded L

40шт.

1263631C1

SPOOL

- spacing, 7-1/2 inch spacing, Disk Harrow coded N

44шт.

15

139918C1

SPACER

SPOOL - spacing, 9 inch spacing, Disk Harrow coded H

28шт.

139918C1

SPACER

SPOOL - spacing, 9 inch spacing, Disk Harrow coded K

32шт.

139918C1

SPACER

SPOOL - spacing, 9 inch spacing, Disk Harrow coded M

36шт.

16

1263636C1

SPOOL

- bearing, 1-1/2 inch long

16шт.

16

101191C1

SPOOL

- bearing, 4 inch long

16шт.

17

101190C1

SPOOL

- bearing, 3 inch long

16шт.

18

62008C1

BAR

- lockout, 4 used with manual folding units, 8 used with hydraulic folding units

4шт.

19

62007C1

SPRING

- lockout bracket pin, rear

4шт.

19a

62006C1

SPRING

- lockout bracket pin, front

4шт.

20

62005C1

PIN

- lockout bracket

4шт.

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch

8шт.

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

8шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

8шт.

21

62013C1

EXTENSION

- cylinder

4шт.

80753

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

8шт.

22

62003C2

PIN

- pivot, wing

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

8шт.

23

62004C1

BRACKET

- lockout

4шт.

24

62016C1

TUBE,1.062" ID, 1.375" OD, 2.8" Length

- filler, cylinder extension

4шт.

23170R1

HEADED PIN,1/2" x 2 3/8"

PIN - clevis, 1/2 x 2-3/8 inch

4шт.

432-1216

COTTER PIN,3/16" x 1"

4шт.

25

100853C1

STAND

BRACKET - wing support

4шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

- hex, 1/2 NC x 2-3/4 inch

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

26

61969C1

BAR

PLATE - adjusting

4шт.

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch

4шт.

230-42112

LOCK NUT,3/4"-10, GA

NUT - hex, self-locking, 3/4 inch NC

4шт.
