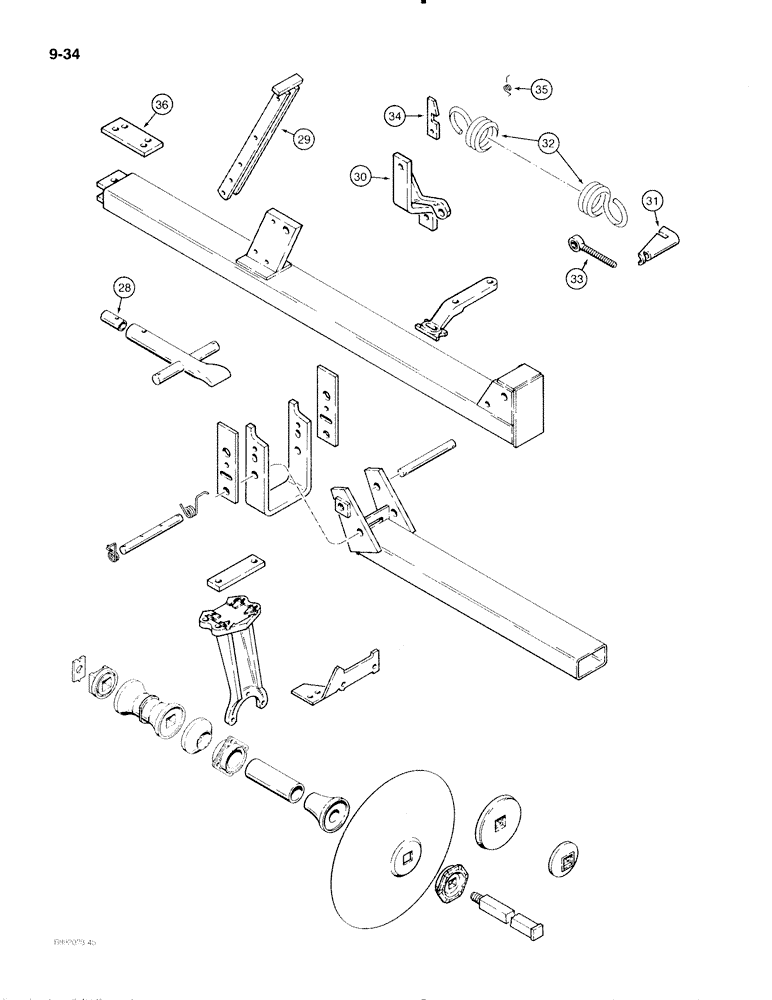

Запчасти Case IH 475 (9-34) - DISKS AND GANGS, USED WITH FOLDING FRAME, 1-1/8 INCH DIAMETER SQUARE ARBOR BOLT (09) - CHASSIS/ATTACHMENTS

28

62016C1

TUBE,1.062" ID, 1.375" OD, 2.8" Length

- filler, cylinder extension

4шт.

23170R1

HEADED PIN,1/2" x 2 3/8"

PIN - 1/2 x 2-3/8 inch, tube retaining

4шт.

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

4шт.

29

100853C1

STAND

BRACKET - wing support

4шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

- hex, 1/2 NC x 2-3/4 inch

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

30

61988C1

BRACKET

- wing lift, short, left-hand (Disk Harrow coded G, H and L)

2шт.

30

61989C1

BRACKET

- wing lift, short, right-hand (Disk Harrow coded G, H and L)

2шт.

30

61984C1

BRACKET

- wing lift, long, left-hand (Disk Harrow coded J, K, M and N)

2шт.

30

61985C1

BRACKET

- wing lift, long, right-hand (Disk Harrow coded J, K, M and N)

2шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

4шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

31

468619R2

ANCHOR

- spring

4шт.

32

61991C1

SPRING

- latch, short (Disk Harrow coded G, H and L)

4шт.

33

481502R1

SPRING

- latch, long (Disk Harrow coded J, K, M and N)

4шт.

33

527200R1

EYEBOLT,Eye, 3/4" - 10 x 6"

- anchor retaining

4шт.

486788R1

WASHER

- flat, special

4шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

8шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

- hex, 1/2 NC x 1-1/2 inch

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

34

100859C1

LATCH

- wing lift

4шт.

35

100860C1

SPRING

- latch

4шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

- hex, 1/2 NC x 2-3/4 inch

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

36

61969C1

BAR

PLATE - adjusting, wing

4шт.

113-714

BOLT,Hex, 3/4" - 10 x 5", Gr 5

4шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex, self-locking, 3/4 inch NC

4шт.
