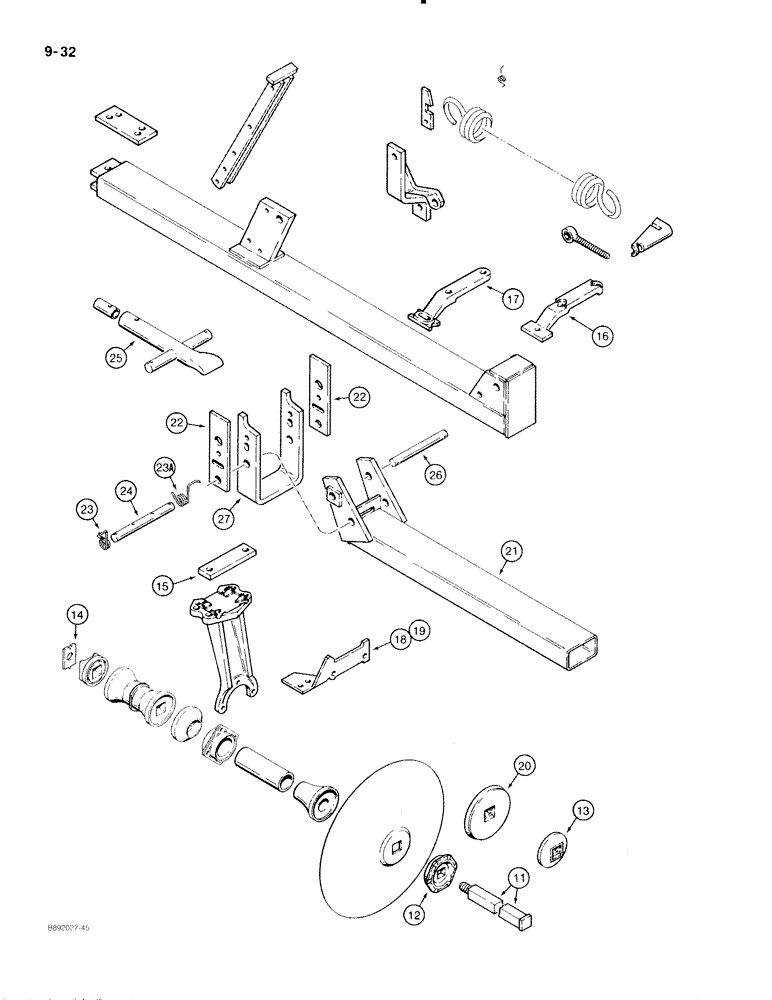

Запчасти Case IH 475 (9-32) - DISKS AND GANGS, USED WITH FOLDING FRAME, 1-1/8 INCH DIAMETER SQUARE ARBOR BOLT (09) - CHASSIS/ATTACHMENTS

11

REF

INSTRUCTION

BOLT - arbor, see Figure 9-40 for correct arbor bolt

4шт.

131049

HYD CONNECTOR

- lock, 1-1/8 inch

4шт.

220094

NUT,1 1/8"-7, G5

- hex, 1-1/8 inch NC

4шт.

12

100696C1

WASHER

- special, arbor bolt, rear gang

2шт.

13

P4165A

WASHER

- bumper, front gangs

2шт.

14

489292R1

SUPPORT ASSY.

LOCK - arbor bolt

4шт.

15

112448C2

BAR

PLATE - mounting, 1 used per bearing support, if used

1шт.

16

129616C1

BRACKET

- scraper angle, 1 used per bearing support, if used

1шт.

17

139583C5

SUPPORT

- scraper angle, 1 used per bearing support, if used

1шт.

18

112917C1

BRACKET - scraper angle, left-hand, 1 used per bearing support, if used

1шт.

18

112918C1

BRACKET

- scraper angle, right-hand, 1 used per bearing support, if used

1шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2 used per support, if used Hex, 5/8"-11 x 1 1/2", G5, Full Thd

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC, 2 used per support, if used

1шт.

18573R1

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 1 1/2", Gr 2

BOLT - carriage, 5/8 NC x 1-1/2 inch

1шт.

608595R1

NUT

- hex, self-locking, 5/8 inch NC

1шт.

19

121207C1

SUPPORT

BRACKET - bearing support, 1 used per support, if used

1шт.

18720R1

SCREW,Short NK, 5/8"-11 x 2", G2

BOLT - carriage, 5/8 NC x 1-3/4 inch

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

425-1010

NUT,5/8"-11, G5

If used 5/8"-11, G5

2шт.

20

468584R2

SQ HOLE WASHER

- bumper

2шт.

21

61996C1

BAR

WING - folding (Disk Harrow coded G, H and L)

4шт.

21

62001C1

BAR

WING - folding (Disk Harrow coded J, K, M and N)

4шт.

22

62008C1

BAR

- lockout, 4 used with manual folding units, 8 used with hydraulic folding units

4-8шт.

23

62007C1

SPRING

- lockout bracket pin, rear

4шт.

23a

62006C1

SPRING

- lockout bracket pin, front

4шт.

24

62005C1

PIN

- lockout bracket

4шт.

591715R1

WASHER

- flat, 1-1/32 x 1-1/2 x 3/64 inch

8шт.

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

8шт.

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

8шт.

25

62013C1

EXTENSION

- cylinder

4шт.

80753

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

8шт.

26

62003C2

PIN

- pivot, wing

4шт.

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

8шт.

27

62004C1

BRACKET

- lockout

4шт.

FOOTNOTE

1шт.
