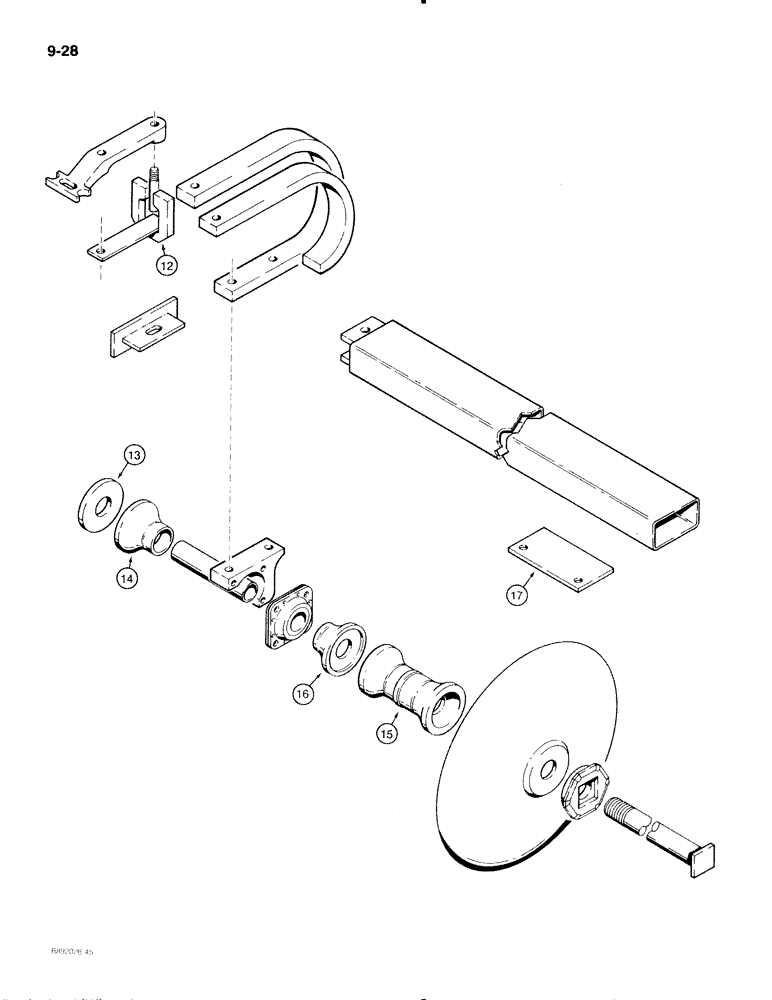

Запчасти Case IH 475 (9-28) - DISKS AND GANGS, SPRING CUSHION, USED WITH NON-FOLDING FRAME, 1-1/2 INCH DIAMETER ROUND ARBOR BOLT (09) - CHASSIS/ATTACHMENTS

12

1263635C1

BOLT

RETAINER - support

6шт.

12

1978953C1

BOLT

RETAINER - support, front, inner

2шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex, self-locking, two-way, 3/4 inch NC

8шт.

13

139773C1

WASHER

WASHER - special, end

6шт.

14

101190C1

SPOOL

- bearing, 3 inch long

8шт.

15

1263636C1

SPOOL

- bearing, 7-1/2 inch spacing

32шт.

15

101191C1

SPOOL

- bearing, 9 inch spacing

24шт.

16

1263631C1

SPOOL

-7-1/2 inch spacing (Disck Harrow coded A) (Disk Harrow coded D)

8шт.

16

139918C1

SPACER

-SPOOL - 9 inch spacing (DiskHarrow coded B) (Disk Harrow coded D)

8шт.

17

61969C1

BAR

PLATE - adjusting

4шт.

113-714

BOLT,Hex, 3/4" - 10 x 5", Gr 5

4шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex, self-locking, two-way, 3/4 inch NC

4шт.
