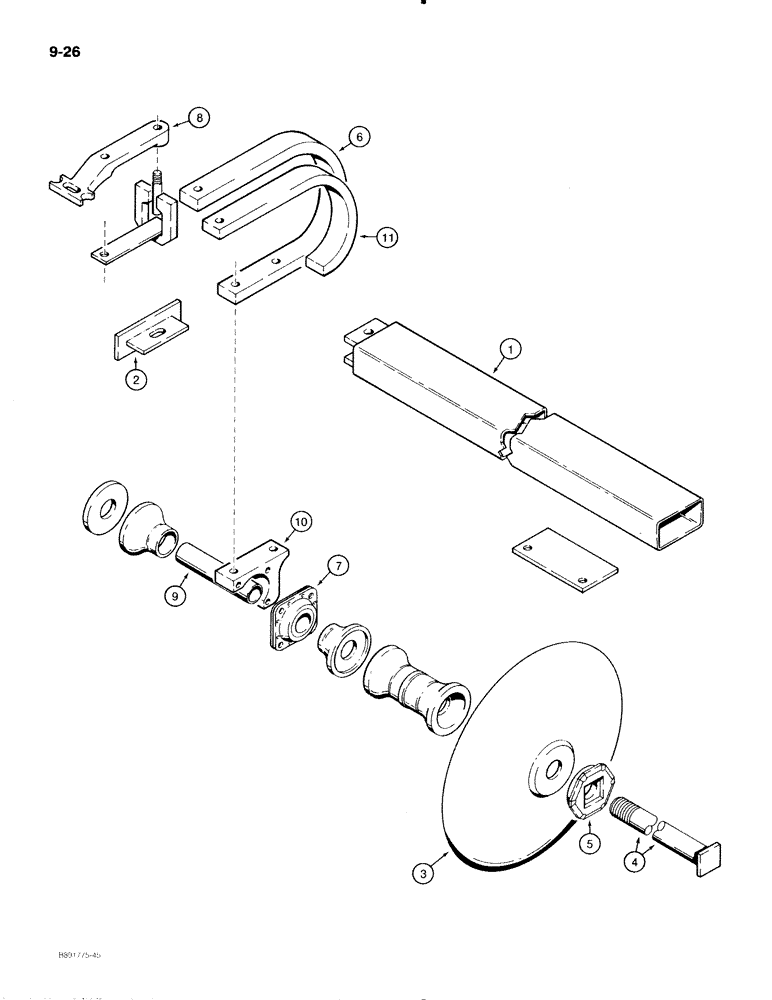

Запчасти Case IH 475 (9-26) - DISKS AND GANGS, SPRING CUSHION, USED WITH NON-FOLDING FRAME, 1-1/2 INCH DIAMETER ROUND ARBOR BOLT (09) - CHASSIS/ATTACHMENTS

1

129936C2

TUBE,1626 mm Length

FRAME - gang, 64 inch long (Disk Harrow coded A and B)

1шт.

1

129937C1

TUBE

FRAME - gang, 68 inch long (Disk Harrow coded A and B)

1шт.

1

129938C2

TUBE,1965 mm Length

FRAME - gang, 77 inch long (Disk Harrow coded C and D)

1шт.

1

129939C1

TUBE,2075 mm Length

FRAME - gang, 82 inch long (Disk Harrow coded C and D)

1шт.

2

1263626C2

ANGLE

BRACKET - stiffener

2шт.

3

31230R1

DISC

DISK - solid, 18 inch (455 mm) OD x 3/16 inch (5 mm) thick

1шт.

3

30999R1

DISC

DISK - solid, 20 inch (510 mm) OD x 3/16 inch (5 mm) thick

1шт.

3

31232R1

DISK HARROW

DISK - solid, 20 inch (510 mm) OD x 1/4 inch (6.5 mm) thick

1шт.

3

31196R1

DISK HARROW

DISK - notched, 20 inch (510 mm) OD x 3/16 inch (5 mm) thick, not shown

1шт.

3

31000R1

DISC

DISK - solid, 22 inch (560 mm) OD x 3/16 inch (5 mm) thick

1шт.

3

31217R1

DISK HARROW

DISK - solid, 22 inch (560 mm) OD x 1/4 inch (6.5 mm) thick

1шт.

3

31197R1

DISK HARROW

DISK - notched, 22 inch (560 mm) OD x 3/16 inch (5 mm) thick, not shown

1шт.

4

REF

INSTRUCTION

BOLT - arbor, see Figure 9-40 for correct arbor bolt

4шт.

25-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - hex slotted, 1-1/2 inch NC

4шт.

103426

ELBOW,1/4" x 3"

Split (Cotter), 1/4" x 3"

4шт.

1284383C1

WASHER

- arbor bolt (Disk Harrow coded B, C and F)

4шт.

5

139927C1

WASHER

WASHER - special, arbor bolt

2шт.

6

147763C1

SPRING

SUPPORT - bearing, spring cushion, left-hand

4шт.

6

147764C1

SPRING

SUPPORT - bearing, spring cushion, right-hand

4шт.

7

ST491A

BALL BEARING,45mm ID

BEARING - ball

8шт.

7

ST491A-IMPGV

BEARING

Value, 1-3/4 In. Round Bore Bearing Assy

8шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

24шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

24шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

24шт.

8

139583C5

SUPPORT

- scraper angle

8шт.

9

112769C1

BUSHING,38.91mm ID x 44.45mm OD x 183mm L

- support, 7-1/2 inch spacing

8шт.

9

112410C1

TUBE

BUSHING - support, 9 inch spacing

8шт.

10

147873C1

SUPPORT

RETAINER - bearing, left-hand

4шт.

10

147874C1

SUPPORT

RETAINER - bearing, right-hand

4шт.

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

14шт.

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8

8шт.

11

1263531C1

SPRING

- helper, left-hand

1шт.

11

1263532C1

SPRING

- helper, right-hand

1шт.

19959R1

BOLT,Hex, 3/4" - 10 x 7", Gr 5

- hex, 3/4 NC x 7 inch

2шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

BOLT - hex, 3/4 NC x 6 inch

6шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex, self-locking, two-way, 3/4 inch NC

8шт.
